F20GMH (2023)
REMO CON ATTACHMENT

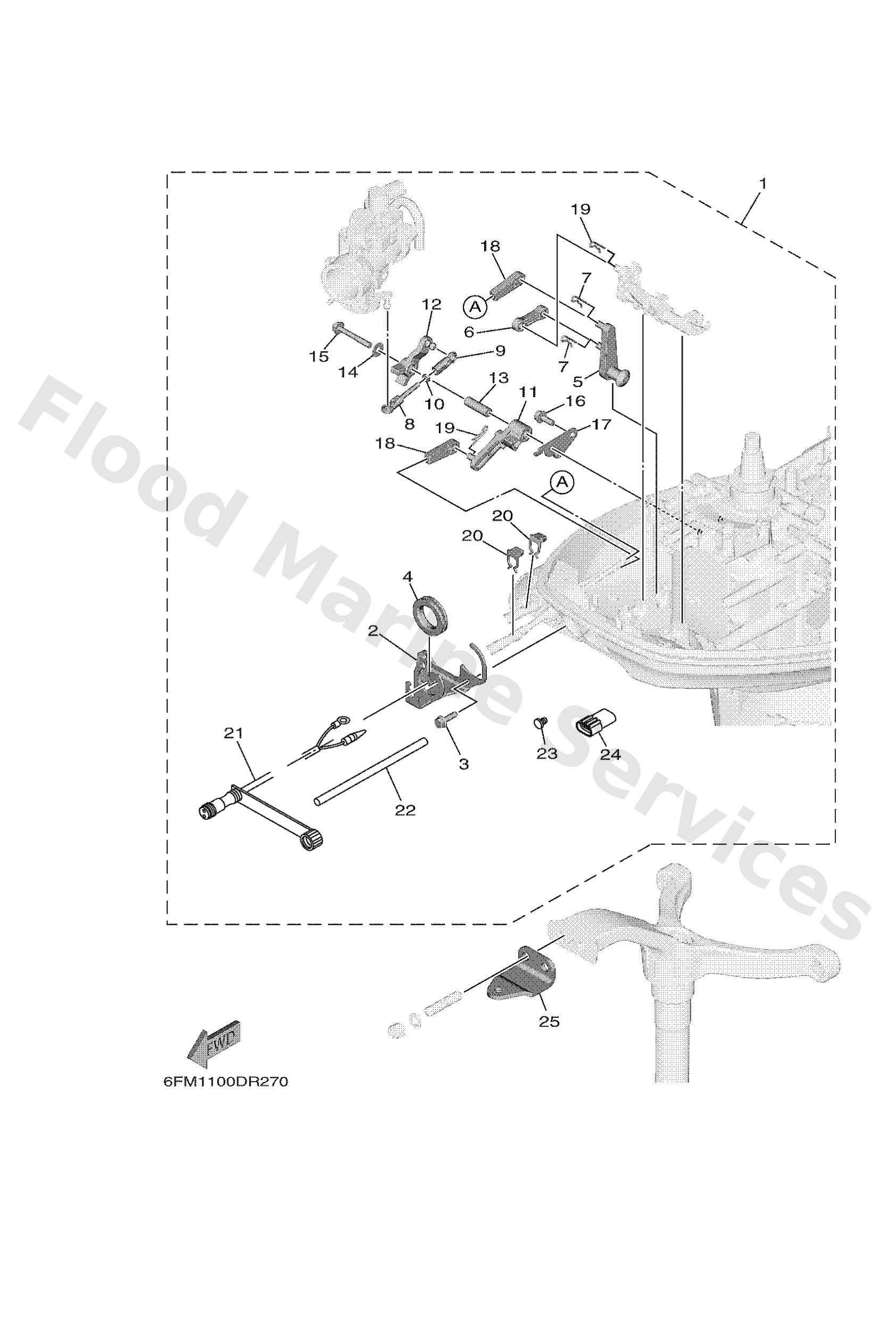

Diagram: REMO CON ATTACHMENT
Parts List
Reference
Description
Price
1
6FM4850102
AP
Remote cont. attachment assembly.
Loading…
↗
2
6FM4276110
Stopper
Loading…
↗
3
9010906316
Bolt
Loading…
↗
4
6FM4272611
Grommet
Loading…
↗
5
6FM4412500
Lever, shift rod
Loading…
↗
6
6FM4419200
Link, shift rod
Loading…
↗
7
9046818008
Clip 620436610000
Loading…
↗
8
6824123750
Joint, link 2
Loading…
↗
9
6H44123700
Joint, link
Loading…
↗
10
9538005700
Nut (656)
Loading…
↗
11
6FM4215700
Lever, throttle
Loading…
↗
12
6FM4128300
Lever, free accel.
Loading…
↗
13
9038706M59
Collar (6h3)
Loading…
↗
14
9020106M62
Washer, plate (6e5)
Loading…
↗
15
95D9506045
Bolt, flange deep recess
Loading…
↗
16
95D9506016
Bolt, flange deep recess
Loading…
↗
17
6FM1457100
Bracket, throttle
Loading…
↗
18
6FM4834400
Cable end, remote control
Loading…
↗
20
63D4853800
Clamp, cable 1
Loading…
↗
21
6D58434001
Socket cord assembly 1
Loading…
↗
22
9044609M42
Hose(6n6)
Loading…
↗
23
7038211901
Cover, lead wire
Loading…
↗
24
6FM8258200
Cap 1 (3p)
Loading…
↗
25
65W4851101
AP
Hook, steering
Loading…
↗
