Yamaha Outboard Parts - REMO CON ATTACHMENT - F8CMH (2012) | Flood Marine

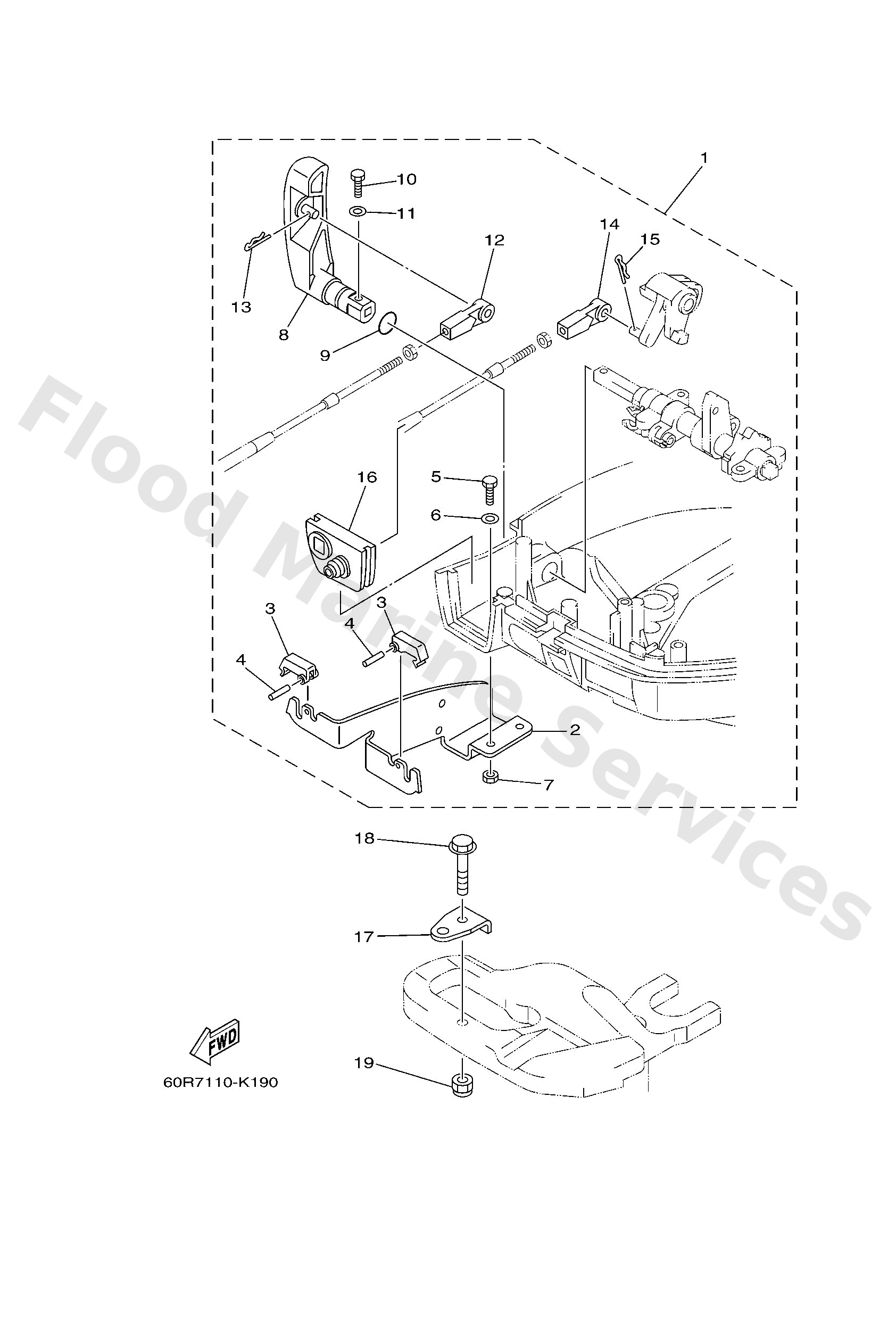

Diagram: REMO CON ATTACHMENT

Diagram

Parts List

Reference
Description
Price


1
60RG850100 AP
Remote cont. attachment assembly.
Loading…

↗
2
68T4853100
Bracket, remote control 1
Loading…

↗
3
6824853850
Clamp, cable
Loading…

↗
4
9169030012
Pin, spring
Loading…

↗
5
9709506012
Bolt(gh1)
Loading…

↗
6
9299506600
Washer, plain (646)
Loading…

↗
7
9538006600
Nut(661)
Loading…

↗
8
60RG411110
Handle, gear shift
Loading…

↗
9
9321012327
O-ring(3ld)
Loading…

↗
10
9709505016
Bolt(6a1)
Loading…

↗
11
9299505600
Washer, plain (646)
Loading…

↗
12
6634834400
Cable end, remote control
Loading…

↗
13
9046818008
Clip 620436610000
Loading…

↗
16
68T4272510
Grommet
Loading…

↗
17
63V4851101 AP
Hook, steering
Loading…

↗
18
9757508535 AP
Bolt(70w)
Loading…

↗
19
9018508057 AP
Nut, nylon (6j8)
Loading…

↗
