F9.9FE (2011)
REMO CON ATTACHMENT

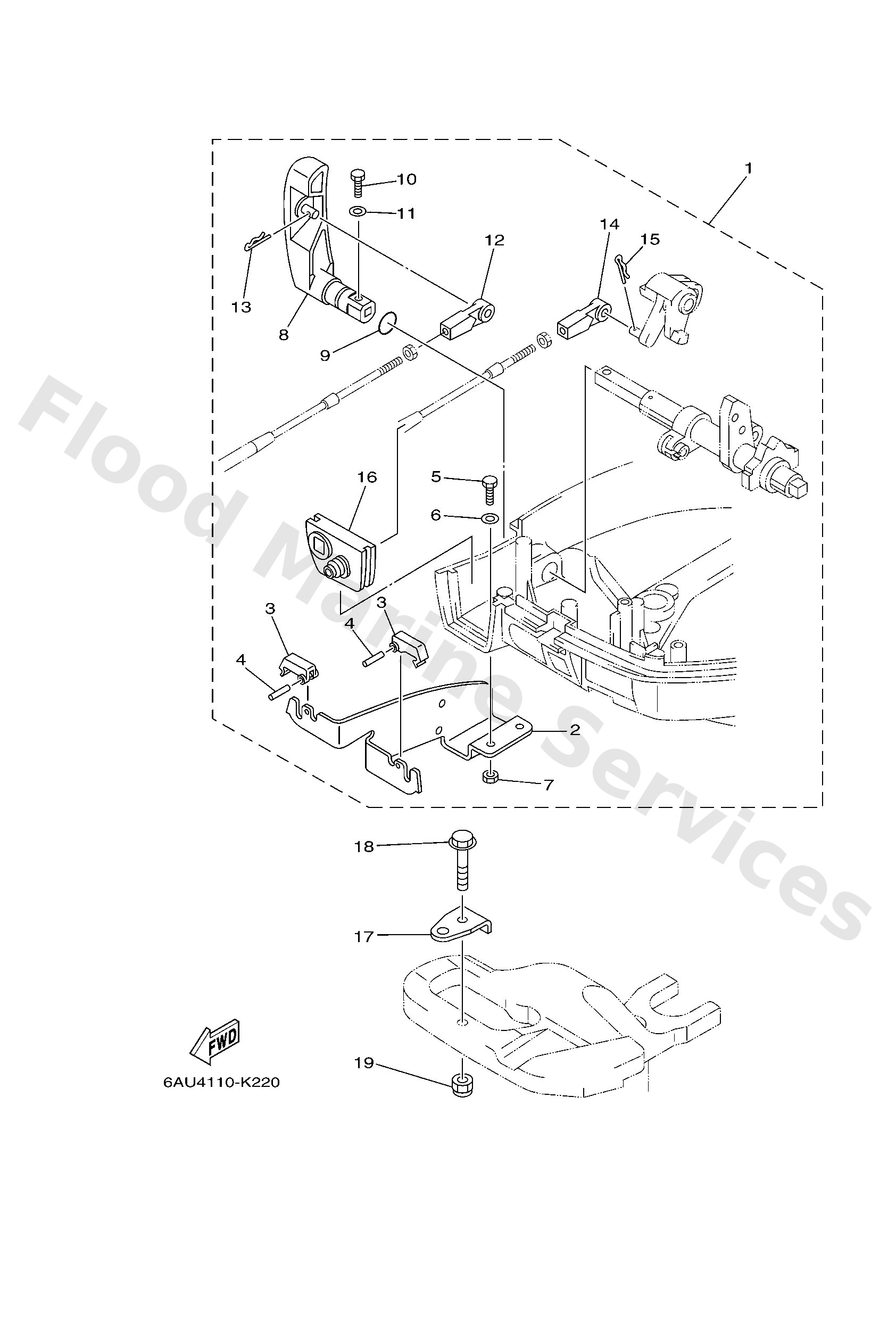

Diagram: REMO CON ATTACHMENT
Parts List
Reference
Description
Price
1
6AU4850100
AP
Remote cont. attachment assembly.
Loading…
↗
2
68T4853100
Bracket, remote control 1
Loading…
↗
3
6824853850
Clamp, cable
Loading…
↗
4
9169030012
Pin, spring
Loading…
↗
5
9709506012
Bolt(gh1)
Loading…
↗
6
9299506600
Washer, plain (646)
Loading…
↗
7
9538006600
Nut(661)
Loading…
↗
8
6AU4411110
Handle, gear shift
Loading…
↗
9
9321012327
O-ring(3ld)
Loading…
↗
10
9709505016
Bolt(6a1)
Loading…
↗
11
9299505600
Washer, plain (646)
Loading…
↗
12
6634834400
Cable end, remote control
Loading…
↗
13
9046818008
Clip 620436610000
Loading…
↗
16
68T4272510
Grommet
Loading…
↗
17
63V4851101
AP
Hook, steering
Loading…
↗
18
9757508535
AP
Bolt(70w)
Loading…
↗
19
9018508057
AP
Nut, nylon (6j8)
Loading…
↗
