Yamaha Outboard Parts - REMO CON ATTACHMENT - FT25BET (2004) | Flood Marine

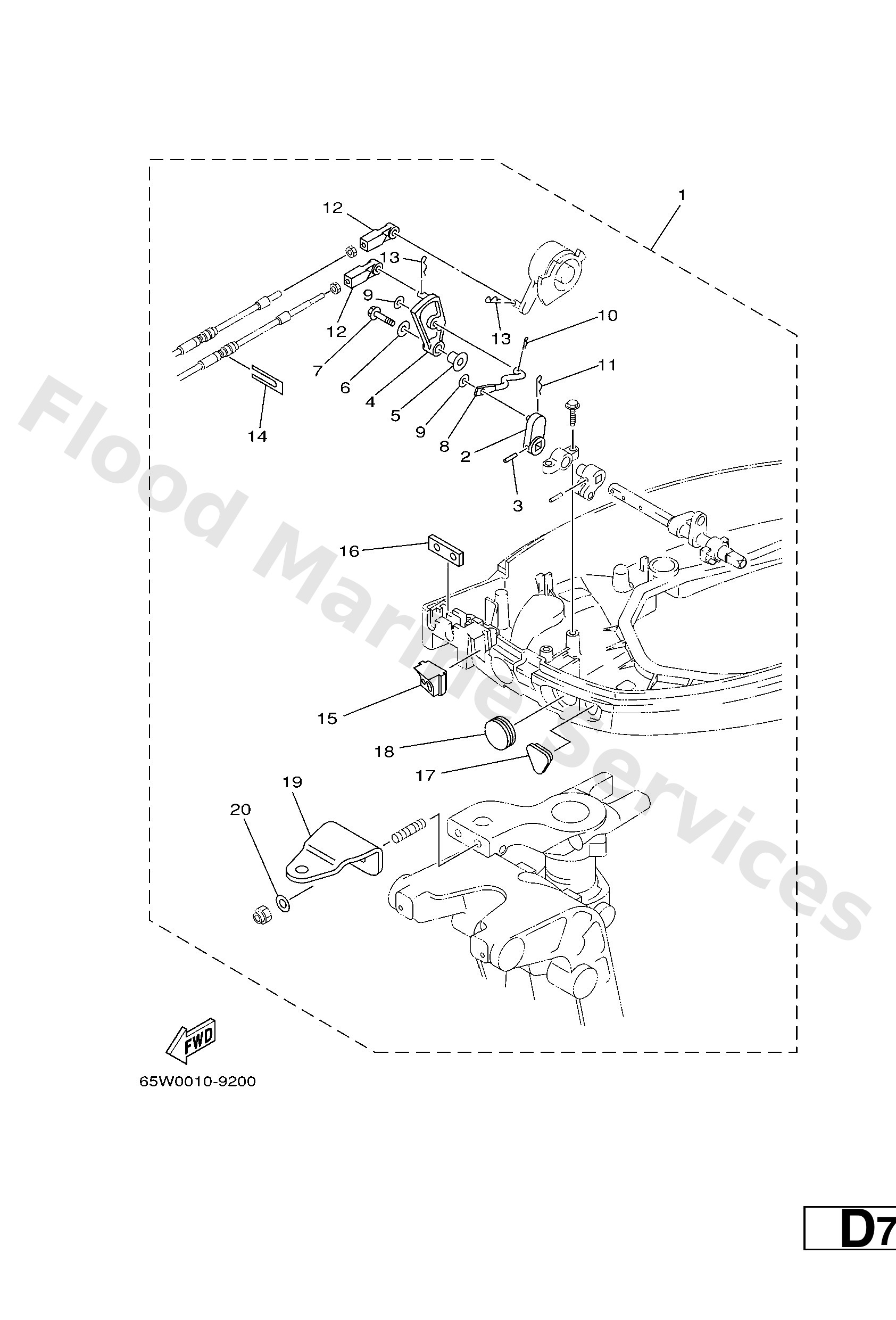

Diagram: REMO CON ATTACHMENT

Diagram

Parts List

Reference
Description
Price


1
65W4850100 AP
Remote cont. attachment assembly.
Loading…

↗
2
65W4414200
Joint
Loading…

↗
3
9025403M05
Pin, spring
Loading…

↗
4
65W4412500
Lever, shift rod
Loading…

↗
5
9038706M29
Coller (6a0)
Loading…

↗
6
9020106M31
Washer (6a0)
Loading…

↗
7
9759506525
Bolt, hexagon w/w deep recess
Loading…

↗
8
65W4419200
Joint, rod 1
Loading…

↗
9
9020105M06
Washer, plate(61u)
Loading…

↗
10
9046810005
Pin, hair 6264123500
Loading…

↗
11
9046818008
Clip 620436610000
Loading…

↗
12
6634834400
Cable end, remote control
Loading…

↗
14
6H34853800
Clamp, cable
Loading…

↗
15
65W4272521
Grommet
Loading…

↗
16
62Y4272700
Grommet
Loading…

↗
17
65W2632610
Grommet
Loading…

↗
18
65W4272610
Grommet
Loading…

↗
19
65W4851100
Hook, steering
Loading…

↗
20
9020110120
Washer, plate
Loading…

↗
