Yamaha Outboard Parts - REMO CON ATTACHMENT - FT8GMH (2017) | Flood Marine

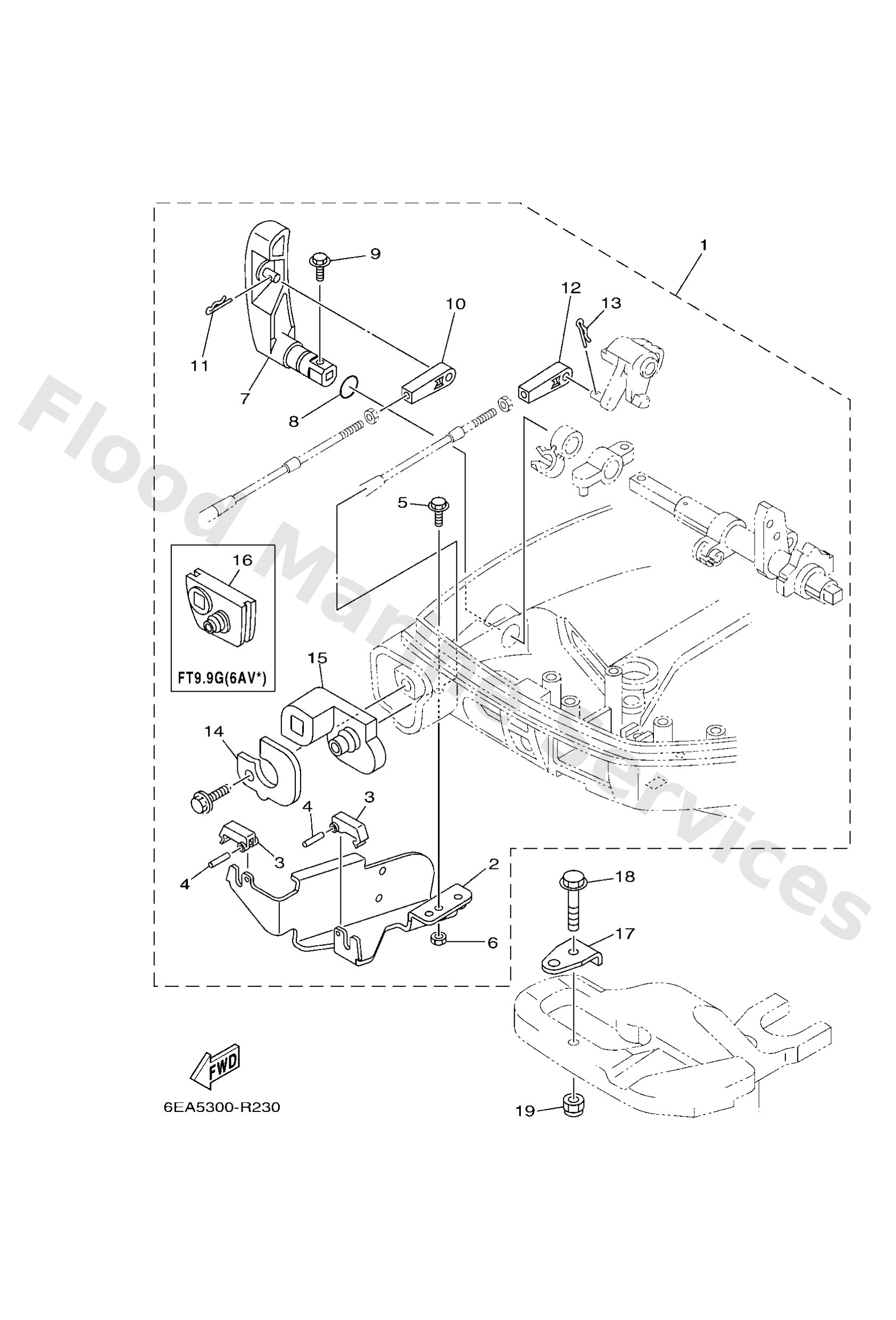

Diagram: REMO CON ATTACHMENT

Diagram

Parts List

Reference
Description
Price


1
6DR4850101 AP
Remote cont. attachment assembly.
Loading…

↗
2
68T4853101
Bracket, remote control 1
Loading…

↗
3
6824853850
Clamp, cable
Loading…

↗
4
9169030012
Pin, spring
Loading…

↗
5
9759506512
Bolt, hexagon w/w deep recess
Loading…

↗
6
9538006600
Nut(661)
Loading…

↗
7
6AU4411110
Handle, gear shift
Loading…

↗
8
9321012327
O-ring(3ld)
Loading…

↗
9
9759505516
Bolt, with washer
Loading…

↗
10
6FM4834400
Cable end, remote control
Loading…

↗
11
9046818008
Clip 620436610000
Loading…

↗
14
6DR4276110
Stopper
Loading…

↗
15
6DR4272510
Grommet
Loading…

↗
16
68T4272510
Grommet
Loading…

↗
17
63V4851101 AP
Hook, steering
Loading…

↗
18
9757508535 AP
Bolt(70w)
Loading…

↗
19
9018508057 AP
Nut, nylon (6j8)
Loading…

↗
