Rigging - Remote Control (2018)
REMO CON ATTACHMENT 1

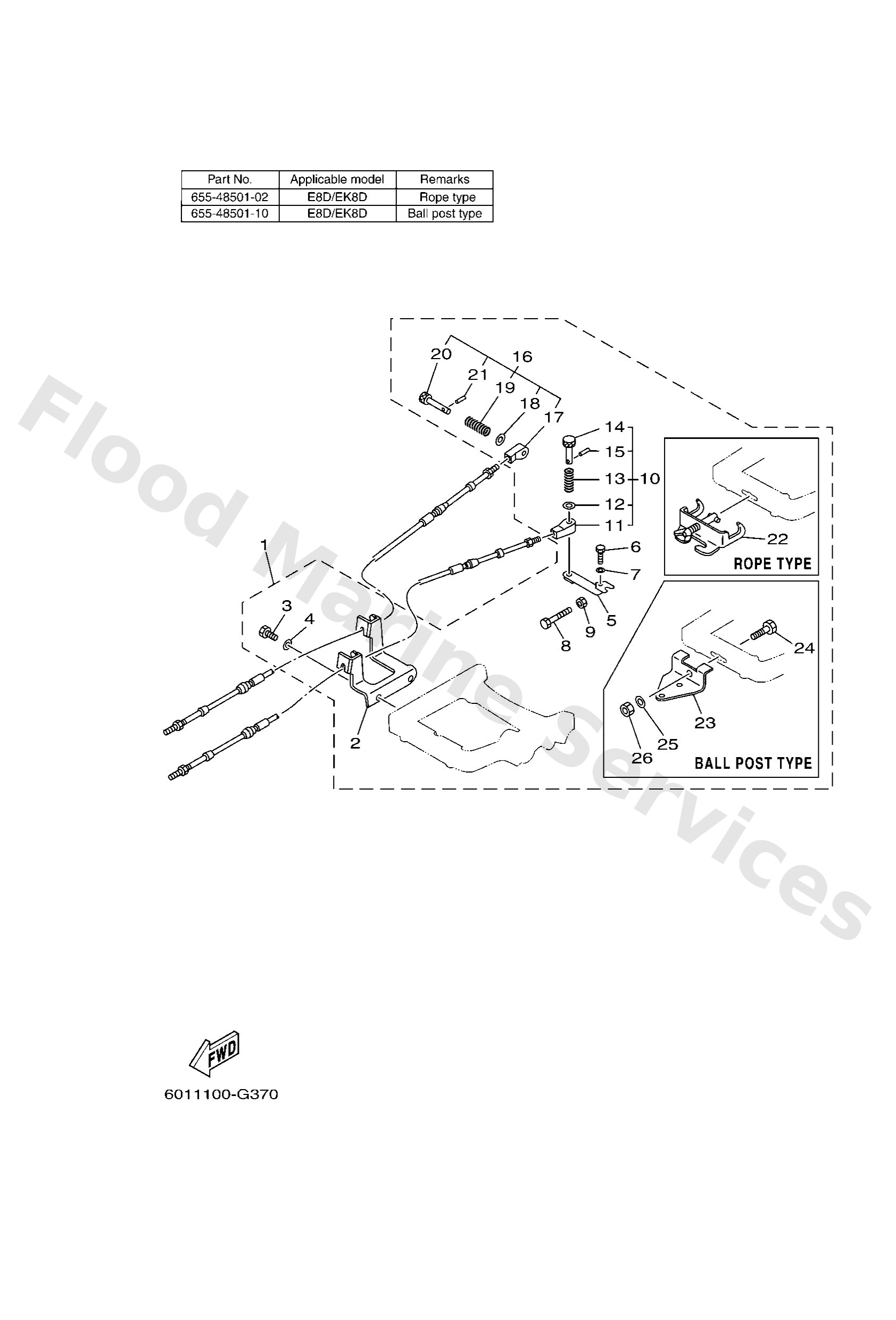

Diagram: REMO CON ATTACHMENT 1
Parts List
Reference
Description
Price
1
6554850110
UR BALL POST TYPE
Attachment assembly
Loading…
↗
1
6554850102
UR ROPE TYPE
Remote Cont. Attachment assembly.
Loading…
↗
2
6554853151
Bracket, remote control 1
Loading…
↗
3
9709506018
Bolt (fj0)
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
6474853450
Throttle lever, control
Loading…
↗
6
9709505020
Bolt, hexagon
Loading…
↗
7
9299505600
Washer, plain (646)
Loading…
↗
8
9709006045
Bolt
Loading…
↗
9
9538006600
Nut(661)
Loading…
↗
10
6474833050
Cable end assembly (sfift)
Loading…
↗
11
6174834690
Cable end, remote control
Loading…
↗
12
9299008600
Washer, plain (663)
Loading…
↗
13
9050110071
Spring 6044833200
Loading…
↗
14
6174833191
Hook, cable
Loading…
↗
15
9169030012
Pin, spring
Loading…
↗
16
6474834050
Cable end assembly (throttle)
Loading…
↗
17
6474834650
Cable end, remote control
Loading…
↗
19
9050110264
Spring 6174833290
Loading…
↗
20
6174836191
Hook, cable
Loading…
↗
22
7004851012
UR ROPE TYPE
Hook steering assembly
Loading…
↗
23
6764851110
UR BALL POST TYPE
Hook, steering
Loading…
↗
24
9707510040
Bolt, hexagon deep recess
Loading…
↗
25
9299010600
Washer, plate
Loading…
↗
26
9018510027
Nut, self-locking
Loading…
↗
