Rigging - Remote Control (2025)
REMO CON ATTACHMENT 1

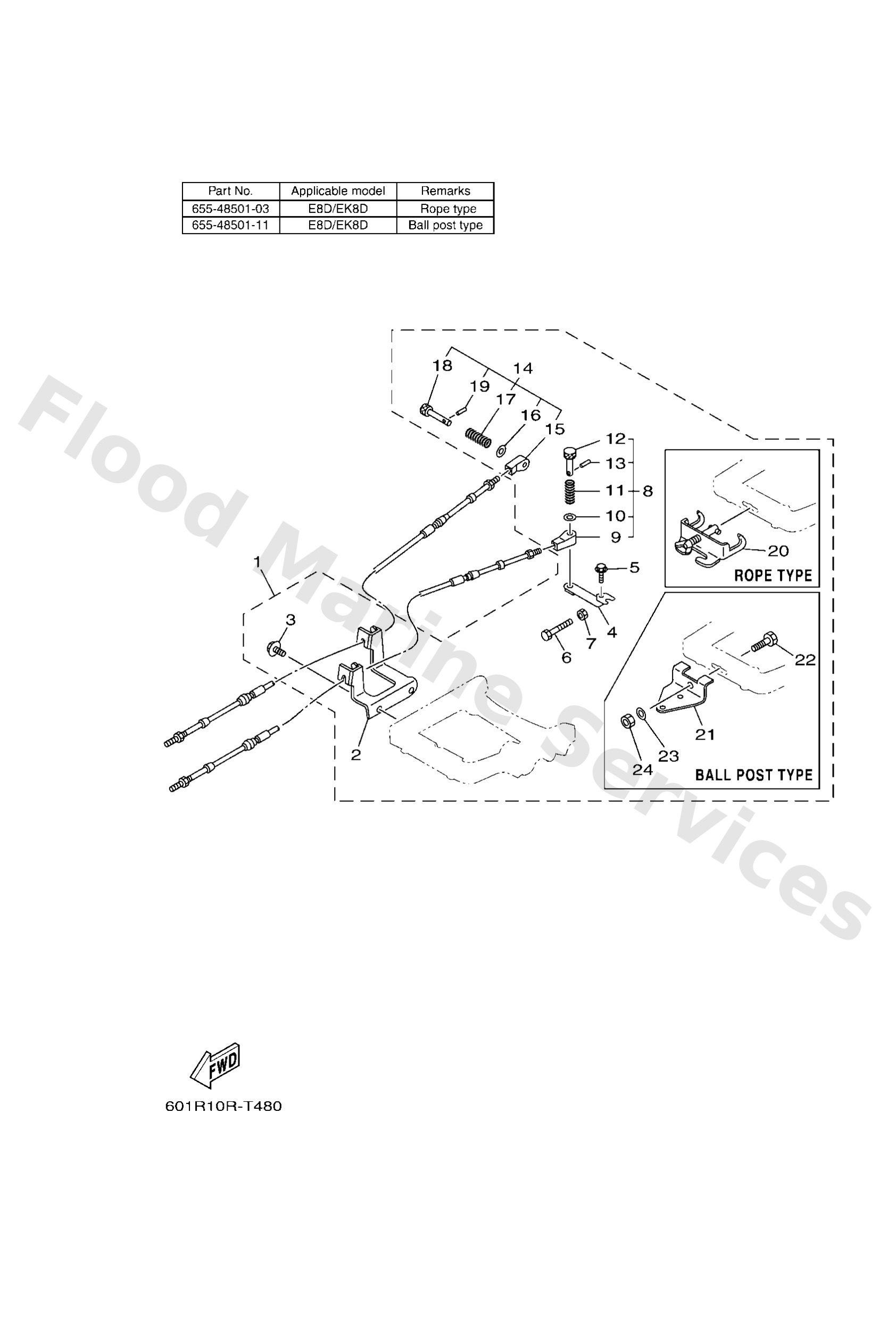

Diagram: REMO CON ATTACHMENT 1
Parts List
Reference
Description
Price
1
6554850111
UR BALL POST TYPE
Remote Cont. Attachment assembly.
Loading…
↗
1
6554850103
UR ROPE TYPE
Remote Cont. Attachment assembly.
Loading…
↗
2
6554853151
Bracket, remote control 1
Loading…
↗
3
97E9506518
Bolt, hexagon w/w deep recess
Loading…
↗
4
6474853450
Throttle lever, control
Loading…
↗
5
9759505520
Bolt, With Washer
Loading…
↗
6
97D9506045
Bolt, hexagon deep recess
Loading…
↗
7
9538006600
Nut(661)
Loading…
↗
8
6474833050
Cable end assembly (sfift)
Loading…
↗
9
6174834690
Cable end, remote control
Loading…
↗
10
9299008600
Washer, plain (663)
Loading…
↗
11
9050110071
Spring 6044833200
Loading…
↗
12
6174833191
Hook, cable
Loading…
↗
13
9169030012
Pin, spring
Loading…
↗
14
6474834050
Cable end assembly (throttle)
Loading…
↗
15
6474834650
Cable end, remote control
Loading…
↗
17
9050110264
Spring 6174833290
Loading…
↗
18
6174836191
Hook, cable
Loading…
↗
20
7004851012
UR ROPE TYPE
Hook steering assembly
Loading…
↗
21
6764851110
UR BALL POST TYPE
Hook, steering
Loading…
↗
22
97D7510040
Bolt, hexagon deep recess
Loading…
↗
23
9299010600
Washer, plate
Loading…
↗
24
9018510027
Nut, self-locking
Loading…
↗
