Rigging - Remote Control (2016)
REMO CON ATTACHMENT 4

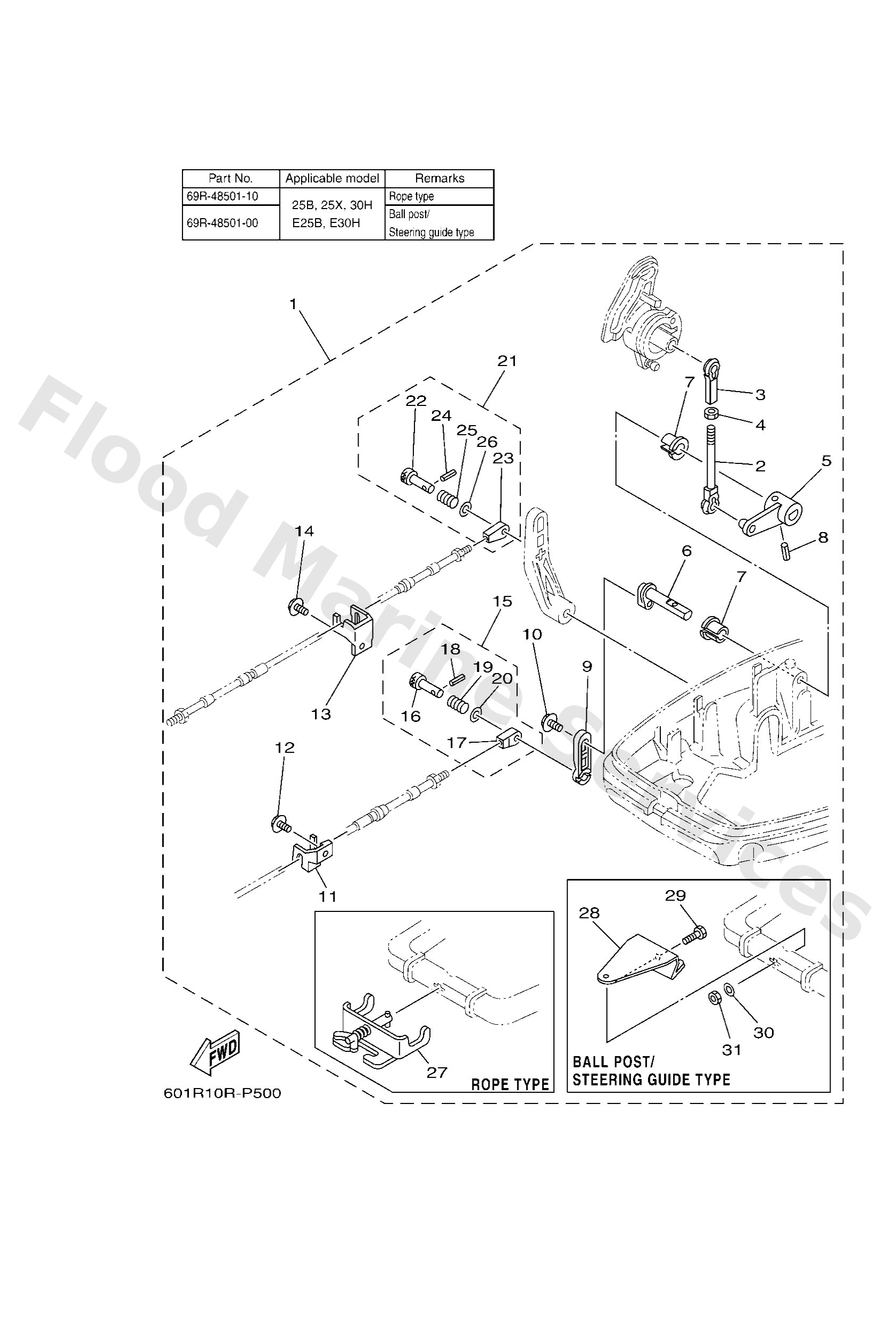

Diagram: REMO CON ATTACHMENT 4
Parts List
Reference
Description
Price
1
69R4850100
UR
Remote cont. attachment assembly.
Loading…
↗
1
69R4850110
UR ROPE TYPE
Remote cont. attachment assembly.
Loading…
↗
2
6824123801
Joint, link
Loading…
↗
3
6824123700
Joint, link 2
Loading…
↗
4
9538005600
Nut, hexagon (663)
Loading…
↗
5
69S4215710
Lever, throttle
Loading…
↗
6
65642153104D
Shaft, throttle control
Loading…
↗
7
9038610009
Bushing 6484418600
Loading…
↗
8
9169040018
Pin spring(664)
Loading…
↗
9
64848534504D
Throttle lever, control
Loading…
↗
10
9759506512
Bolt, hexagon w/w deep recess
Loading…
↗
11
6894853251
Bracket, remote control 2
Loading…
↗
12
9759506516
Bolt, with washer(6r6)
Loading…
↗
13
6894853151
Bracket, remote control 1
Loading…
↗
15
6484834050
Cable end assembly
Loading…
↗
16
6174836191
Hook, cable
Loading…
↗
17
6174834690
Cable end, remote control
Loading…
↗
18
9169030012
Pin, spring
Loading…
↗
19
9050110264
Spring 6174833290
Loading…
↗
20
9299008600
Washer, plain (663)
Loading…
↗
21
6484833050
Cable end assembly
Loading…
↗
22
6174833191
Hook, cable
Loading…
↗
23
6484834650
Cable,end remote control 3
Loading…
↗
25
9050110071
Spring 6044833200
Loading…
↗
27
7004851012
ROPE TYPE
Hook steering assembly
Loading…
↗
28
6894851102
Hook, steering
Loading…
↗
29
9707510040
Bolt, hexagon deep recess
Loading…
↗
30
9299510600
Washer, plate
Loading…
↗
31
9018510027
Nut, self-locking
Loading…
↗
