Yamaha Outboard Parts - REMO CON ATTACHMENT 4 - Rigging - Remote Control (2025) | Flood Marine

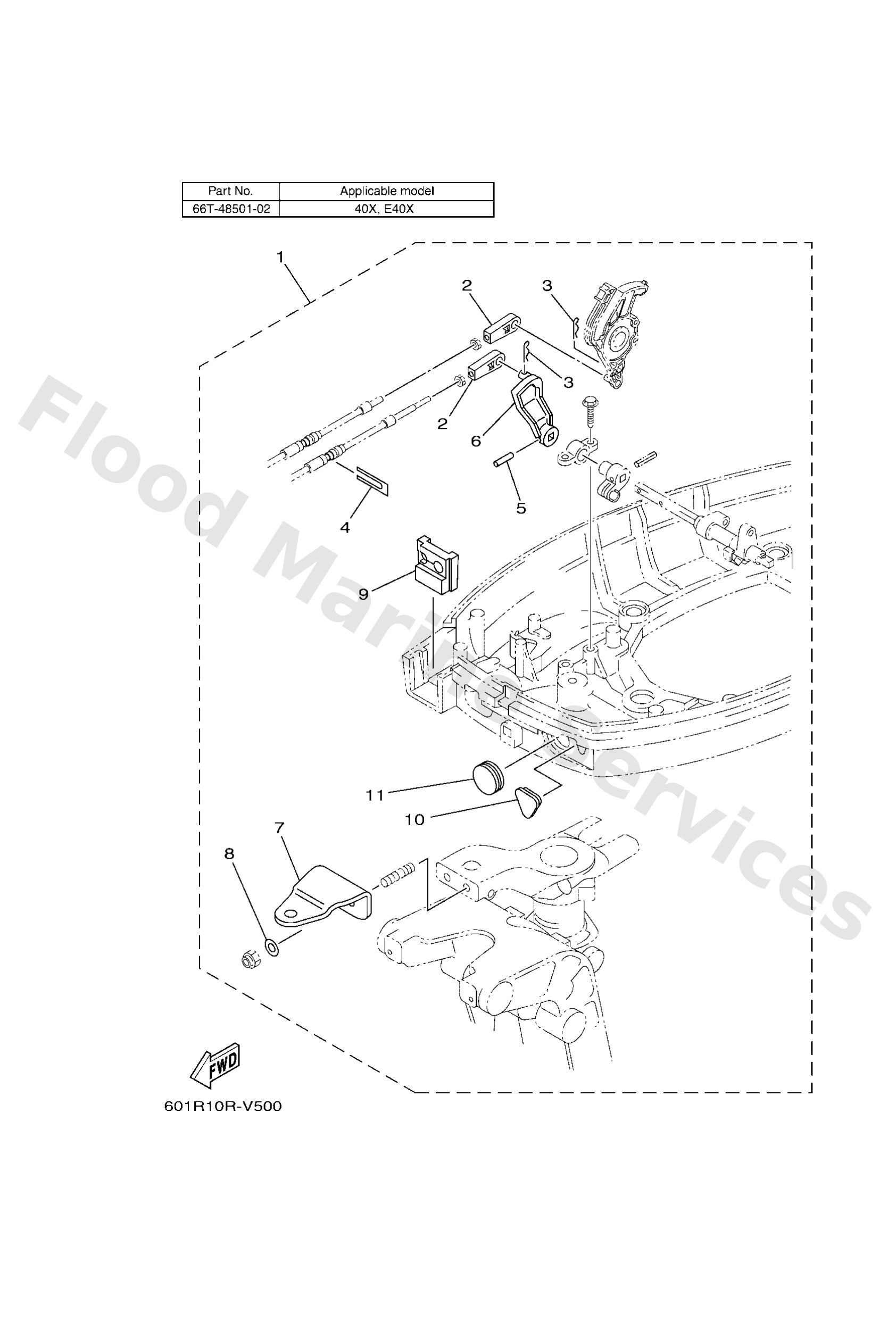

Diagram: REMO CON ATTACHMENT 4

Diagram

Parts List

Reference
Description
Price


1
66T4850102
Remote cont. attachment assembly.
Loading…

↗
2
6FM4834400
Cable end, remote control
Loading…

↗
3
9046818008
Clip 620436610000
Loading…

↗
4
6H34853800
Clamp, cable
Loading…

↗
5
9025403M05
Pin, spring
Loading…

↗
6
66T4412501
Lever, shift rod
Loading…

↗
7
65W4851101
Hook, steering
Loading…

↗
8
9020110120
Washer, plate
Loading…

↗
9
66T4272531
Grommet
Loading…

↗
10
65W2632611
Grommet
Loading…

↗
11
65W4272611
Grommet
Loading…

↗
