Rigging - Remote Control (2025)
REMO CON ATTACHMENT 5

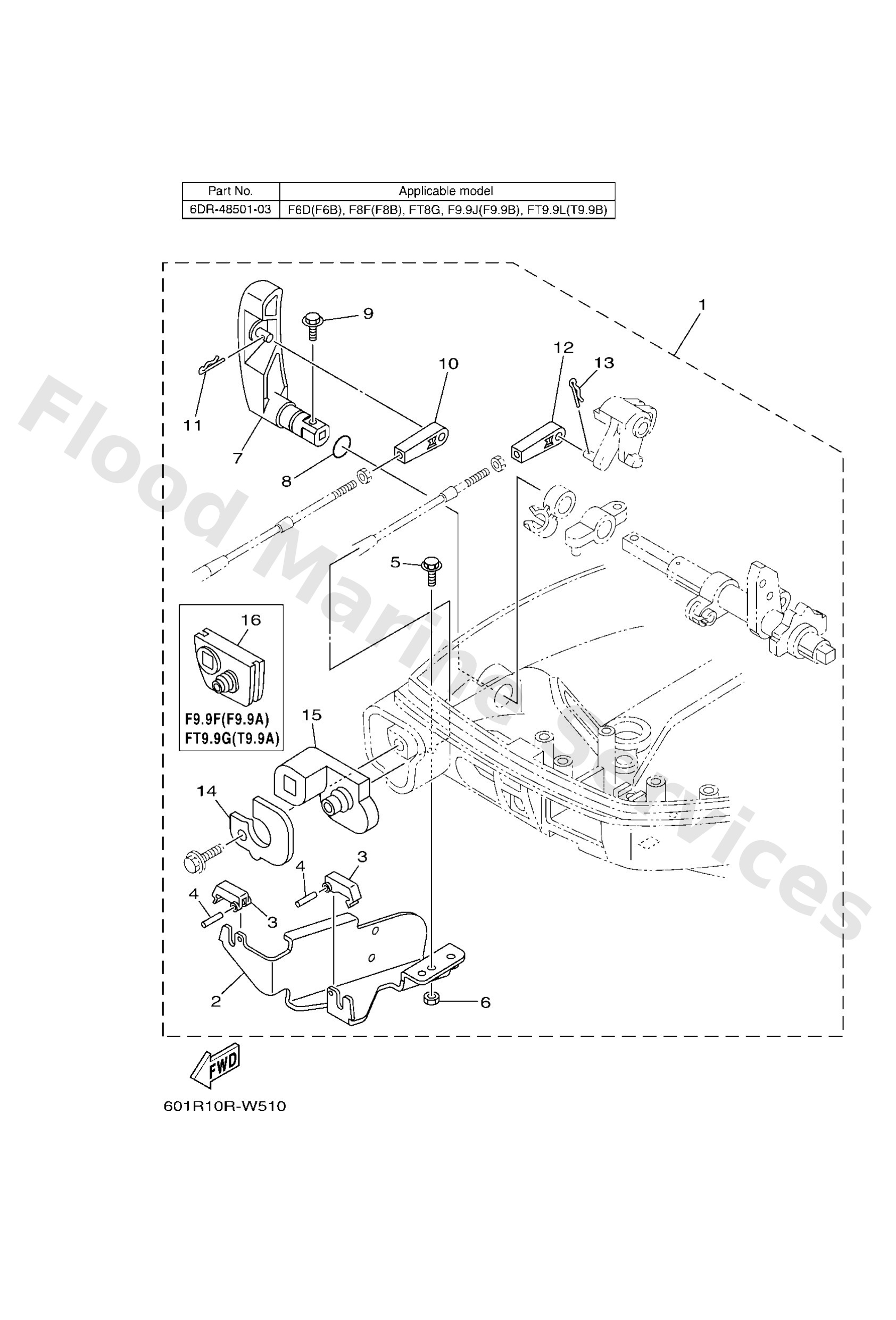

Diagram: REMO CON ATTACHMENT 5
Parts List
Reference
Description
Price
1
6DR4850103
Remote cont. attachment assembly.
Loading…
↗
2
68T4853101
Bracket, remote control 1
Loading…
↗
3
6824853850
Clamp, cable
Loading…
↗
4
9169030012
Pin, spring
Loading…
↗
5
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
6
9538006600
Nut(661)
Loading…
↗
7
6AU4411110
Handle, gear shift
Loading…
↗
8
9321012327
O-ring(3ld)
Loading…
↗
9
9759505516
Bolt, with washer
Loading…
↗
10
6FM4834400
Cable end, remote control
Loading…
↗
11
9046818008
Clip 620436610000
Loading…
↗
14
6DR4276110
Stopper
Loading…
↗
15
6DR4272511
Grommet
Loading…
↗
16
68T4272511
Grommet
Loading…
↗
