Rigging - Remote Control (2018)
REMO CON ATTACHMENT 7

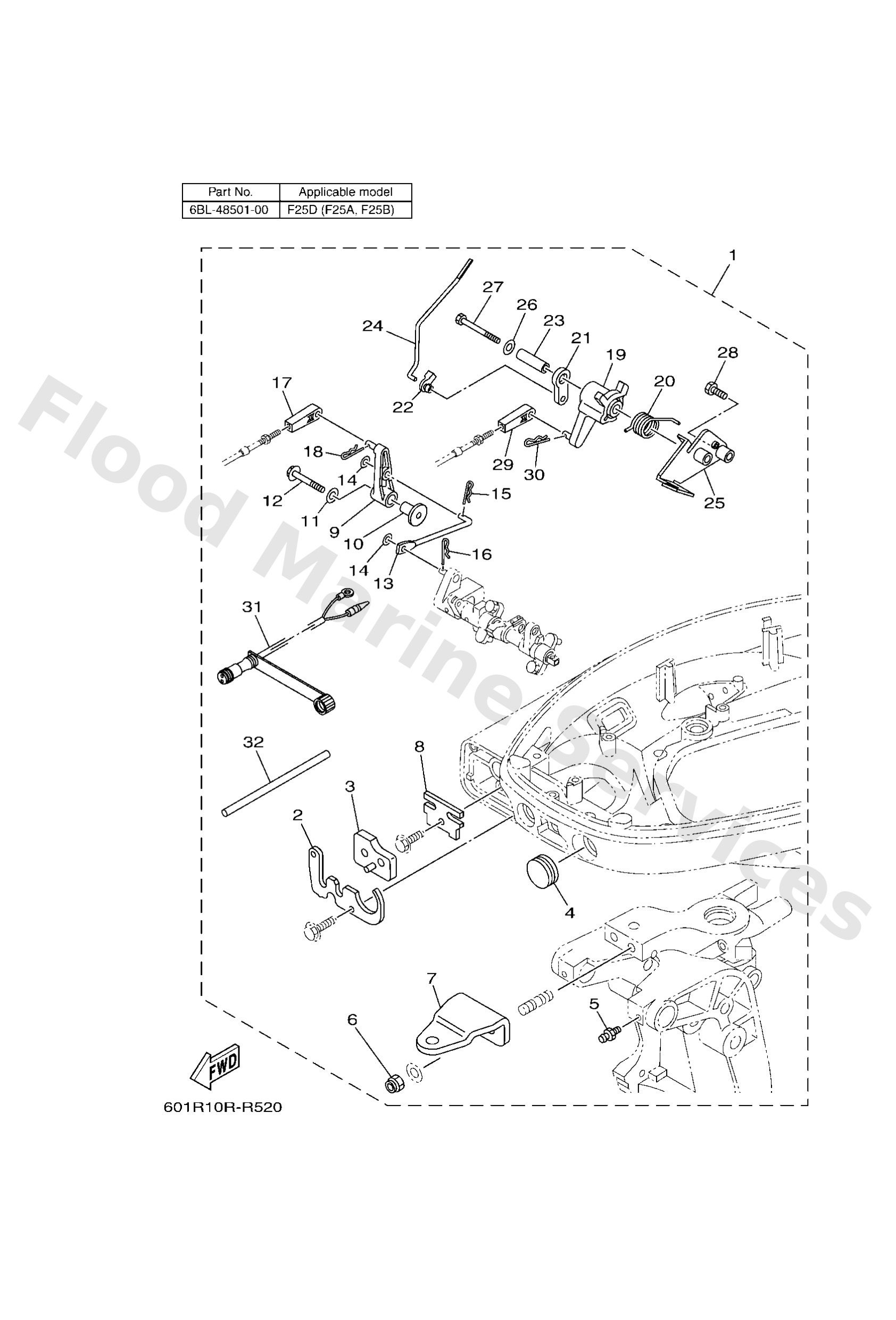

Diagram: REMO CON ATTACHMENT 7
Parts List
Reference
Description
Price
1
6BL4850100
Remote cont. attachment assembly.
Loading…
↗
2
6BL4276100
Stopper
Loading…
↗
3
6BL4272700
Grommet
Loading…
↗
4
65W4272610
Grommet
Loading…
↗
5
9370006M03
Nipple, grease(6a1)
Loading…
↗
6
9018510027
Nut, self-locking
Loading…
↗
7
65W4851101
Hook, steering
Loading…
↗
8
6BL4853800
Clamp, cable 1
Loading…
↗
9
6BL4412500
Lever, shift rod
Loading…
↗
10
9038706M86
Collar
Loading…
↗
11
9020106M31
Washer (6a0)
Loading…
↗
12
9759506535
Bolt(j52)
Loading…
↗
13
6BL4419200
Link, shift rod
Loading…
↗
14
9020105M06
Washer, plate(61u)
Loading…
↗
15
9046810005
Pin, hair 6264123500
Loading…
↗
16
9046818001
Clip
Loading…
↗
17
6FM4834400
Cable end, remote control
Loading…
↗
18
9046818008
Clip 620436610000
Loading…
↗
19
6BL4163800
Pulley
Loading…
↗
20
9050820040
Spring, torsion
Loading…
↗
21
65W4128300
Lever, free accel.
Loading…
↗
22
6J84126200
Joint, choke lever
Loading…
↗
23
9038706139
Collar
Loading…
↗
24
6BL4121100
Link, accel.
Loading…
↗
25
6BL1457110
Bracket, throttle
Loading…
↗
27
9709506065
Bolt(jn5)
Loading…
↗
28
9709506025
Bolt
Loading…
↗
31
6D58434000
Socket cord assembly 1
Loading…
↗
32
9044609M42
Hose(6n6)
Loading…
↗
