225GETO (1999)
REMOTE

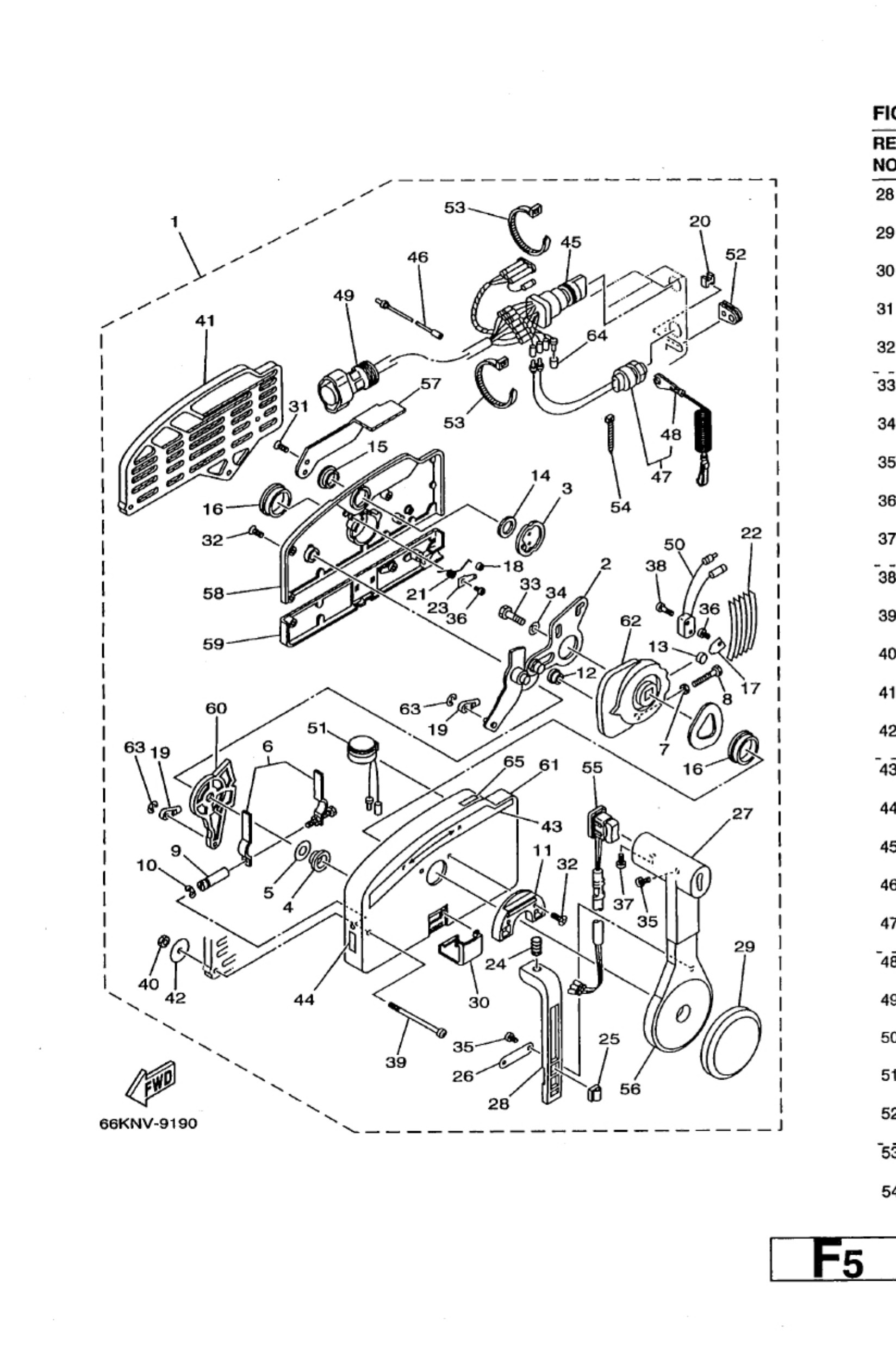

Diagram: REMOTE
Parts List
Reference
Description
Price
28
7034822300
Lock, neutral
Loading…
↗
29
7034822500
Cover
Loading…
↗
30
7034821900
Cover, lead
Loading…
↗
31
7034828100
Screw, flat head
Loading…
↗
32
7034628200
Screw
Loading…
↗
33
9709508030
Bolt, hexagon (fj1)
Loading…
↗
34
9299008600
Washer, plain (663)
Loading…
↗
35
9858004010
SINGLE
Screw, pan head (e56)
Loading…
↗
36
9858004006
Screw, pan head (7h3)
Loading…
↗
37
9856005010
Screw, Pan Head
Loading…
↗
39
7034829110
Screw
Loading…
↗
40
9538006600
Nut(661)
Loading…
↗
41
7034820310
SINGLE
Remote control assembly (7p)
Loading…
↗
44
7024821700
Mark
Loading…
↗
45
7038251011
Main switch assembly
Loading…
↗
46
7038253100
Wire, lead
Loading…
↗
47
6888257501
Engine stop switch assembly
Loading…
↗
49
6888258A20
L)5M (10P)
10p main harness mec 2m (6ft)
Loading…
↗
50
7038254000
Neutral switch assembly
Loading…
↗
51
70383383A0
Buzzer
Loading…
↗
52
7034828400
Grommet
Loading…
↗
52
OOKNV9190
‘Passe-Fil
Loading…
↗
53
7038250100
© C Band
Loading…
↗
54
7038250200
19- 54
Loading…
↗
55
7038256301
Trim & tilt switch assembly
Loading…
↗
56
7034822100
Grip
Loading…
↗
57
7034815200
Knob, free accel
Loading…
↗
58
7034821200
Rear housing
Loading…
↗
59
7034821300
Back, panel
Loading…
↗
61
7034821101
Housing,1
Loading…
↗
62
7034823200
Drive gear
Loading…
↗
63
9343006024
Circlip (701)
Loading…
↗
64
7038254200
Cap
Loading…
↗
