Yamaha Outboard Parts - REMOTE CONTROL - INTHDP/HDL (2014) | Flood Marine

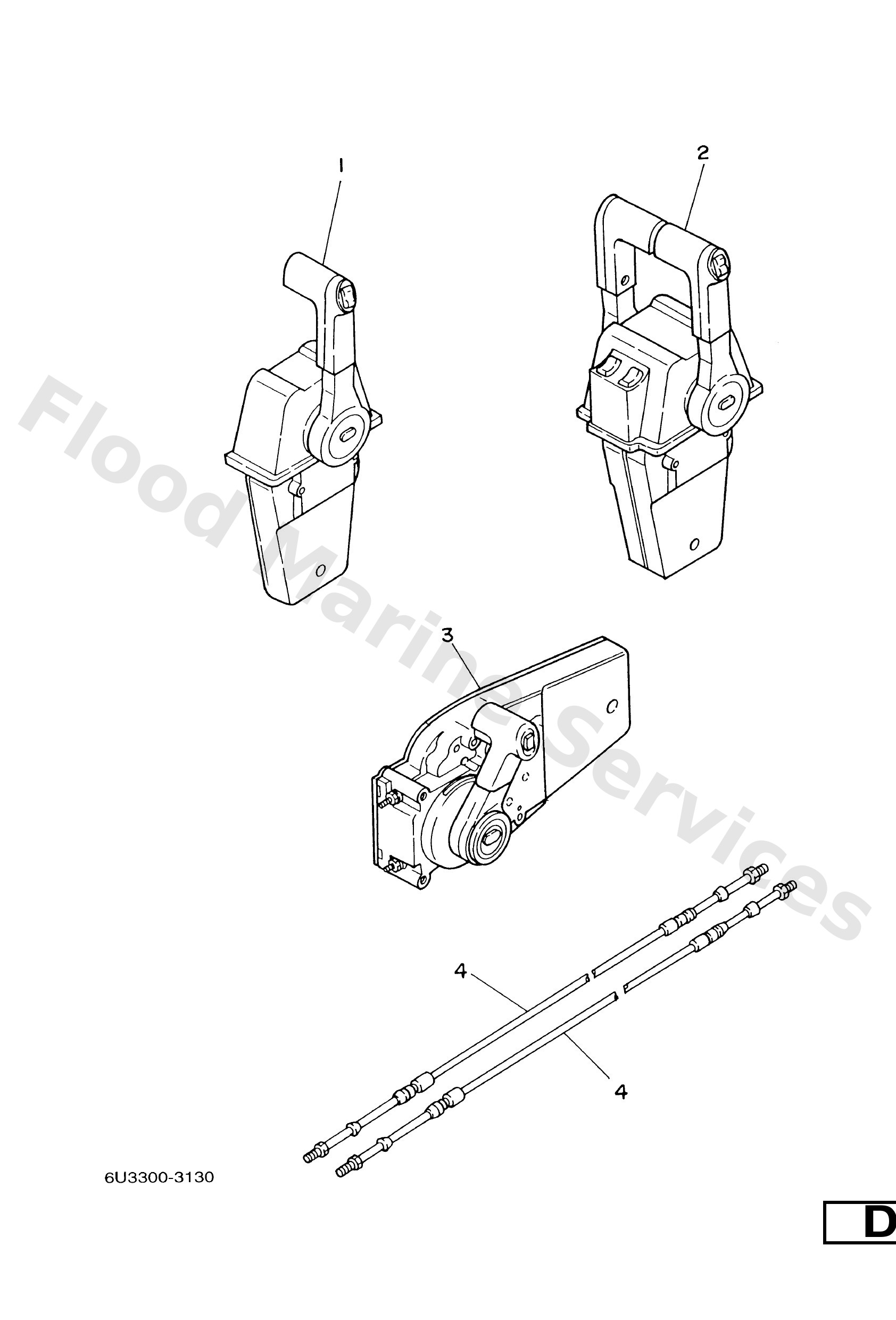

Diagram: REMOTE CONTROL

Diagram

Parts List

Reference
Description
Price


1
6XE4825011 UR SEE FIG,11
Remote control assembly
Loading…

↗
2
6XE4828011 UR SEE FIG,12
Remote control assembly
Loading…

↗
3
6XF4825011 UR SEE FIG,10
Remote control assembly
Loading…

↗
4
7014835060 UR
Cable, Remote Control L=27F
Loading…

↗
4
7014835050 UR
Cable, Remote Control L=26F
Loading…

↗
4
7014835040 UR
Cable, Remote Control L=25F
Loading…

↗
4
7014835030 UR
Cable, Remote Control L=24F
Loading…

↗
4
7014835020 UR
Cable, Remote Control L=23F
Loading…

↗
4
7014835010 UR
Cable, Remote Control L=22F
Loading…

↗
4
7014835000 UR
Cable, Remote Control L=21F
Loading…

↗
4
7014832090 UR
Cable, Remote Control L=18F
Loading…

↗
4
7014832080 UR
Cable, Remote Control L=17F
Loading…

↗
4
7014832070 UR
Cable, Remote Control L=20F
Loading…

↗
4
7014832060 UR
Cable, Remote Control L=16F
Loading…

↗
4
7014832050 UR
Cable, Remote Control L=15F
Loading…

↗
4
7014832040 UR
Cable, Remote Control L=19F
Loading…

↗
4
7014832030 UR
Cable, Remote Control L=14F
Loading…

↗
4
7014832020 UR
Cable, Remote Control L=13F
Loading…

↗
4
7014832000 UR
Cable, Remote Control L=12F
Loading…

↗
4
7014831090 UR
Cable, Remote Control L=11F
Loading…

↗
4
7014831080 UR
Cable, Remote Control L=10F
Loading…

↗
