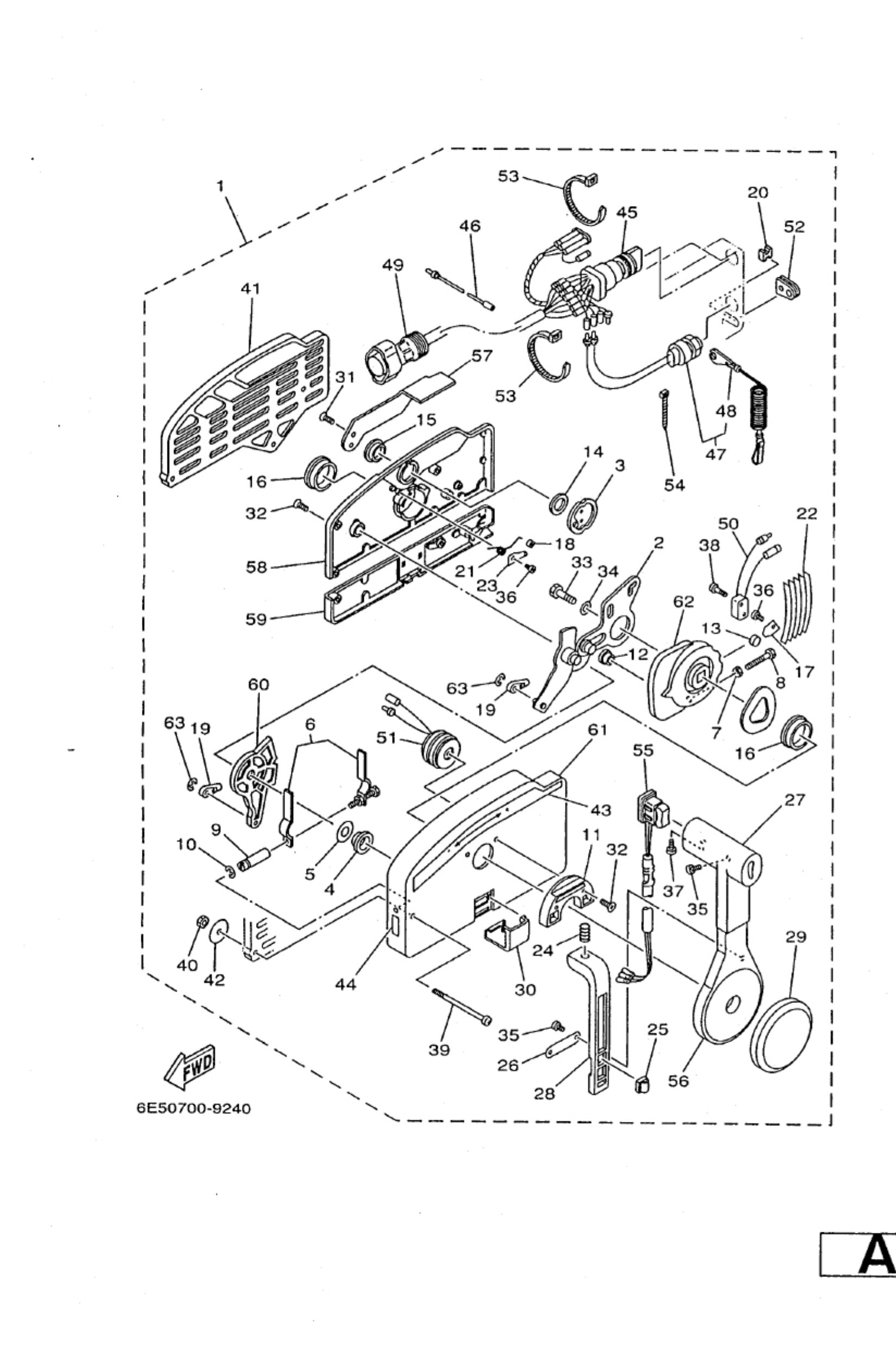

Diagram: REMOTE CONTROL ASSY

Diagram

Parts List

Reference
Description
Price


?
7034820515 AP WITH PT/T SW.
Remote control assembly (10p, ptt)
Loading…

↗
2
7034826101
Arm, throttle
Loading…

↗
3
7034815300
Shaft, free accel.
Loading…

↗
4
7034823500
Bushing
Loading…

↗
6
7034826400
Throttle, friction
Loading…

↗
7
9538005600
Nut, hexagon (663)
Loading…

↗
8
9738005025
Bolt
Loading…

↗
9
7034826500
Shaft, Friction
Loading…

↗
10
9343006024
Circlip (701)
Loading…

↗
12
7034825200
Roller, cam
Loading…

↗
13
7014824800
Roller, free accel
Loading…

↗
14
7034819800
Washer, wave 3
Loading…

↗
15
7034824300
Bushing 3
Loading…

↗
16
7034823600
Bushing
Loading…

↗
17
7034818900
Retainer
Loading…

↗
19
7034834501
Cable end, remote control 2
Loading…

↗
20
7034835800
Anchor, cable
Loading…

↗
22
7034823800
Spring, detent
Loading…

↗
23
7034824600
Spacer 1
Loading…

↗
24
7034822700
Spring, neutral lock
Loading…

↗
24
6E507009240
52 703-48284-00
Loading…

↗
27
7034822200 SINGLE
Grip, control lever
Loading…

↗
55
7038256301
Trim & tilt switch assembly
Loading…

↗
56
7034822100
Grip
Loading…

↗
57
7034815200
Knob, free accel
Loading…

↗
58
7034821200
Rear housing
Loading…

↗
59
7034821300
Back, panel
Loading…

↗
61
7034821101
Housing,1
Loading…

↗
62
7034823200
Drive gear
Loading…

↗
