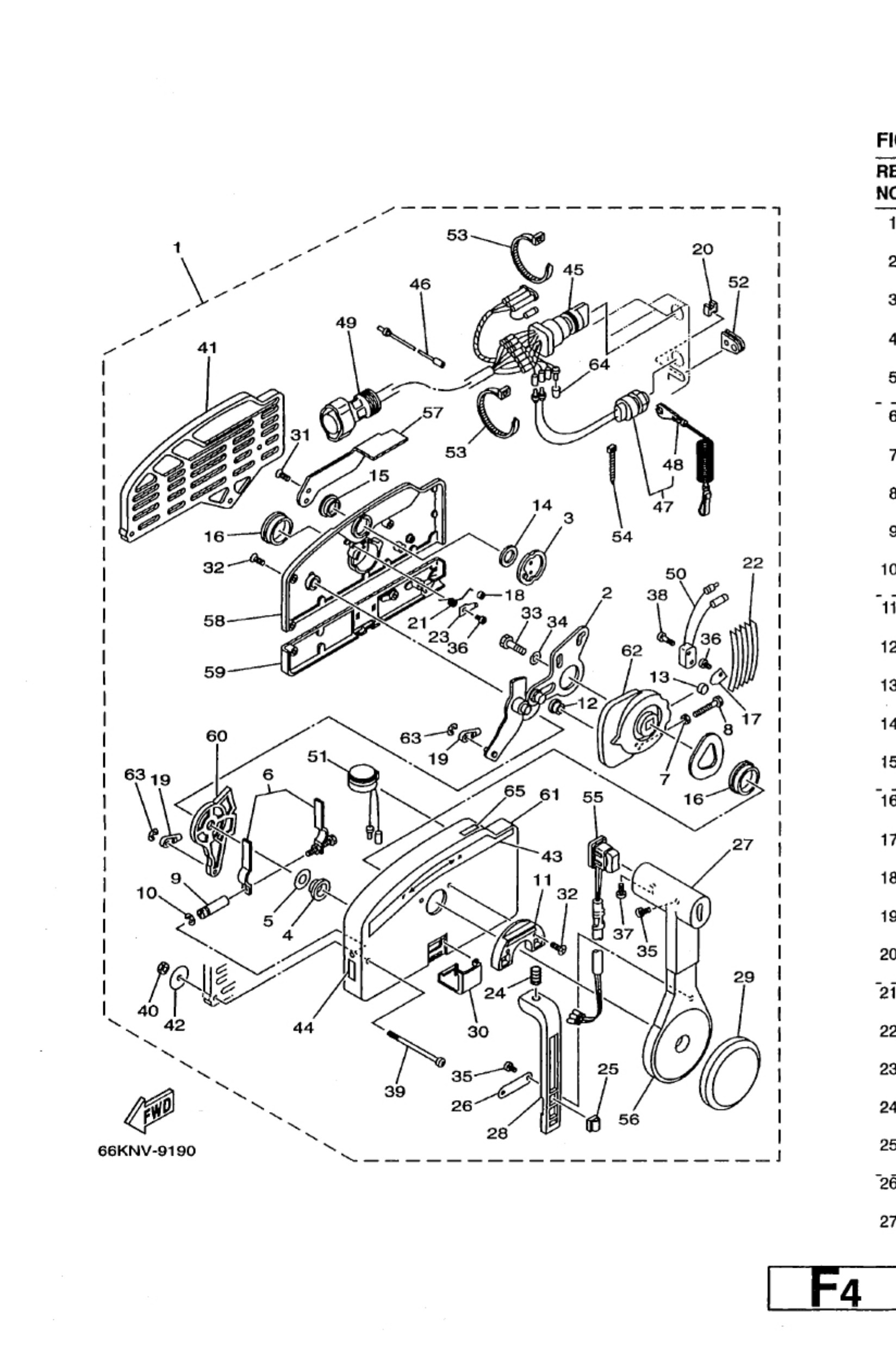

Diagram: REMOTE CONTROL ASSY

Diagram

Parts List

Reference
Description
Price


1
70348205A2
Remote control assembly (10p, ptt)
Loading…

↗
2
7034826101
Arm, throttle
Loading…

↗
3
7034815300
Shaft, free accel.
Loading…

↗
4
7034823500
Bushing
Loading…

↗
5
7034826800
Spacer 3
Loading…

↗
6
7034826400
Throttle, friction
Loading…

↗
7
9538005600
Nut, hexagon (663)
Loading…

↗
8
9738005025
Bolt
Loading…

↗
9
7034826500
Shaft, Friction
Loading…

↗
10
9343006024
Circlip (701)
Loading…

↗
12
7034825200
Roller, cam
Loading…

↗
13
7014824800
Roller, free accel
Loading…

↗
14
7034819800
Washer, wave 3
Loading…

↗
21
7034824300 i
Bushing 3
Loading…

↗
16
7034823600
Bushing
Loading…

↗
17
7034818900
Retainer
Loading…

↗
19
7034834501
Cable end, remote control 2
Loading…

↗
20
7034835800
Anchor, cable
Loading…

↗
22
7034823800
Spring, detent
Loading…

↗
23
7034824600
Spacer 1
Loading…

↗
24
7034822700
Spring, neutral lock
Loading…

↗
24
66KNV9190
Sn
Loading…

↗
24
7034822600 I
Plate, stopper
Loading…

↗
27
7034822200 SINGLE
Grip, control lever
Loading…

↗
