F9.9HMH (2014)
REMOTE CONTROL ASSY

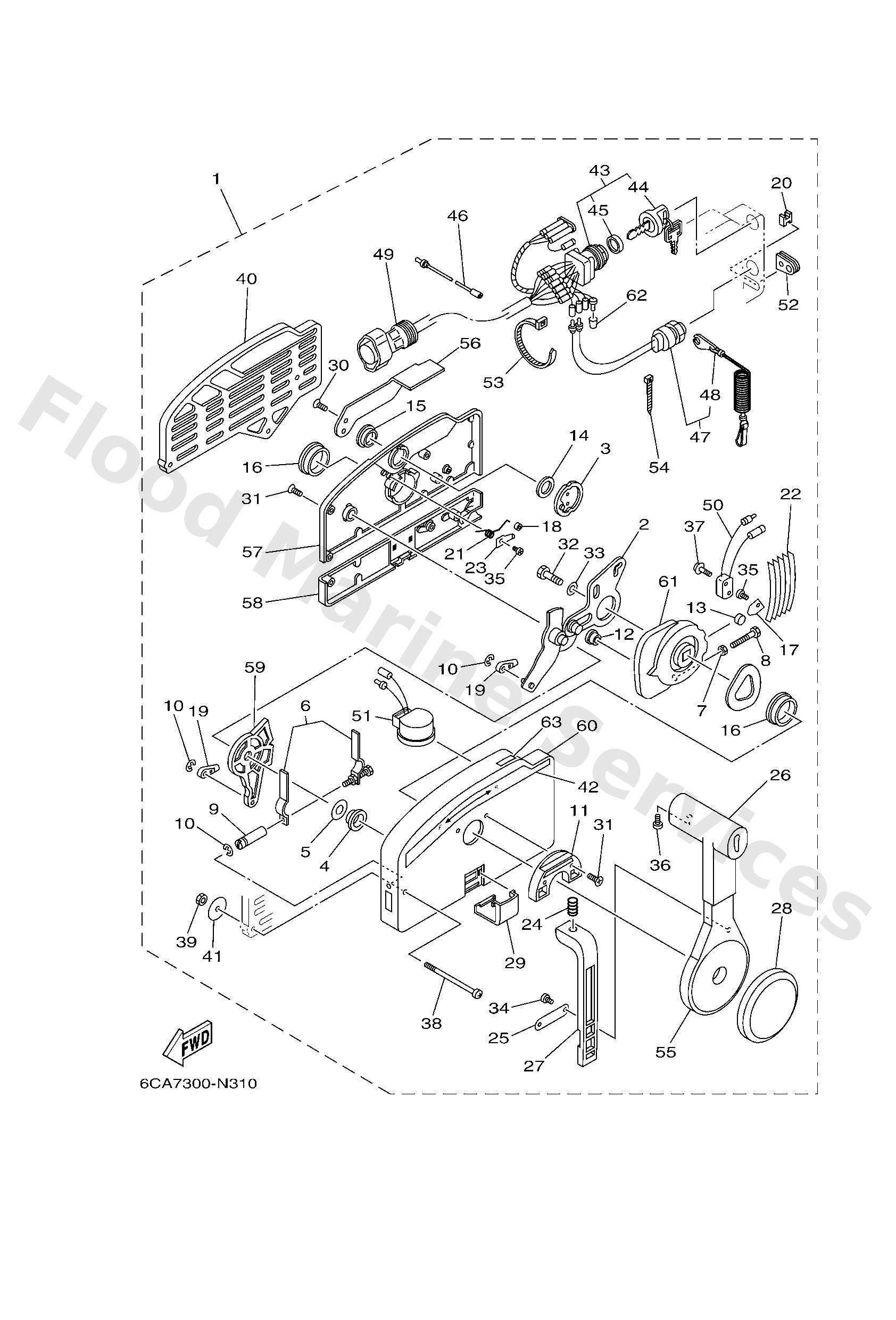

Diagram: REMOTE CONTROL ASSY
Parts List
Reference
Description
Price
1
70348201A6
AP WITHOUT PT/T SW.
Remote control assembly
Loading…
↗
2
7034826101
Arm, throttle
Loading…
↗
3
7034815300
Shaft, free accel.
Loading…
↗
4
7034823500
Bushing
Loading…
↗
5
7034826800
Spacer 3
Loading…
↗
6
7034826400
Throttle, friction
Loading…
↗
7
9538005600
Nut, hexagon (663)
Loading…
↗
8
9738005025
Bolt
Loading…
↗
9
7034826500
Shaft, Friction
Loading…
↗
10
9343006024
Circlip (701)
Loading…
↗
11
7034824500
Plate, lock
Loading…
↗
12
7034825200
Roller, cam
Loading…
↗
13
7014824800
Roller, free accel
Loading…
↗
14
7034819800
Washer, wave 3
Loading…
↗
15
7034824300
Bushing 3
Loading…
↗
16
7034823400
Roller, detent
Loading…
↗
17
7034818900
Retainer
Loading…
↗
18
7034823600
Bushing
Loading…
↗
19
7034834501
Cable end, remote control 2
Loading…
↗
20
7034835800
Anchor, cable
Loading…
↗
21
7034824400
Spring, free accel.
Loading…
↗
22
7034823800
Spring, detent
Loading…
↗
23
7034824600
Spacer 1
Loading…
↗
24
7034822700
Spring, neutral lock
Loading…
↗
25
7034822600
Plate, stopper
Loading…
↗
26
7034822210
Grip, control lever
Loading…
↗
27
7034822300
Lock, neutral
Loading…
↗
28
7034822500
Cover
Loading…
↗
29
7034821900
Cover, lead
Loading…
↗
30
7034828100
Screw, flat head
Loading…
↗
31
7034418900
Screw
Loading…
↗
32
9738008030
Bolt, hexagon (fj1)
Loading…
↗
33
9299008600
Washer, plain (663)
Loading…
↗
34
9858004010
Screw, pan head (e56)
Loading…
↗
35
9858004006
Screw, pan head (7h3)
Loading…
↗
36
9858005010
Screw, pan head(62x)
Loading…
↗
37
7034812900
Screw 3
Loading…
↗
38
7034418910
Screw
Loading…
↗
39
9538006600
Nut(661)
Loading…
↗
40
7034829310
SINGLE
Spacer, remote control
Loading…
↗
41
7014828700
Washer 1
Loading…
↗
42
7034821500
Graphic
Loading…
↗
43
7038251013
PRIME START
Main switch assembly
Loading…
↗
44
6768257701
Cap, key
Loading…
↗
45
7038253200
Cap
Loading…
↗
46
7038253100
Wire, lead
Loading…
↗
47
6888257501
Engine stop switch assembly
Loading…
↗
48
6828255600
Lanyard, stop switch
Loading…
↗
49
6888258A20
(10P)
10p main harness mec 2m (6ft)
Loading…
↗
50
7038254000
Neutral switch assembly
Loading…
↗
51
70383383B0
Buzzer
Loading…
↗
52
7034828400
Grommet
Loading…
↗
53
7038259100
Band
Loading…
↗
54
7038259200
Band
Loading…
↗
55
7034822100
Grip
Loading…
↗
56
7034815200
Knob, free accel
Loading…
↗
57
7034821200
Rear housing
Loading…
↗
58
7034821300
Back, panel
Loading…
↗
59
7034827100
Arm, shift
Loading…
↗
60
7034821102
Housing,1
Loading…
↗
61
7034823200
Drive gear
Loading…
↗
62
7038254200
Cap
Loading…
↗
63
7034821800
Graphic
