F9.9JE (2020)
REMOTE CONTROL ASSY

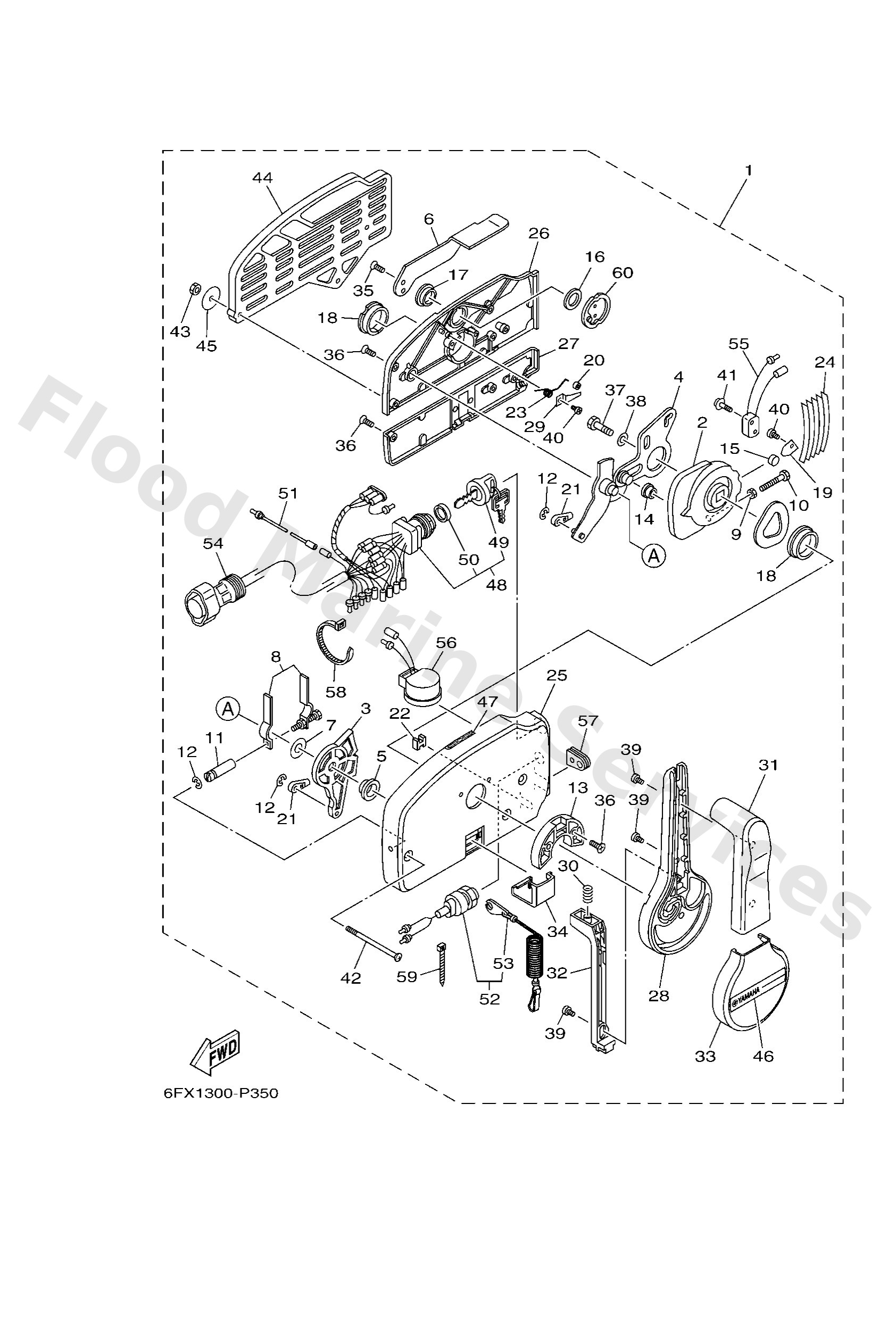

Diagram: REMOTE CONTROL ASSY
Parts List
Reference
Description
Price
1
7034820122
AP WITHOUT PT/T SW.
Remote control assembly (10p)
Loading…
↗
2
7034823200
Drive gear
Loading…
↗
3
7034827100
Arm, shift
Loading…
↗
4
7034826101
Arm, throttle
Loading…
↗
5
7034823500
Bushing
Loading…
↗
6
7034815210
Knob, free accel.
Loading…
↗
7
7034826800
Spacer 3
Loading…
↗
8
7034826400
Throttle, friction
Loading…
↗
9
9538005600
Nut, hexagon (663)
Loading…
↗
10
9738005025
Bolt
Loading…
↗
11
7034826510
Shaft, friction
Loading…
↗
12
9343006024
Circlip (701)
Loading…
↗
13
7034824500
Plate, lock
Loading…
↗
14
7034825200
Roller, cam
Loading…
↗
15
7014824800
Roller, free accel
Loading…
↗
16
7034819800
Washer, wave 3
Loading…
↗
17
7034824300
Bushing 3
Loading…
↗
18
7034823600
Bushing
Loading…
↗
19
7034818900
Retainer
Loading…
↗
20
7034823400
Roller, detent
Loading…
↗
21
7034834501
Cable end, remote control 2
Loading…
↗
22
7034835801
Anchor, cable
Loading…
↗
23
7034824400
Spring, free accel.
Loading…
↗
24
7034823800
Spring, detent
Loading…
↗
25
7034821110
Housing,1
Loading…
↗
26
7034821210
Back plate 1
Loading…
↗
27
7034821310
Back plate 2
Loading…
↗
28
7034822110
Lever, control
Loading…
↗
29
7034824600
Spacer 1
Loading…
↗
30
7034822700
Spring, neutral lock
Loading…
↗
31
7034822230
SINGLE
Grip, control lever
Loading…
↗
32
7034822310
Lock, neutral
Loading…
↗
33
7034822510
Cover
Loading…
↗
34
7034821910
Cover, lead
Loading…
↗
35
7034828100
Screw, flat head
Loading…
↗
36
7034418920
Screw
Loading…
↗
37
9738008030
Bolt, hexagon (fj1)
Loading…
↗
38
9299008600
Washer, plain (663)
Loading…
↗
39
7034812810
Screw 2
Loading…
↗
40
9858004006
Screw, pan head (7h3)
Loading…
↗
41
7034812900
Screw 3
Loading…
↗
42
7034418930
Screw
Loading…
↗
43
9538006600
Nut(661)
Loading…
↗
44
7034829310
SINGLE
Spacer, remote control
Loading…
↗
45
7014828700
Washer 1
Loading…
↗
46
7034821511
Graphic
Loading…
↗
47
6X34419100
Indicator, shift
Loading…
↗
48
7038251044
Main switch assembly
Loading…
↗
49
7038257700
Cap, key
Loading…
↗
50
6K18253200
Cap
Loading…
↗
51
7038253100
Wire, lead
Loading…
↗
52
6888257502
Engine stop switch assembly
Loading…
↗
53
6828255600
Lanyard, stop switch
Loading…
↗
54
6888258A20
(10P)
10p main harness mec 2m (6ft)
Loading…
↗
55
7038254000
Neutral switch assembly
Loading…
↗
56
7038338311
Buzzer
Loading…
↗
57
7034828400
Grommet
Loading…
↗
58
7038259100
Band
Loading…
↗
59
7038259200
Band
Loading…
↗
60
7034815300
Shaft, free accel.
