Yamaha Outboard Parts - REMOTE CONTROL ASSY - ME750TIH (2005) | Flood Marine

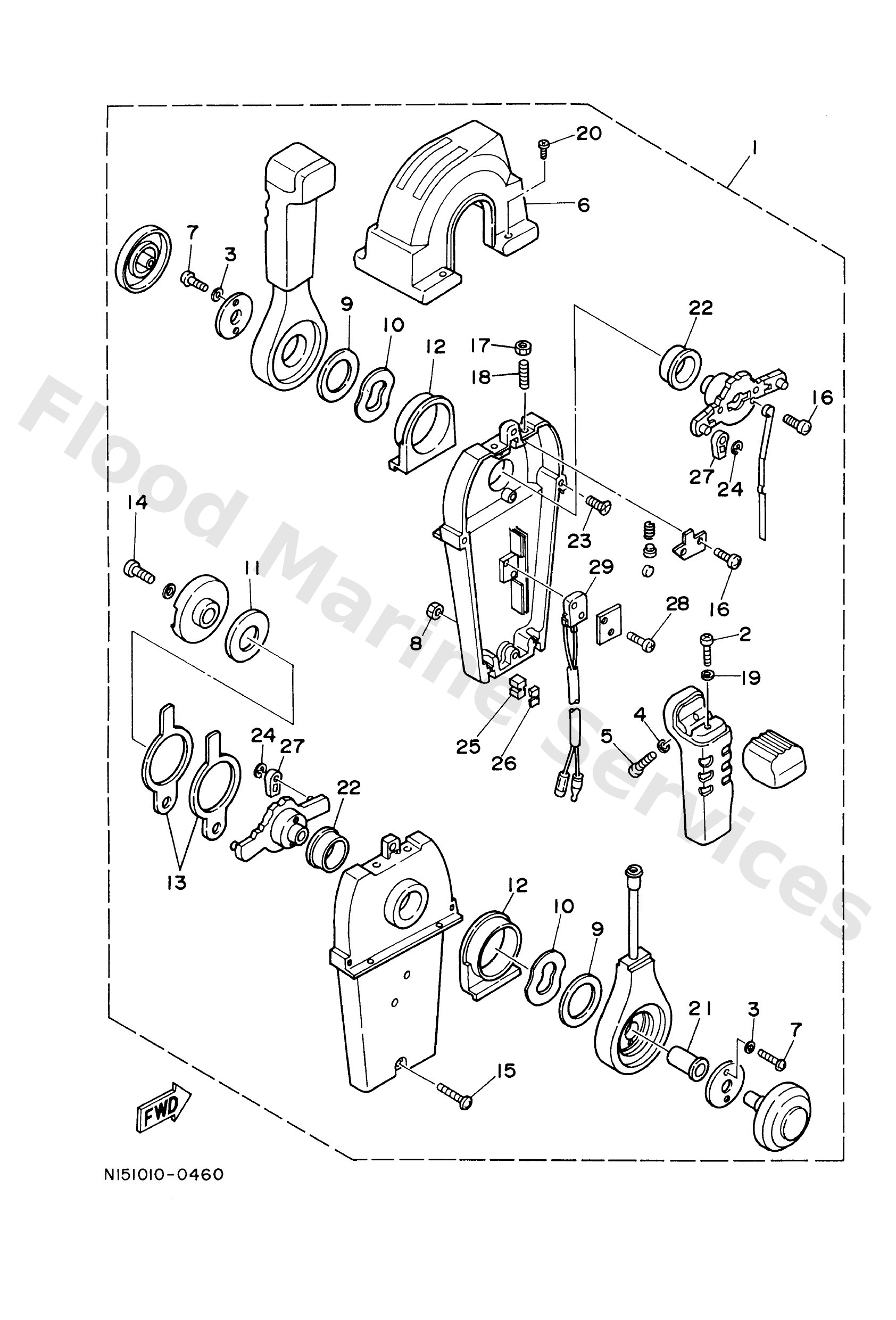

Diagram: REMOTE CONTROL ASSY

Diagram

Parts List

Reference
Description
Price


1
N154811011
Remote control assembly
Loading…

↗
2
9778050620
Screw, tapping
Loading…

↗
3
9299005300
Washer, tooth
Loading…

↗
4
9299006600
Washer, plain (646)
Loading…

↗
5
9788006018
Screw, pan head(6e5)
Loading…

↗
6
N154811900
38- 6
Loading…

↗
7
9788005016
Screw, pan head(6b0)
Loading…

↗
8
N154458300
38- 8
Loading…

↗
9
N154254500
Washer, Plain
Loading…

↗
10
N154333800
Washer, Wave
Loading…

↗
11
N152725700
Pad, Brake
Loading…

↗
12
N154771600
38- 12
Loading…

↗
13
N152532100
Plate, Brake Shoe
Loading…

↗
14
9788005010
Screw, pan head(62x)
Loading…

↗
15
9788005025
Screw, panhead (a93)
Loading…

↗
17
9538006600
Nut(661)
Loading…

↗
18
N154219900
Bolt, Stopper
Loading…

↗
19
9299005600
Washer, plain (646)
Loading…

↗
20
9898004010
Screw, binding (m01)
Loading…

↗
21
N154823400
38- 21
Loading…

↗
22
N154823500
38- 22
Loading…

↗
23
9878005030
Ybs53-530 screw,flat head
Loading…

↗
24
9908006600
Circlip (701)
Loading…

↗
25
N154553900
38- 25
Loading…

↗
26
N154553800
38- 26
Loading…

↗
27
N154834510
Cable end, remocon
Loading…

↗
28
9788003014
Screw, pan head (n151)
Loading…

↗
29
N158254000
N.s.w. assembly
Loading…

↗
