L225FET0 (2003)
REMOTE CONTROL ASSY 1

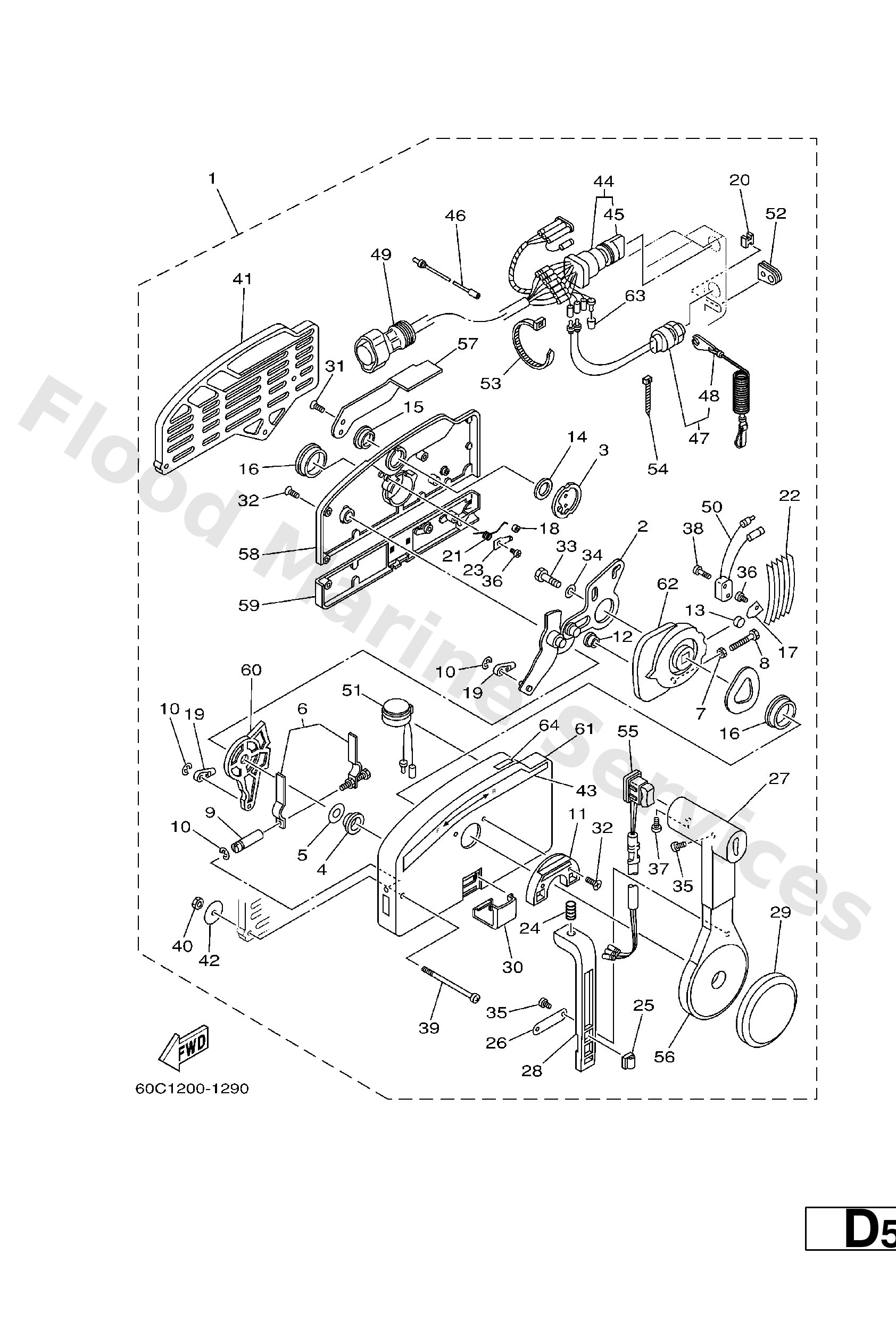

Diagram: REMOTE CONTROL ASSY 1
Parts List
Reference
Description
Price
1
703−48205−17
AP WITH PT/T SW.
Remote control assembly (10p, ptt)
Loading…
↗
1
703−48205−A4
AP FOR CARIB
Remote control assembly (10p, ptt)
Loading…
↗
2
703−48261−01
Arm, throttle
Loading…
↗
3
703−48153−00
Shaft, free accel.
Loading…
↗
4
703−48235−00
Bushing
Loading…
↗
5
703−48268−00
Spacer 3
Loading…
↗
6
703−48264−00
Throttle, friction
Loading…
↗
7
95380−05600
Nut, hexagon (663)
Loading…
↗
8
97380−05025
Bolt
Loading…
↗
9
703−48265−00
Shaft, Friction
Loading…
↗
10
93430−06024
Circlip (701)
Loading…
↗
11
703−48245−00
Plate, lock
Loading…
↗
12
703−48252−00
Roller, cam
Loading…
↗
13
701−48248−00
Roller, free accel
Loading…
↗
14
703−48198−00
Washer, wave 3
Loading…
↗
15
703−48243−00
Bushing 3
Loading…
↗
16
703−48236−00
Bushing
Loading…
↗
17
703−48189−00
Retainer
Loading…
↗
18
703−48234−00
Roller, detent
Loading…
↗
19
703−48345−01
Cable end, remote control 2
Loading…
↗
20
703−48358−00
Anchor, cable
Loading…
↗
21
703−48244−00
Spring, free accel.
Loading…
↗
22
703−48238−00
Spring, detent
Loading…
↗
23
703−48246−00
Spacer 1
Loading…
↗
24
703−48227−00
Spring, neutral lock
Loading…
↗
25
703−82594−00
WITH PT/T SW.
Clamp
Loading…
↗
26
703−48226−00
Plate, stopper
Loading…
↗
27
703−48222−00
SINGLE
Grip, control lever
Loading…
↗
28
703−48223−00
Lock, neutral
Loading…
↗
29
703−48225−00
Cover
Loading…
↗
30
703−48219−00
Cover, lead
Loading…
↗
31
703−48281−00
Screw, flat head
Loading…
↗
32
703−48282−00
Screw
Loading…
↗
33
97380−08030
Bolt, hexagon (fj1)
Loading…
↗
34
92990−08600
Washer, plain (663)
Loading…
↗
35
98580−04010
Screw, pan head (e56)
Loading…
↗
36
98580−04006
Screw, pan head (7h3)
Loading…
↗
37
98580−05010
Screw, pan head(62x)
Loading…
↗
38
98580−03015
Screw, pan head (n151)
Loading…
↗
39
703−48291−10
Screw
Loading…
↗
40
95380−06600
Nut(661)
Loading…
↗
41
703−48293−10
SINGLE
Spacer, remote control
Loading…
↗
42
701−48287−00
Washer 1
Loading…
↗
43
703−48215−00
Graphic
Loading…
↗
44
703−82510−12
FOR 703−48205−A4
Main switch assembly
Loading…
↗
44
703−82510−43
FOR 703−48205−17
Main switch assembly
Loading…
↗
45
676−82577−00
FOR 703−82510−12
Cap, key
Loading…
↗
45
703−82577−00
FOR 703−82510−43
Cap, key
Loading…
↗
46
703−82531−00
Wire, lead
Loading…
↗
47
688−82575−01
Engine stop switch assembly
Loading…
↗
48
682−82556−00
Lanyard, stop switch
Loading…
↗
49
688−8258A−20
L)5M (10P)
10p main harness mec 2m (6ft)
Loading…
↗
50
703−82540−00
Neutral switch assembly
Loading…
↗
51
703−83383−A0
FOR 703−48205−A4
Buzzer
Loading…
↗
51
703−83383−02
FOR 703−48205−17
Buzzer
Loading…
↗
52
703−48284−00
Grommet
Loading…
↗
53
703−82591−00
Band
Loading…
↗
54
703−82592−00
Band
Loading…
↗
55
703−82563−02
WITH PT/T SW.
Trim & tilt switch assembly
Loading…
↗
56
703−48221−00
Grip
Loading…
↗
57
703−48152−00
Knob, free accel
Loading…
↗
58
703−48212−00
Rear housing
Loading…
↗
59
703−48213−00
Back, panel
Loading…
↗
60
703−48271−00
Arm, shift
Loading…
↗
61
703−48211−01
Housing,1
Loading…
↗
62
703−48232−00
Drive gear
Loading…
↗
63
703−82542−00
FOR 703−48205−A4
Cap
Loading…
↗
64
703−48218−00
FOR 703−48205−A4
Graphic
Loading…
↗
