L250BETO (2002)
REMOTE CONTROL ASSY 1

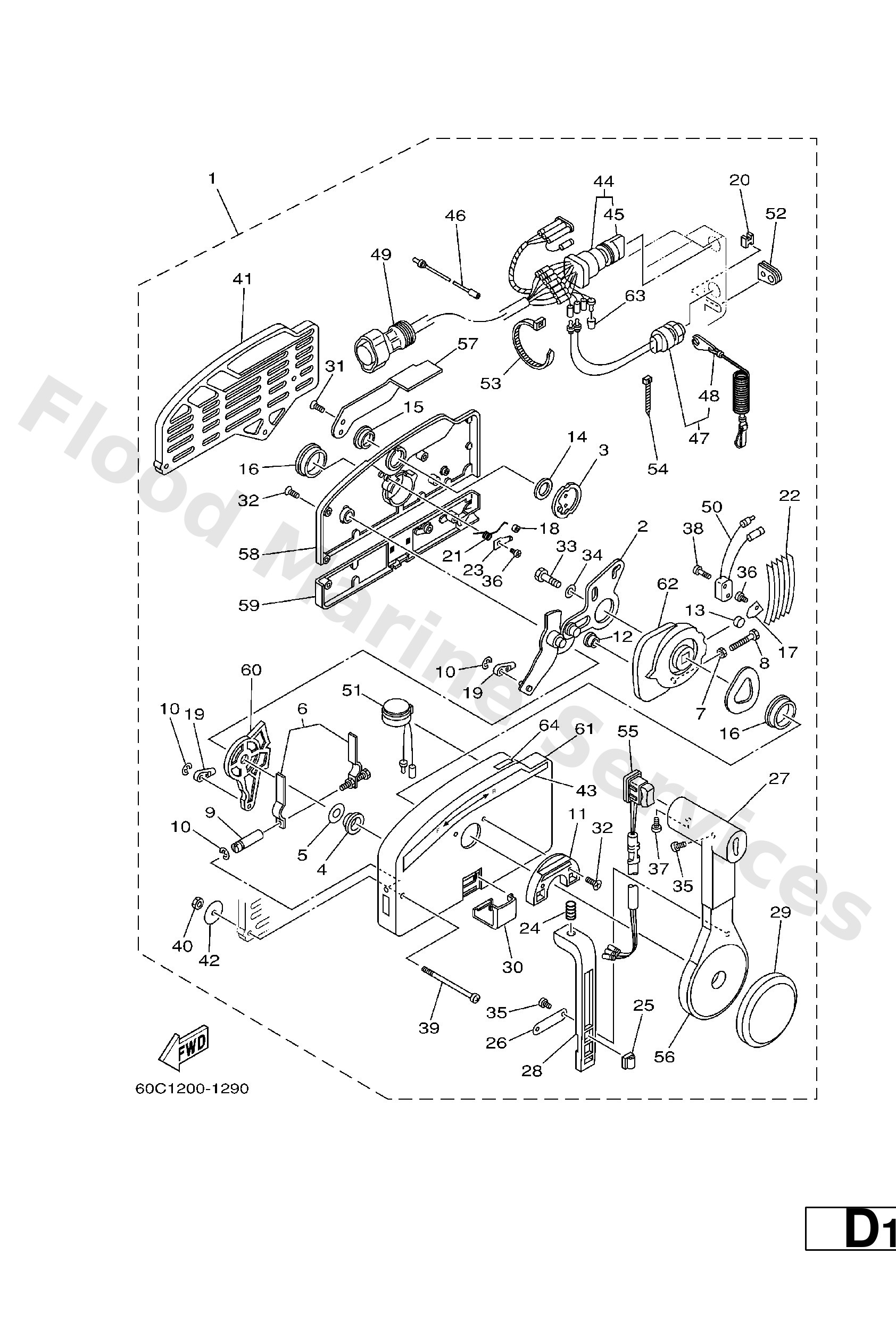

Diagram: REMOTE CONTROL ASSY 1
Parts List
Reference
Description
Price
1
703--48205--A4
AP WITH PT/T SW.
Remote control assembly (10p, ptt)
Loading…
↗
2
703--48261--01
Arm, throttle
Loading…
↗
3
703--48153--00
Shaft, free accel.
Loading…
↗
4
703--48235--00
Bushing
Loading…
↗
5
703--48268--00
Spacer 3
Loading…
↗
6
703--48264--00
Throttle, friction
Loading…
↗
7
95380--05600
Nut, hexagon (663)
Loading…
↗
8
97380--05025
28 −
Loading…
↗
9
703--48265--00
28 −
Loading…
↗
10
93430--06024
Circlip (701)
Loading…
↗
11
703--48245--00
Plate, lock
Loading…
↗
12
703--48252--00
Roller, cam
Loading…
↗
13
701--48248--00
Roller, free accel
Loading…
↗
14
703--48198--00
Washer, wave 3
Loading…
↗
15
703--48243--00
Bushing 3
Loading…
↗
16
703--48236--00
Bushing
Loading…
↗
17
703--48189--00
Retainer
Loading…
↗
18
703--48234--00
Roller, detent
Loading…
↗
19
703--48345--01
Cable end, remote control 2
Loading…
↗
20
703--48358--00
Anchor, cable
Loading…
↗
21
703--48244--00
Spring, free accel.
Loading…
↗
22
703--48238--00
Spring, detent
Loading…
↗
23
703--48246--00
Spacer 1
Loading…
↗
24
703--48227--00
Spring, neutral lock
Loading…
↗
25
703--82594--00
WITH PT/T SW.
Clamp
Loading…
↗
26
703--48226--00
Plate, stopper
Loading…
↗
27
703--48222--00
SINGLE
Grip, control lever
Loading…
↗
28
703--48223--00
Lock, neutral
Loading…
↗
29
703--48225--00
Cover
Loading…
↗
30
703--48219--00
Cover, lead
Loading…
↗
31
703--48281--00
Screw, flat head
Loading…
↗
32
703--48282--00
Screw
Loading…
↗
33
97380--08030
Bolt, hexagon (fj1)
Loading…
↗
34
92990--08600
Washer, plain (663)
Loading…
↗
35
98580--04010
Screw, pan head (e56)
Loading…
↗
36
98580--04006
Screw, pan head (7h3)
Loading…
↗
37
98580--05010
Screw, pan head(62x)
Loading…
↗
38
98580--03015
Screw, pan head (n151)
Loading…
↗
39
703--48291--10
Screw
Loading…
↗
40
95380--06600
Nut(661)
Loading…
↗
41
703--48293--10
SINGLE
Spacer, remote control
Loading…
↗
42
701--48287--00
Washer 1
Loading…
↗
43
703--48215--00
Graphic
Loading…
↗
44
703--82510--12
FOR PRIME START
Main switch assembly
Loading…
↗
45
676--82577--00
Cap, key
Loading…
↗
46
703--82531--00
Wire, lead
Loading…
↗
47
688--82575--01
Engine stop switch assembly
Loading…
↗
48
682--82556--00
Lanyard, stop switch
Loading…
↗
49
688--8258A--20
L)5M (10P)
10p main harness mec 2m (6ft)
Loading…
↗
50
703--82540--00
Neutral switch assembly
Loading…
↗
51
703--83383--A0
Buzzer
Loading…
↗
52
703--48284--00
Grommet
Loading…
↗
53
703--82591--00
Band
Loading…
↗
54
703--82592--00
Band
Loading…
↗
55
703--82563--02
Trim & tilt switch assembly
Loading…
↗
56
703--48221--00
Grip
Loading…
↗
57
703--48152--00
Knob, free accel
Loading…
↗
58
703--48212--00
Rear housing
Loading…
↗
59
703--48213--00
Back, panel
Loading…
↗
60
703--48271--00
Arm, shift
Loading…
↗
61
703--48211--01
Housing,1
Loading…
↗
62
703--48232--00
Drive gear
Loading…
↗
63
703--82542--00
Cap
Loading…
↗
64
703--48218--00
Graphic
Loading…
↗
