40XMH (2003)
REMOTE CONTROL ASSY 2

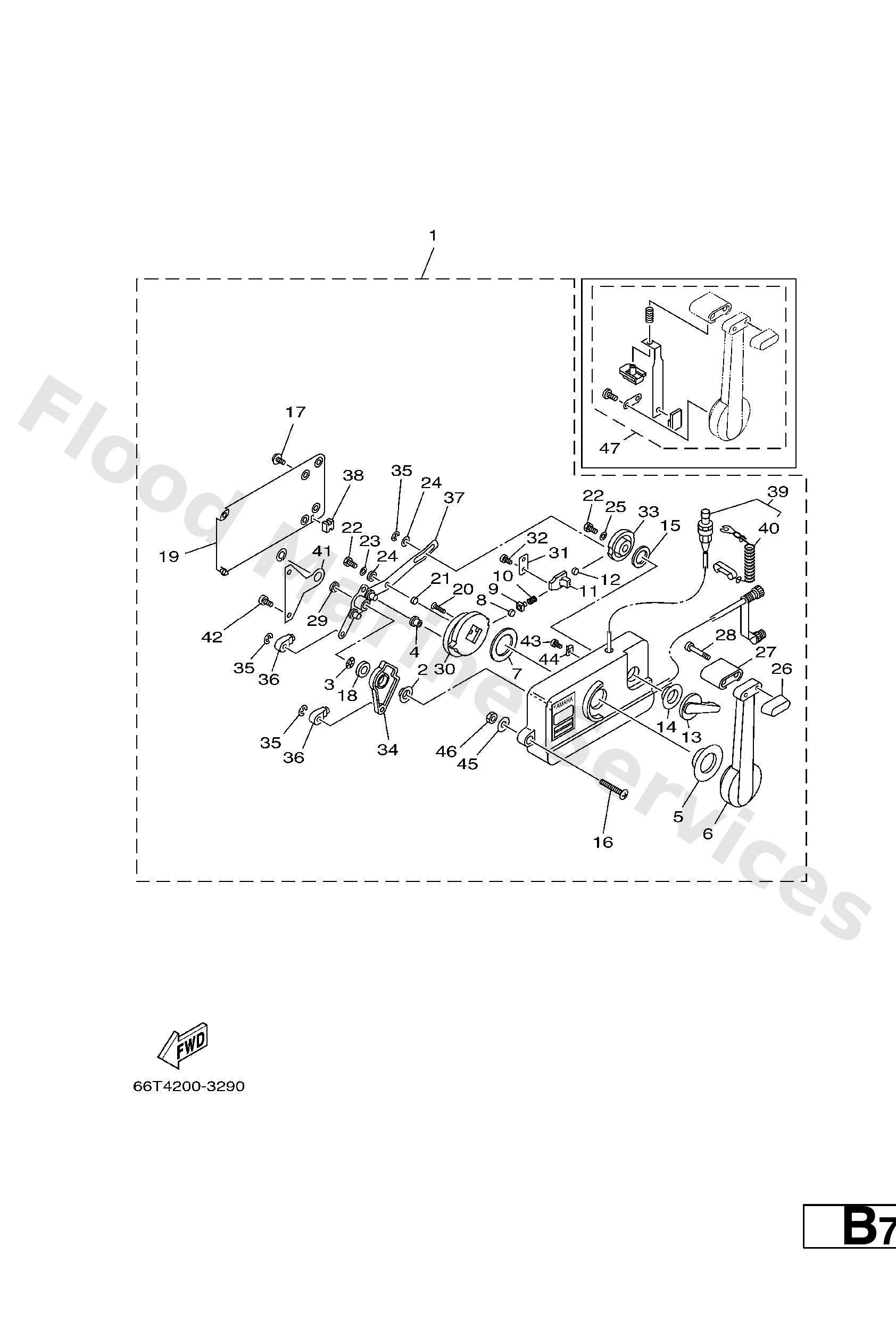

Diagram: REMOTE CONTROL ASSY 2
Parts List
Reference
Description
Price
1
701−48140−E0
AP FOR VOLGA
703 mec rc side mnt push - ms
Loading…
↗
2
701−48235−00
Bushing 2
Loading…
↗
3
701−48197−10
Washer, wave 2
Loading…
↗
4
701−48252−00
Roller, cam
Loading…
↗
5
701−48234−00
Bushing 1
Loading…
↗
6
701−48221−00
Lever, control
Loading…
↗
7
701−48196−11
Washer, wave 1
Loading…
↗
8
701−48236−00
Roller, detent
Loading…
↗
9
702−48237−00
Adaptor
Loading…
↗
10
702−48238−00
Spring, Detent
Loading…
↗
11
701−48249−00
Spring, adapter
Loading…
↗
12
701−48248−00
Roller, free accel
Loading…
↗
13
701−48152−20
LEFT
Knob, Free Accel.
Loading…
↗
14
701−48243−00
Bushing
Loading…
↗
15
701−48198−10
Washer, wave 3
Loading…
↗
16
701−48281−10
Screw 1(m6x40)
Loading…
↗
17
701−48289−00
Screw, pan head(62x)
Loading…
↗
18
701−48268−00
Spacer 3
Loading…
↗
19
701−48213−00
Back, plate
Loading…
↗
20
92780−06025
Screw flat head
Loading…
↗
21
701−48255−00
Coller 1
Loading…
↗
22
97390−06018
Bolt (fj0)
Loading…
↗
23
702−48288−00
Washer, Plain
Loading…
↗
24
701−48246−00
Spacer
Loading…
↗
25
92990−06300
Washer, tooth
Loading…
↗
26
701−48229−00
Grip, control lever 2
Loading…
↗
27
701−48222−00
Grip, control lever
Loading…
↗
28
701−48282−00
Screw, pan head
Loading…
↗
29
701−48266−00
Spacer 2
Loading…
↗
30
701−48232−00
Gear 1
Loading…
↗
31
701−48189−11
Retainer
Loading…
↗
32
98580−05010
Screw, pan head(62x)
Loading…
↗
33
701−48153−12
Shaft, free accel
Loading…
↗
34
701−48271−10
LEFT
Arm, shift
Loading…
↗
35
93430−06024
Circlip (701)
Loading…
↗
36
703−48345−01
Cable end, remote control 2
Loading…
↗
37
701−48261−20
Arm, throttle
Loading…
↗
38
701−48358−00
Anchor, cable
Loading…
↗
39
701−82575−53
Engine stop switch assembly
Loading…
↗
40
682−82556−00
Lanyard, stop switch
Loading…
↗
41
701−48133−00
Plate, Link
Loading…
↗
42
98580−05020
Screw, pan head (e22)
Loading…
↗
43
701−48283−00
Screw 3
Loading…
↗
44
701−82594−00
Clamp
Loading…
↗
45
701−48287−00
Washer 1
Loading…
↗
46
95380−06600
Nut(661)
Loading…
↗
47
701−48280−00
Neutral lock kit
Loading…
↗
