L250AETO (2003)
REMOTE CONTROL ASSY 2

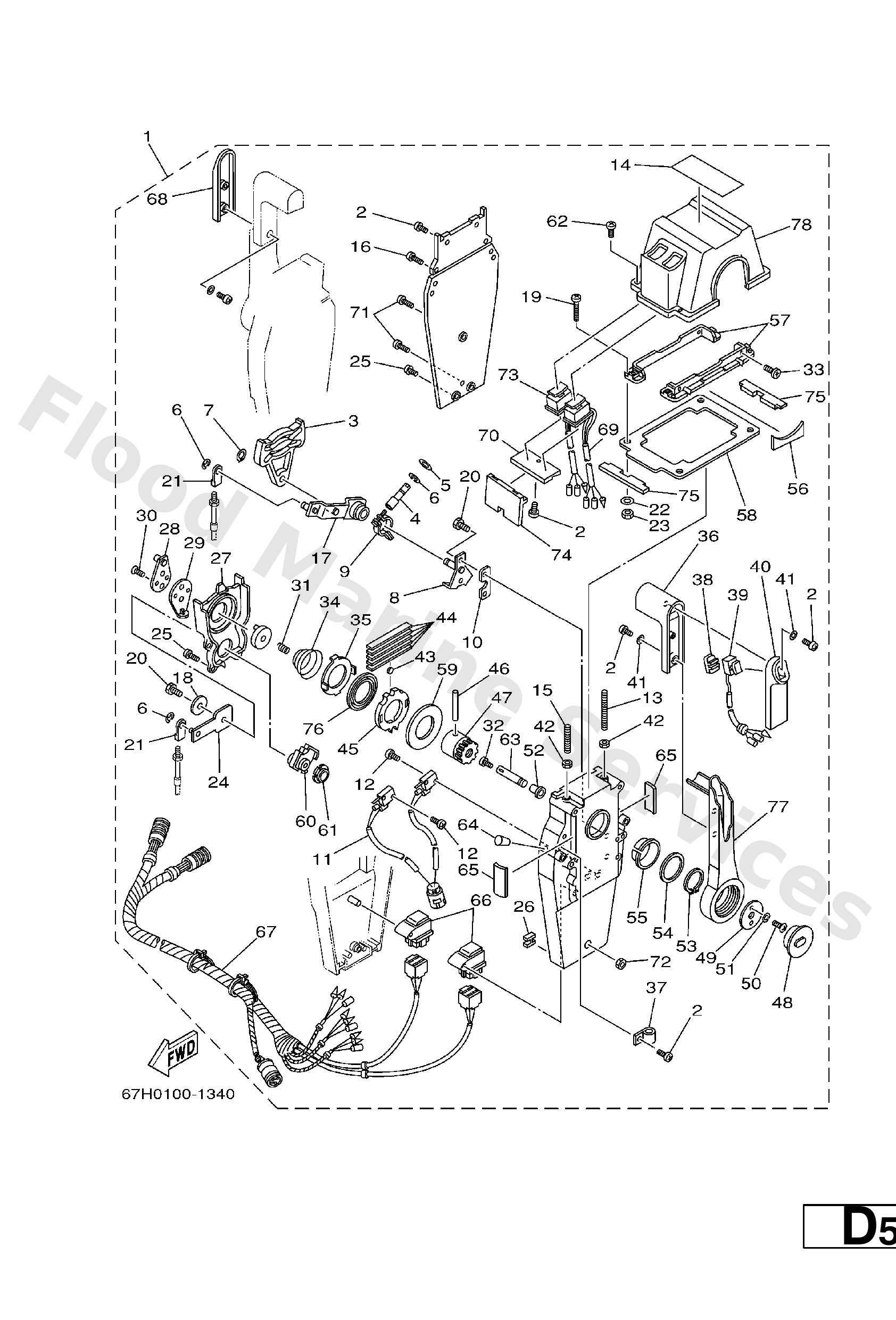

Diagram: REMOTE CONTROL ASSY 2
Parts List
Reference
Description
Price
1
704−48207−23
AP WITH PT/T SW.
Remote Control assembly
Loading…
↗
2
97890−05016
Screw, pan head(6b0)
Loading…
↗
3
EL8−48251−00
Plate, cam
Loading…
↗
4
704−48265−00
Shaft, friction
Loading…
↗
5
701−48246−00
Spacer
Loading…
↗
6
93430−06024
Circlip (701)
Loading…
↗
7
EL8−48259−00
Circlip 1
Loading…
↗
8
704−48262−00
Shaft, throttle
Loading…
↗
9
704−48264−00
Friction, throttle
Loading…
↗
10
704−48266−00
Spacer 2
Loading…
↗
11
704−82540−10
Neutral switch assembly
Loading…
↗
12
6A5−48129−10
Screw, pan head (n151)
Loading…
↗
13
EL8−48281−00
Screw
Loading…
↗
14
704−48215−10
Graphic 1
Loading…
↗
15
704−48281−00
Screw1
Loading…
↗
16
97890−05025
Screw, panhead (a93)
Loading…
↗
17
704−48261−00
Arm, throttle
Loading…
↗
18
EL8−48191−00
Washer 1
Loading…
↗
19
704−48283−00
Screw,panhead (eg9)
Loading…
↗
20
97380−06018
Bolt (fj0)
Loading…
↗
21
703−48345−01
Cable end, remote control 2
Loading…
↗
22
704−48287−00
Washer 1
Loading…
↗
23
95380−05600
Nut, hexagon (663)
Loading…
↗
24
EL8−48271−00
Arm, shift
Loading…
↗
25
EL8−48127−00
Screw 1
Loading…
↗
26
703−48358−00
Anchor, cable
Loading…
↗
27
EL8−48231−00
Housing, gear
Loading…
↗
28
EL8−48241−00
Arm, drive
Loading…
↗
29
EL8−48254−00
30 −
Loading…
↗
30
92780−06020
Screw flat head
Loading…
↗
31
EL8−48158−00
Spring 1
Loading…
↗
32
98580−04006
Screw, pan head (7h3)
Loading…
↗
33
98780−05018
Screw (704)
Loading…
↗
34
EL8−48244−00
Spring, free accel.
Loading…
↗
35
EL8−48245−00
Plate, lock
Loading…
↗
36
704−48222−00
Grip, control lever
Loading…
↗
37
704−82594−00
Clamp
Loading…
↗
38
704−48228−00
Holder, switch
Loading…
↗
39
704−82563−31
Trim & tilt switch assembly
Loading…
↗
40
704−48229−00
Grip, control lever 2
Loading…
↗
41
92990−05300
Washer, tooth
Loading…
↗
42
95380−06600
Nut(661)
Loading…
↗
43
701−48248−00
Roller, free accel
Loading…
↗
44
703−48238−00
Spring, detent
Loading…
↗
45
EL8−48232−00
Gear 1
Loading…
↗
46
EL8−48164−00
Pin 2
Loading…
↗
47
704−48242−00
Shaft, drive
Loading…
↗
48
704−48225−00
Cover
Loading…
↗
49
704−48192−00
Washer 2
Loading…
↗
50
97890−06018
Screw, pan head(6e5)
Loading…
↗
51
92990−06300
Washer, tooth
Loading…
↗
52
702−48263−00
Bushing 4
Loading…
↗
53
EL8−48279−00
Circlip 2
Loading…
↗
54
704−48193−00
Washer 3
Loading…
↗
55
EL8−48234−00
Bushing 1
Loading…
↗
56
704−48219−00
Cover, lead
Loading…
↗
57
704−48144−00
Plate, stopper 2
Loading…
↗
58
704−48176−10
Grommet
Loading…
↗
59
703−48192−00
Washer 2
Loading…
↗
60
EL8−48233−00
Gear 2
Loading…
↗
61
703−48235−00
Bushing
Loading…
↗
62
704−48282−00
Screw 2
Loading…
↗
63
EL8−48153−10
Shaft, free accel.
Loading…
↗
64
704−48166−00
Plug
Loading…
↗
65
704−48284−00
Grommet
Loading…
↗
66
704−81950−00
Relay assembly
Loading…
↗
67
704−82590−10
Wireharness assembly
Loading…
↗
68
704−48229−10
Grip, control lever 2
Loading…
↗
69
704−82563−E0
Trim & tilt switch assembly
Loading…
↗
70
704−48228−10
Holder, switch
Loading…
↗
71
704−48128−00
Screw, pan head
Loading…
↗
72
704−48156−00
Nut 1
Loading…
↗
73
704−82563−F0
Trim & tilt switch assembly
Loading…
↗
74
704−48285−00
Grommet 2
Loading…
↗
75
704−48286−00
Grommet 3
Loading…
↗
76
704−48178−00
Plate, shift
Loading…
↗
77
704−48221−00
Lever control
Loading…
↗
78
704−48119−20
Cover
Loading…
↗
