Z200NETO (2002)
REMOTE CONTROL ASSY 2

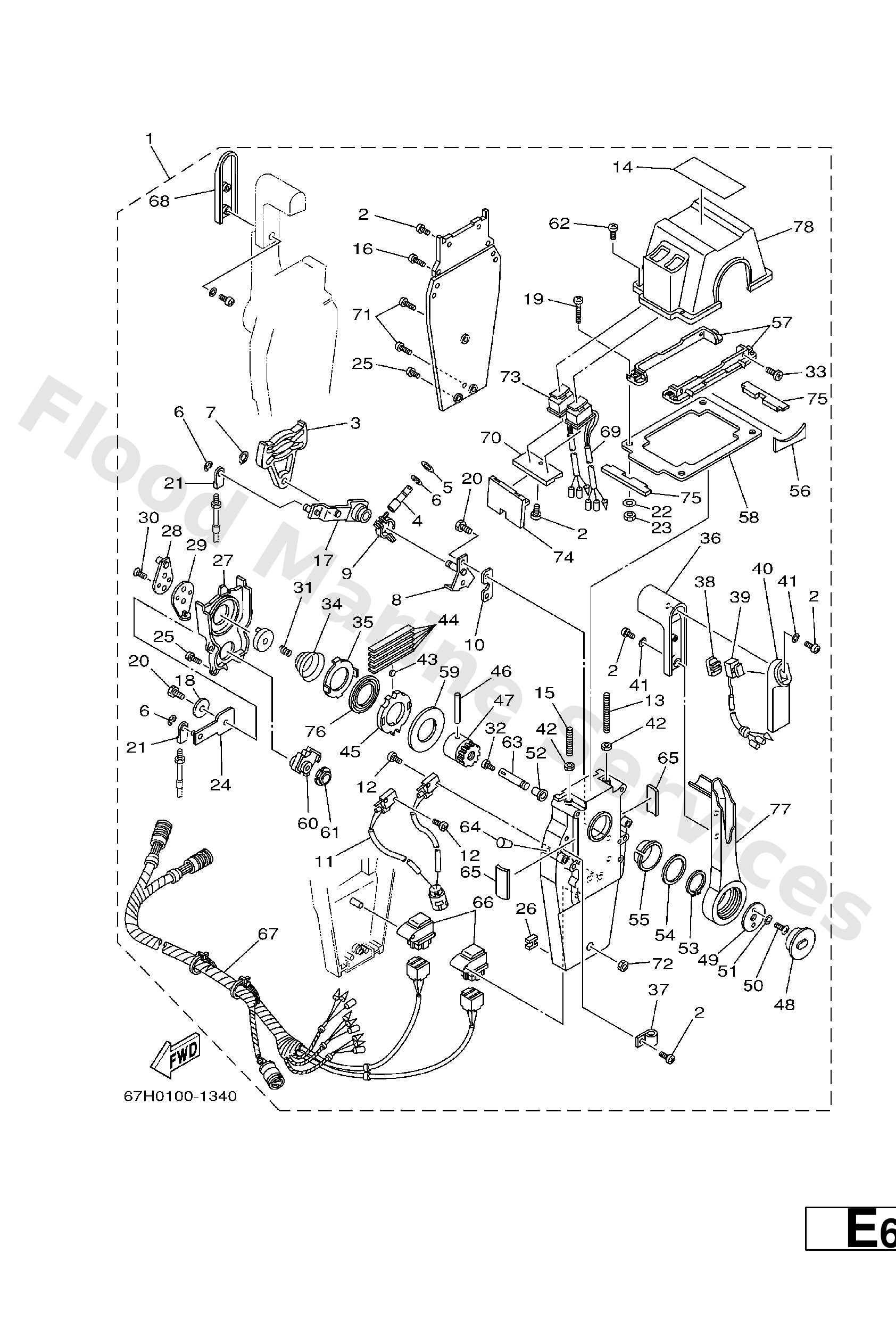

Diagram: REMOTE CONTROL ASSY 2
Parts List
Reference
Description
Price
1
704--48207--23
AP WITH PT/T SW.
30 −
Loading…
↗
2
97890--05016
Screw, pan head(6b0)
Loading…
↗
3
EL8--48251--00
Plate, cam
Loading…
↗
4
704--48265--00
Shaft, friction
Loading…
↗
5
701--48246--00
Spacer
Loading…
↗
6
93430--06024
Circlip (701)
Loading…
↗
7
EL8--48259--00
Circlip 1
Loading…
↗
8
704--48262--00
Shaft, throttle
Loading…
↗
9
704--48264--00
Friction, throttle
Loading…
↗
10
704--48266--00
Spacer 2
Loading…
↗
11
704--82540--10
Neutral switch assembly
Loading…
↗
12
6A5--48129--10
Screw, pan head (n151)
Loading…
↗
13
EL8--48281--00
Screw
Loading…
↗
14
704--48215--10
Graphic 1
Loading…
↗
15
704--48281--00
Screw1
Loading…
↗
16
97890--05025
Screw, panhead (a93)
Loading…
↗
17
704--48261--00
Arm, throttle
Loading…
↗
18
EL8--48191--00
Washer 1
Loading…
↗
19
704--48283--00
Screw,panhead (eg9)
Loading…
↗
20
97380--06018
Bolt (fj0)
Loading…
↗
21
703--48345--01
Cable end, remote control 2
Loading…
↗
22
704--48287--00
Washer 1
Loading…
↗
23
95380--05600
Nut, hexagon (663)
Loading…
↗
24
EL8--48271--00
Arm, shift
Loading…
↗
25
EL8--48127--00
Screw 1
Loading…
↗
26
703--48358--00
Anchor, cable
Loading…
↗
27
EL8--48231--00
Housing, gear
Loading…
↗
28
EL8--48241--00
Arm, drive
Loading…
↗
29
EL8--48254--00
Stopper, Throttle Adjusting
Loading…
↗
30
92780--06020
Screw flat head
Loading…
↗
31
EL8--48158--00
Spring 1
Loading…
↗
32
98580--04006
Screw, pan head (7h3)
Loading…
↗
33
98780--05018
Screw (704)
Loading…
↗
34
EL8--48244--00
Spring, free accel.
Loading…
↗
35
EL8--48245--00
Plate, lock
Loading…
↗
36
704--48222--00
Grip, control lever
Loading…
↗
37
704--82594--00
Clamp
Loading…
↗
38
704--48228--00
Holder, switch
Loading…
↗
39
704--82563--31
Trim & tilt switch assembly
Loading…
↗
40
704--48229--00
Grip, control lever 2
Loading…
↗
41
92990--05300
Washer, tooth
Loading…
↗
42
95380--06600
Nut(661)
Loading…
↗
43
701--48248--00
Roller, free accel
Loading…
↗
44
703--48238--00
Spring, detent
Loading…
↗
45
EL8--48232--00
Gear 1
Loading…
↗
46
EL8--48164--00
Pin 2
Loading…
↗
47
704--48242--00
Shaft, drive
Loading…
↗
48
704--48225--00
Cover
Loading…
↗
49
704--48192--00
Washer 2
Loading…
↗
50
97890--06018
Screw, pan head(6e5)
Loading…
↗
51
92990--06300
Washer, tooth
Loading…
↗
52
702--48263--00
Bushing 4
Loading…
↗
53
EL8--48279--00
Circlip 2
Loading…
↗
54
704--48193--00
Washer 3
Loading…
↗
55
EL8--48234--00
Bushing 1
Loading…
↗
56
704--48219--00
Cover, lead
Loading…
↗
57
704--48144--00
Plate, stopper 2
Loading…
↗
58
704--48176--10
Grommet
Loading…
↗
59
703--48192--00
Washer 2
Loading…
↗
60
EL8--48233--00
Gear 2
Loading…
↗
61
703--48235--00
Bushing
Loading…
↗
62
704--48282--00
Screw 2
Loading…
↗
63
EL8--48153--10
Shaft, free accel.
Loading…
↗
64
704--48166--00
Plug
Loading…
↗
65
704--48284--00
Grommet
Loading…
↗
66
704--81950--00
Relay assembly
Loading…
↗
67
704--82590--10
Wireharness assembly
Loading…
↗
68
704--48229--10
Grip, control lever 2
Loading…
↗
69
704--82563--E0
Trim & tilt switch assembly
Loading…
↗
70
704--48228--10
Holder, switch
Loading…
↗
71
704--48128--00
Screw, pan head
Loading…
↗
72
704--48156--00
Nut 1
Loading…
↗
73
704--82563--F0
Trim & tilt switch assembly
Loading…
↗
74
704--48285--00
Grommet 2
Loading…
↗
75
704--48286--00
Grommet 3
Loading…
↗
76
704--48178--00
Plate, shift
Loading…
↗
77
704--48221--00
Lever control
Loading…
↗
78
704--48119--20
Cover
Loading…
↗
