Rigging - Remote Control (2018)
REMOTE CONTROL ASSY 6

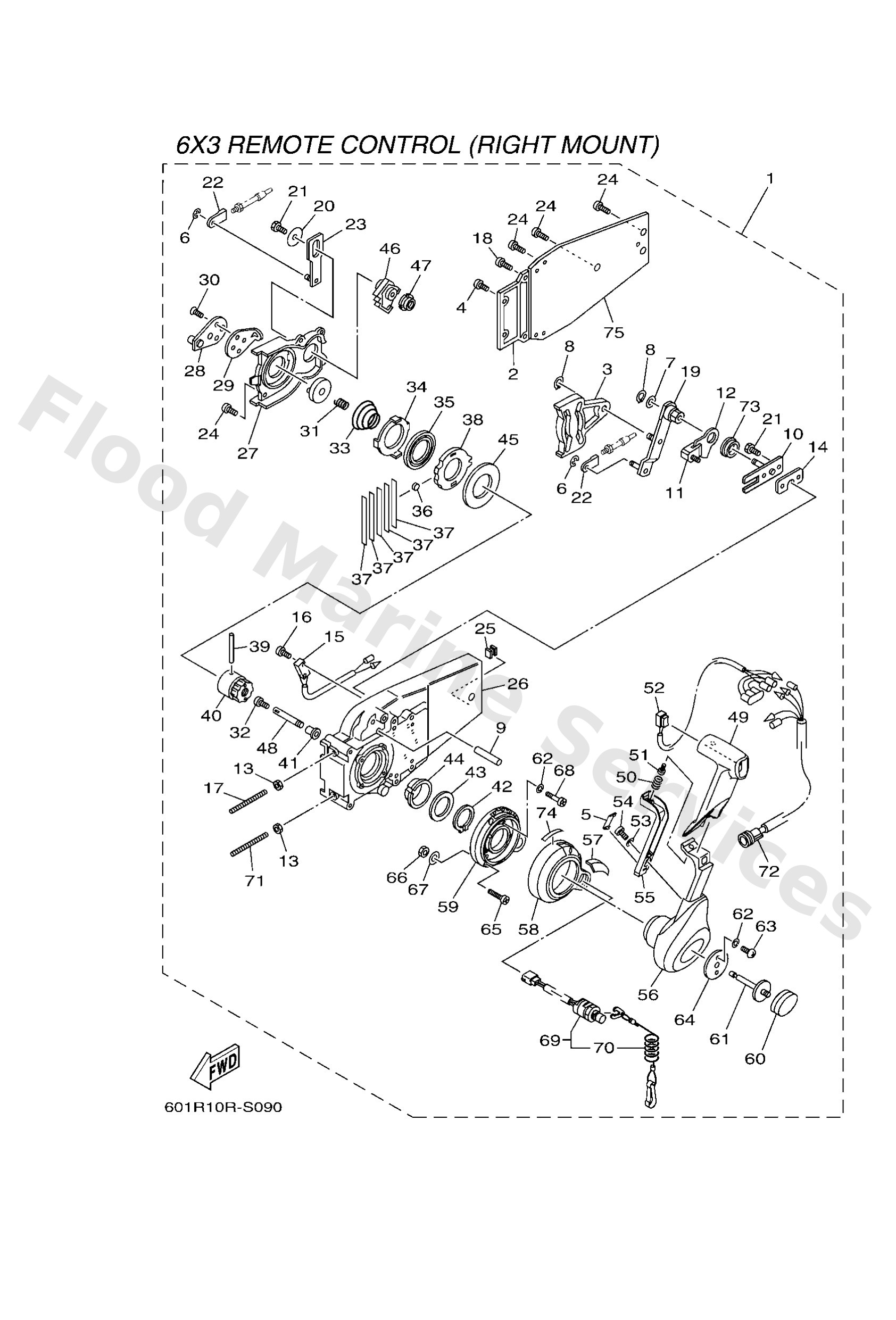

Diagram: REMOTE CONTROL ASSY 6
Parts List
Reference
Description
Price
1
6X34820610
FOR RIGHT MOUNT WITH PT/T SW.
6x3 single mec flush rc right
Loading…
↗
2
EL84821200
Back plate 1
Loading…
↗
3
EL84825100
Plate, cam
Loading…
↗
4
9789005016
Screw, pan head(6b0)
Loading…
↗
5
6X04813800
Cap, lock arm
Loading…
↗
6
9343006024
Circlip (701)
Loading…
↗
7
9299010600
Washer, plate
Loading…
↗
8
EL84825900
Circlip 1
Loading…
↗
9
6X04826500
Shaft, friction
Loading…
↗
10
6X04826200
-
Loading…
↗
11
6X04826400
Throttle, friction
Loading…
↗
12
6X04818700
Plate, adjust
Loading…
↗
13
9538006600
Nut(661)
Loading…
↗
14
7044826600
Spacer 2
Loading…
↗
15
7048254000
Neutral switch assembly
Loading…
↗
16
7034812900
Screw 3
Loading…
↗
17
EL84828100
Screw
Loading…
↗
18
9789005025
Screw, panhead (a93)
Loading…
↗
19
6X04826100
-
Loading…
↗
20
EL84819100
Washer 1
Loading…
↗
21
9738006018
Bolt (fj0)
Loading…
↗
22
7034834501
Cable end, remote control 2
Loading…
↗
23
EL84827100
Arm, shift
Loading…
↗
24
EL84812700
Screw 1
Loading…
↗
25
7034835800
Anchor, cable
Loading…
↗
26
6X04821100
Housing,1
Loading…
↗
27
EL84823100
Housing, gear
Loading…
↗
28
EL84824100
Arm, drive
Loading…
↗
29
EL84825400
-
Loading…
↗
30
9278006020
Screw flat head
Loading…
↗
31
EL84815800
Spring 1
Loading…
↗
32
9858004006
Screw, pan head (7h3)
Loading…
↗
33
EL84824400
Spring, free accel.
Loading…
↗
34
EL84824500
Plate, lock
Loading…
↗
35
7044817800
Plate, shift
Loading…
↗
36
7014824800
Roller, free accel
Loading…
↗
37
7044823800
Spring, detent
Loading…
↗
38
6X04812100
Gear 1
Loading…
↗
39
EL84816400
Pin 2
Loading…
↗
40
EL84824210
Shaft, Drive
Loading…
↗
41
7024826300
Bushing 4
Loading…
↗
42
EL84827900
Circlip 2
Loading…
↗
43
7044819300
Washer 3
Loading…
↗
44
EL84823400
Bushing 1
Loading…
↗
45
7034819200
Washer 2
Loading…
↗
46
EL84823300
Gear 2
Loading…
↗
47
7024823500
Bushing
Loading…
↗
48
6X04815300
Shaft, Free Accel.
Loading…
↗
49
6X34822210
Grip, control lever
Loading…
↗
50
7034822700
Spring, neutral lock
Loading…
↗
51
9858005008
Screw, pan head (7g3)
Loading…
↗
52
6X38256302
Trim & tilt switch assembly
Loading…
↗
53
6X04828800
Washer
Loading…
↗
54
6X04812700
Screw 1
Loading…
↗
55
6X04822300
Lock, neutral
Loading…
↗
56
6X34822110
Lever, control
Loading…
↗
57
6X34822510
Cover
Loading…
↗
58
6X34822500
Cover
Loading…
↗
59
6X34811100
Body, remote control 1
Loading…
↗
60
6X34822530
Cover
Loading…
↗
61
6X04815500
Plunger
Loading…
↗
62
9299005300
Washer, tooth
Loading…
↗
63
6X04828100
Screw
Loading…
↗
64
6X04819300
Washer 3
Loading…
↗
65
9789006035
UR
Screw, pan head(6h4)
Loading…
↗
65
6X04812800
UR
Screw 2
Loading…
↗
66
6X04815600
Nut 1
Loading…
↗
67
7014828700
Washer 1
Loading…
↗
68
6X34812900
Screw 3
Loading…
↗
69
6X38257501
Engine stop switch assembly
Loading…
↗
70
6828255600
Lanyard, stop switch
Loading…
↗
71
7044828100
Screw1
Loading…
↗
72
7048254110
Extension, wire lead
Loading…
↗
73
6X04811600
Bushing
Loading…
↗
74
6X34419100
Indicator, shift
Loading…
↗
75
EL84821300
Back plate 2
Loading…
↗
