Rigging - Remote Control (2025)
REMOTE CONTROL ASSY 6

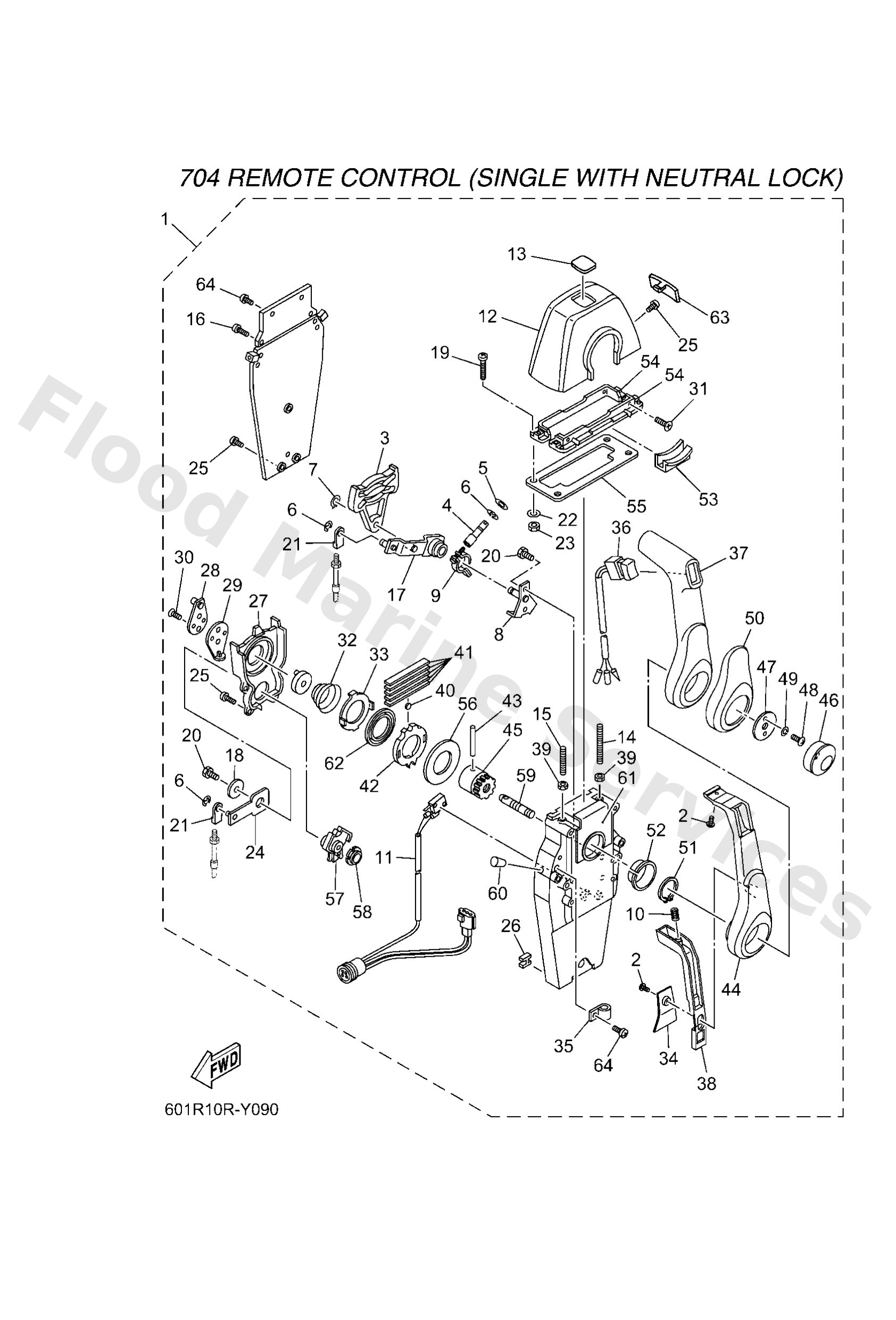

Diagram: REMOTE CONTROL ASSY 6
Parts List
Reference
Description
Price
1
70448205T0
FOR SINGLE WITH PT/T SW.
704 single top mount (mec rc)
Loading…
↗
2
70448127T0
Screw 1
Loading…
↗
3
EL84825100
Plate, cam
Loading…
↗
4
7044826500
Shaft, friction
Loading…
↗
5
7014824600
Spacer
Loading…
↗
6
9343006024
Circlip (701)
Loading…
↗
7
EL84825900
Circlip 1
Loading…
↗
8
7044826200
Shaft, throttle
Loading…
↗
9
7044826400
Friction, throttle
Loading…
↗
10
7034822700
Spring, neutral lock
Loading…
↗
11
7048254040
Neutral switch assembly
Loading…
↗
12
70448119T0
Cover
Loading…
↗
13
7044821561
Graphic
Loading…
↗
14
EL84828100
Screw
Loading…
↗
15
7044828100
Screw1
Loading…
↗
16
9789005025
Screw, panhead (a93)
Loading…
↗
17
7044826100
Arm, throttle
Loading…
↗
18
EL84819100
Washer 1
Loading…
↗
19
7044828300
Screw,panhead (eg9)
Loading…
↗
20
9738006018
Bolt (fj0)
Loading…
↗
21
7034834501
Cable end, remote control 2
Loading…
↗
22
7044828700
Washer 1
Loading…
↗
23
9538005600
Nut, hexagon (663)
Loading…
↗
24
7044827100
Arm, shift
Loading…
↗
25
EL84812700
Screw 1
Loading…
↗
26
7034835801
Anchor, cable
Loading…
↗
27
7044823100
Housing, gear
Loading…
↗
28
EL84824100
Arm, drive
Loading…
↗
29
EL84825400
Stopper Throttle Adjusting
Loading…
↗
30
9278006020
Screw flat head
Loading…
↗
31
9878005018
Screw (704)
Loading…
↗
32
EL84824400
Spring, free accel.
Loading…
↗
33
EL84824500
Plate, lock
Loading…
↗
34
70448229T0
Grip, Control Lever
Loading…
↗
35
7048259400
Clamp
Loading…
↗
36
7048256360
Trim & tilt switch assembly
Loading…
↗
37
70448222T0
-
Loading…
↗
38
7044822300
-
Loading…
↗
39
9538006600
Nut(661)
Loading…
↗
40
7014824800
Roller, free accel
Loading…
↗
41
7044823800
Spring, detent
Loading…
↗
42
70448232P1
Gear
Loading…
↗
43
EL84816400
Pin 2
Loading…
↗
44
70448221T0
Lever, Control
Loading…
↗
45
7044824210
Shaft, drive
Loading…
↗
46
70448225R0
Cover
Loading…
↗
47
7044819200
Washer 2
Loading…
↗
48
9789006018
Screw, pan head(6e5)
Loading…
↗
49
9299006300
Washer, tooth
Loading…
↗
50
70448224T0
-
Loading…
↗
51
EL84827900
Circlip 2
Loading…
↗
52
7044823400
Bushing 1
Loading…
↗
53
70448219T0
Cover, Lead
Loading…
↗
54
70448144T0
Plate, Stopper 2
Loading…
↗
55
7044817601
Grommet
Loading…
↗
56
70448192P0
Washer 2
Loading…
↗
57
7044823300
Gear 2
Loading…
↗
58
7044823500
Bushing
Loading…
↗
59
7044815300
Shaft, free accel.
Loading…
↗
60
7044816600
Plug
Loading…
↗
61
70448284P0
Grommet
Loading…
↗
62
7044817810
Plate, shift
Loading…
↗
63
7044816720
Plug
Loading…
↗
64
9789005016
Screw, pan head(6b0)
Loading…
↗
