Rigging - Remote Control (2012)
REMOTE CONTROL ASSY 9

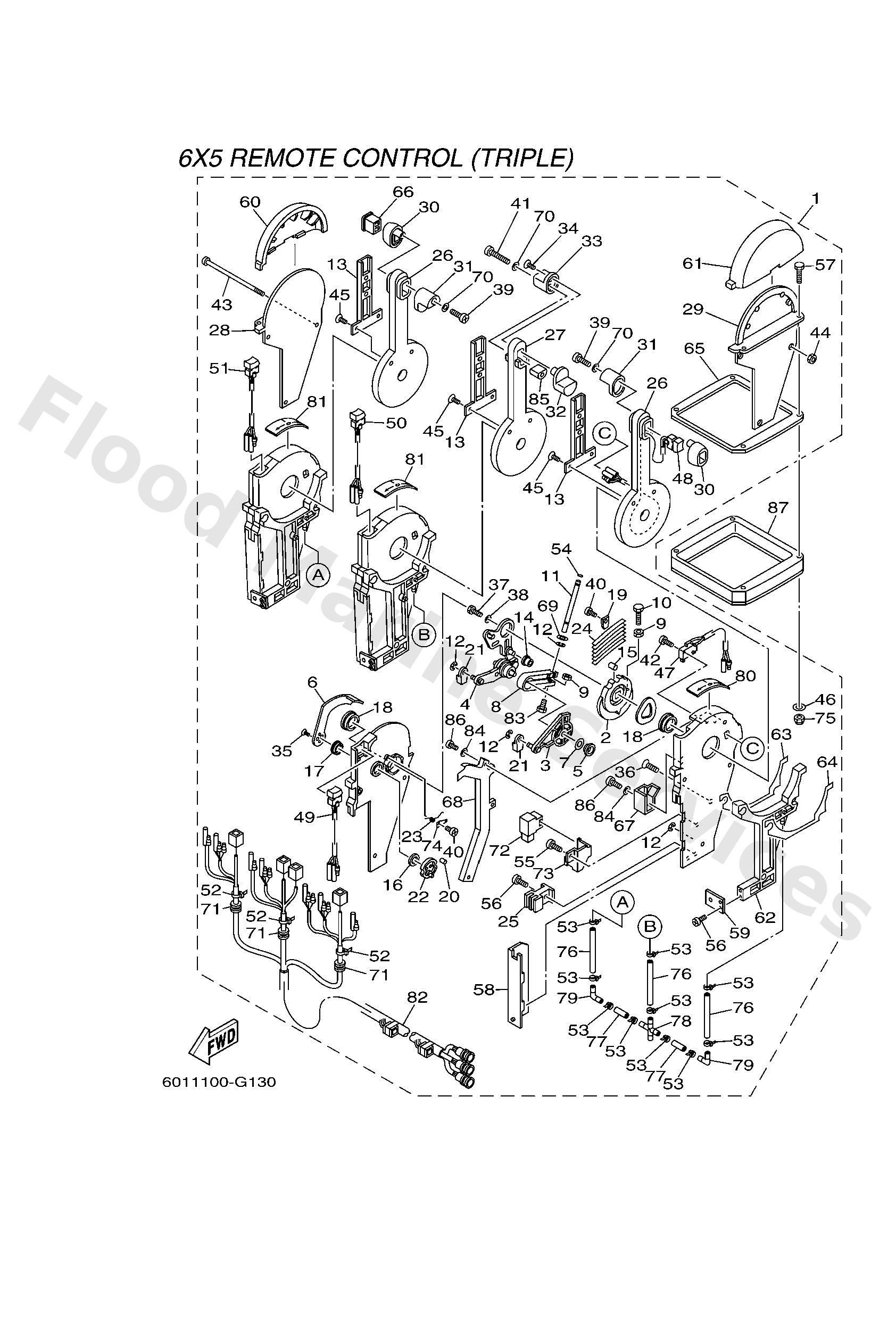

Diagram: REMOTE CONTROL ASSY 9
Parts List
Reference
Description
Price
1
6X54820701
WITH PT/T SW.
-
Loading…
↗
2
6X54823200
Gear
Loading…
↗
3
6X54827100
Arm, shift
Loading…
↗
4
6X54826100
Arm, throttle
Loading…
↗
5
7034823500
Bushing
Loading…
↗
6
6X54815200
Knob, free accel.
Loading…
↗
7
7034826800
Spacer 3
Loading…
↗
8
6X54826400
Friction, throttle
Loading…
↗
9
9538005600
Nut, hexagon (663)
Loading…
↗
10
9738005025
Bolt
Loading…
↗
11
6X54826500
Shaft, friction
Loading…
↗
12
9343006024
Circlip (701)
Loading…
↗
13
6X54822400
Cover, control lever
Loading…
↗
14
7034825200
Roller, cam
Loading…
↗
15
7014824800
Roller, free accel
Loading…
↗
16
7034819800
Washer, wave 3
Loading…
↗
17
7034824300
Bushing 3
Loading…
↗
18
7034823600
Bushing
Loading…
↗
19
7034818900
Retainer
Loading…
↗
20
7034823400
Roller, detent
Loading…
↗
21
7034834501
Cable end, remote control 2
Loading…
↗
22
7034815300
Shaft, free accel.
Loading…
↗
23
7034824400
Spring, free accel.
Loading…
↗
24
7034823800
Spring, detent
Loading…
↗
25
6X54835800
Anchor, cable
Loading…
↗
26
6X54822100
Lever, control
Loading…
↗
27
6X54822110
Lever, control
Loading…
↗
28
6X54814410
Plate, stopper 2
Loading…
↗
29
6X54814400
Plate, stopper 2
Loading…
↗
30
6X54822900
Grip, Control Lever
Loading…
↗
31
6X54822200
Grip, Control Lever
Loading…
↗
32
6X54822910
Grip, control lever
Loading…
↗
33
6X54822210
Grip, control lever
Loading…
↗
34
6X54812700
Screw 1
Loading…
↗
35
7034812800
Screw 2
Loading…
↗
36
6X54812900
Screw 3
Loading…
↗
37
9738008030
Bolt, hexagon (fj1)
Loading…
↗
38
9299008200
Ybs66-8 washer, plain
Loading…
↗
39
6X54812710
Screw 1
Loading…
↗
40
9858004006
Screw, pan head (7h3)
Loading…
↗
41
6X54812720
Screw 1
Loading…
↗
42
9858003015
Screw, pan head (n151)
Loading…
↗
43
6X54826700
Bolt set
Loading…
↗
44
6X04815600
Nut 1
Loading…
↗
45
9878004010
Screw, flat head
Loading…
↗
46
7044828700
Washer 1
Loading…
↗
47
6X58254000
Neutral switch assembly
Loading…
↗
48
6X58256301
Trim & tilt switch assembly
Loading…
↗
49
6X58256311
Trim & tilt switch assembly
Loading…
↗
50
6X58256321
Trim & tilt switch assembly
Loading…
↗
51
6X58256331
Trim & tilt switch assembly
Loading…
↗
52
7038259100
Band
Loading…
↗
53
6X44282100
Band, clamp
Loading…
↗
54
6X54835100
Seal, rubber
Loading…
↗
55
9858005010
Screw, pan head(62x)
Loading…
↗
56
9858005012
Screw,pan head (646)
Loading…
↗
57
9858005040
UR
Screw,panhead (eg9)
Loading…
↗
57
9778005130
UR
Screw, tapping
Loading…
↗
58
6X54821300
Back plate 2
Loading…
↗
59
6X54835400
Set-plate, cable
Loading…
↗
60
6X54811910
Cover
Loading…
↗
61
6X54811900
Cover
Loading…
↗
62
6X54824600
Spacer
Loading…
↗
63
6X54821400
Pad
Loading…
↗
64
6X54821410
Pad
Loading…
↗
65
6X54817600
Grommet
Loading…
↗
66
6X54822220
Grip, Control Lever
Loading…
↗
67
6X54821900
Cover, lead
Loading…
↗
68
6X54822500
Cover
Loading…
↗
69
9299008600
Washer, plain (663)
Loading…
↗
70
9299005300
Washer, tooth
Loading…
↗
71
6X54817500
Boot
Loading…
↗
72
7048195010
Relay assembly
Loading…
↗
73
6X54822800
Holder, switch
Loading…
↗
74
7034824600
Spacer 1
Loading…
↗
75
9538006600
Nut(661)
Loading…
↗
76
6X54831700
Tube
Loading…
↗
77
6X54831710
Tube
Loading…
↗
78
6X54833800
Connector
Loading…
↗
79
6X54833810
Connector
Loading…
↗
80
6X54821500
Graphic
Loading…
↗
81
6X54821510
Graphic
Loading…
↗
82
6X58259000
Wire Harness assembly
Loading…
↗
84
9299005200
Ybs66-5 washer, plain
Loading…
↗
85
6X54822230
Grip, control lever
Loading…
↗
87
6X54829300
LM
Spacer, Remote Control
Loading…
↗
