15FWC (2002)
REMOTE CONTROL ATTACHMENT

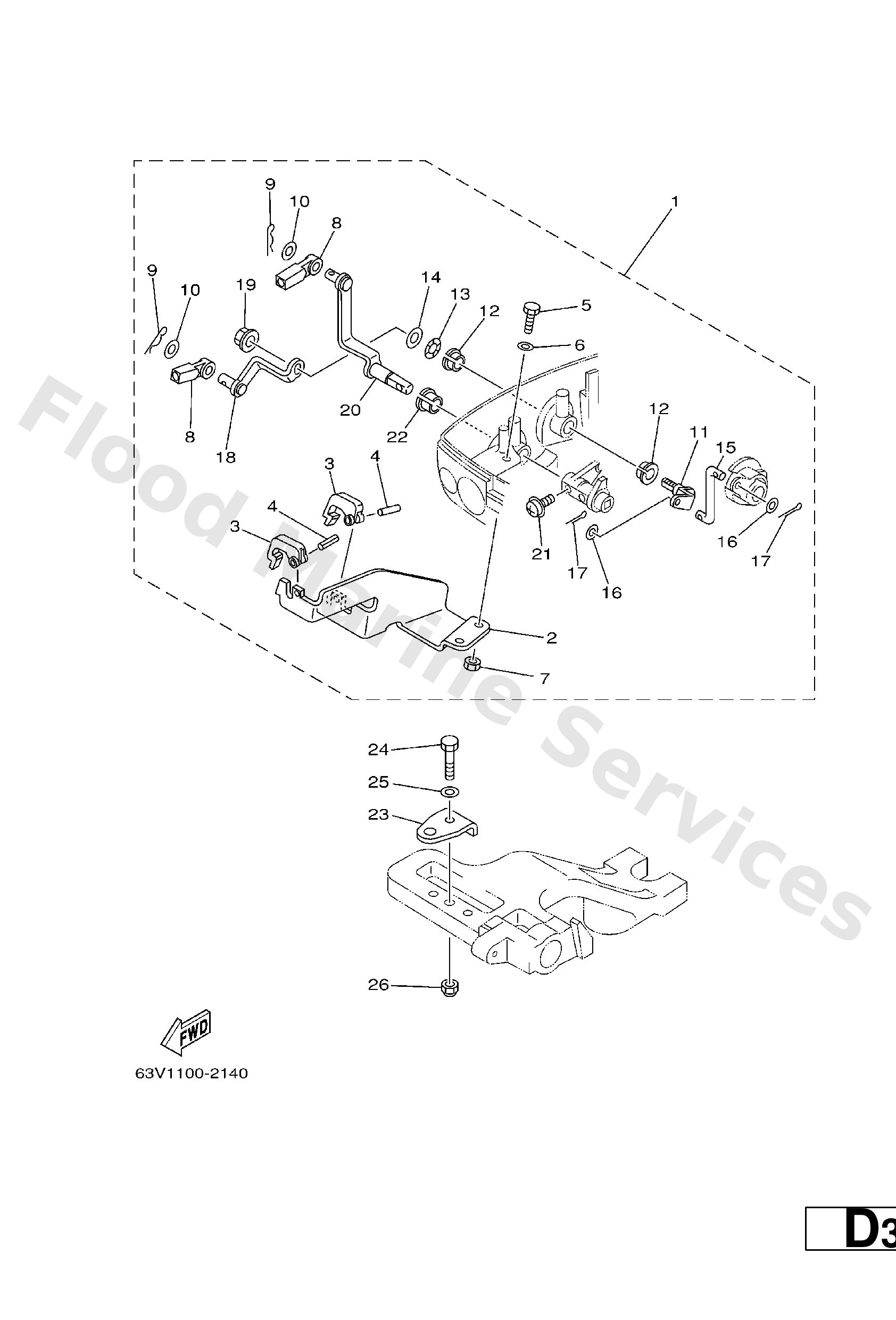

Diagram: REMOTE CONTROL ATTACHMENT
Parts List
Reference
Description
Price
1
63V--48501--00
AP
Remote cont. attachment assembly
Loading…
↗
2
63V--48531--00
Bracket, remote control 1
Loading…
↗
3
682--48538--50
Clamp, cable
Loading…
↗
4
91690--30012
Pin, spring
Loading…
↗
5
97095--06016
Bolt, hexagon deep recess
Loading…
↗
6
92995--06600
Washer, plain (646)
Loading…
↗
7
95380--06600
Nut(661)
Loading…
↗
8
663--48344--00
Cable end, remote control
Loading…
↗
9
90468--18008
Clip 620436610000
Loading…
↗
10
90201--08M12
Washer plate (682)
Loading…
↗
11
63V--42154--00
Lever, throttle control
Loading…
↗
12
90386--10025
Bushing (658)
Loading…
↗
13
90206--10M04
Washer, wave (676)
Loading…
↗
14
90201--10M02
Washer, plate(6g9)
Loading…
↗
15
63V--42192--00
Rod 2
Loading…
↗
16
90201--04M06
Washer, plate(26h)
Loading…
↗
17
91490--20010
Pin, cotter
Loading…
↗
18
63V--48534--00
Throttle lever, control
Loading…
↗
19
95780--08300
Nut, nylon (6j8)
Loading…
↗
20
63V--48544--00
Lever, shiftcontrol
Loading…
↗
21
90159--05M25
Screw,pan head (646)
Loading…
↗
22
90386--10009
Bushing 6484418600
Loading…
↗
23
63V--48511--01
AP
Hook, steering
Loading…
↗
24
97075--08035
AP
Bolt(70w)
Loading…
↗
25
92995--08600
AP
Washer, plain (663)
Loading…
↗
26
90185--08057
AP
Nut, nylon (6j8)
Loading…
↗
