25MHB3 (2003)
REMOTE CONTROL ATTACHMENT

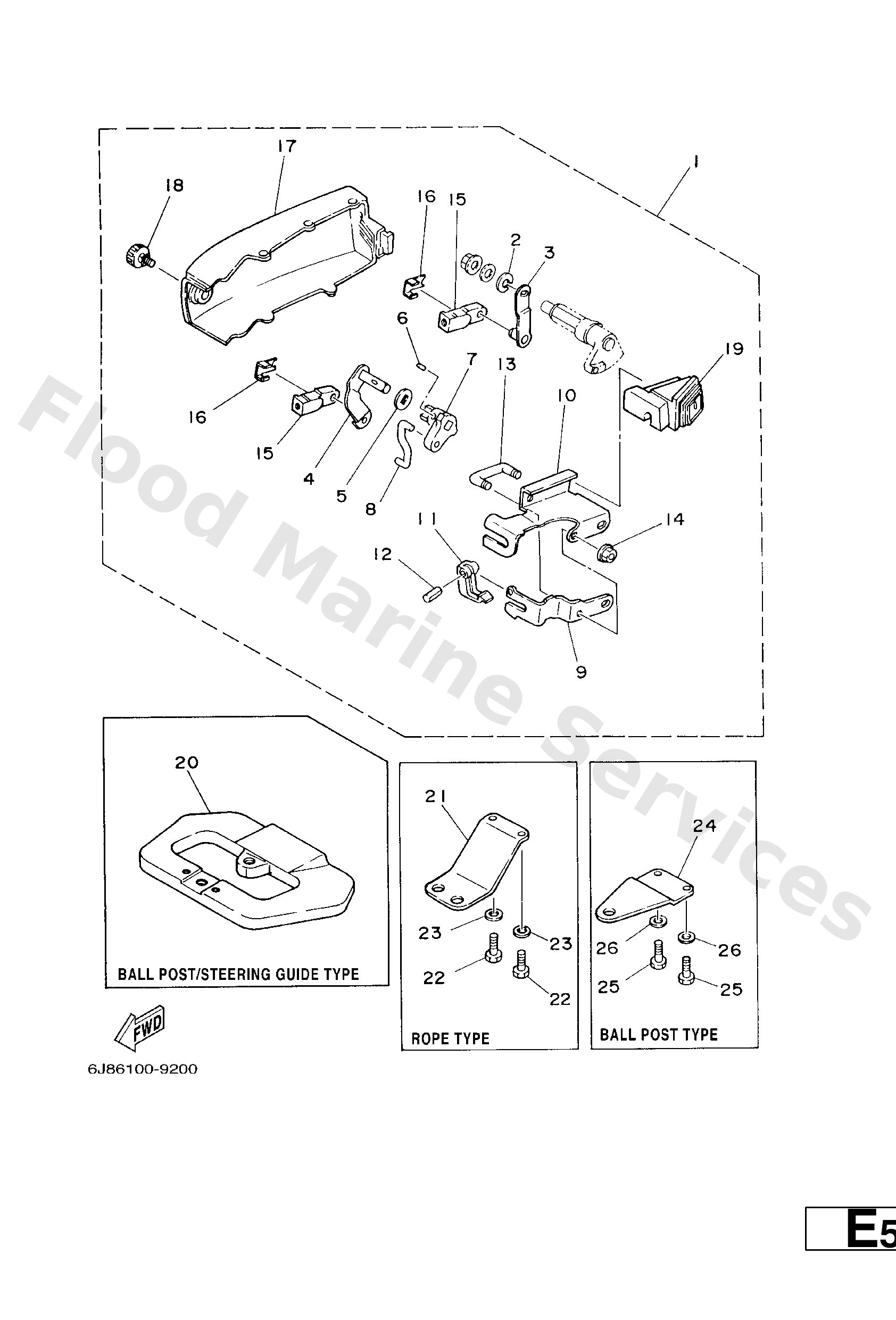

Diagram: REMOTE CONTROL ATTACHMENT
Parts List
Reference
Description
Price
1
6J8−48501−11
AP
Attachment kit
Loading…
↗
1
6J8−48501−03−4D
AP
Remocon attachment assembly
Loading…
↗
2
92990−08100
Ybs67-8 washer, spring
Loading…
↗
3
6J8−48534−00
Throttle lever, control
Loading…
↗
4
6J8−48544−01
Lever, shiftcontrol
Loading…
↗
5
6J8−44177−00
Washer
Loading…
↗
6
90254−03M03
Pin, spring
Loading…
↗
7
6J8−44173−02
Lever, shift control
Loading…
↗
8
6J8−42169−01
Joint
Loading…
↗
9
6J8−48531−00
Bracket, remote control
Loading…
↗
10
6J8−48532−00
Bracket, remote control 2
Loading…
↗
11
682−48538−50
Clamp, cable
Loading…
↗
12
91690−30012
Pin, spring
Loading…
↗
13
90109−06M29
Bolt(6j8)
Loading…
↗
14
90179−06M24
Nut(6j8)
Loading…
↗
15
6G8−26363−00
End, wire 1
Loading…
↗
16
6G8−26364−00
End, wire 2
Loading…
↗
17
6J8−42723−51
Cover, bottom (dbn:gray)
Loading…
↗
18
6J8−42846−00
Screw
Loading…
↗
19
6J8−42724−10
Grommet
Loading…
↗
20
6J8−48511−01−4D
AP BALL POST/
Hook, steering
Loading…
↗
21
6G8−48511−00
AP ROPE TYPE
Hook, steering
Loading…
↗
22
97095−06016
AP
Bolt, hexagon deep recess
Loading…
↗
23
92995−06600
AP
Washer, plain (646)
Loading…
↗
24
6G8−48511−10
AP BALL POST TYPE
Hook, steering
Loading…
↗
