Yamaha Outboard Parts - REMOTE CONTROL ATTACHMENT - E40XMH (2002) | Flood Marine

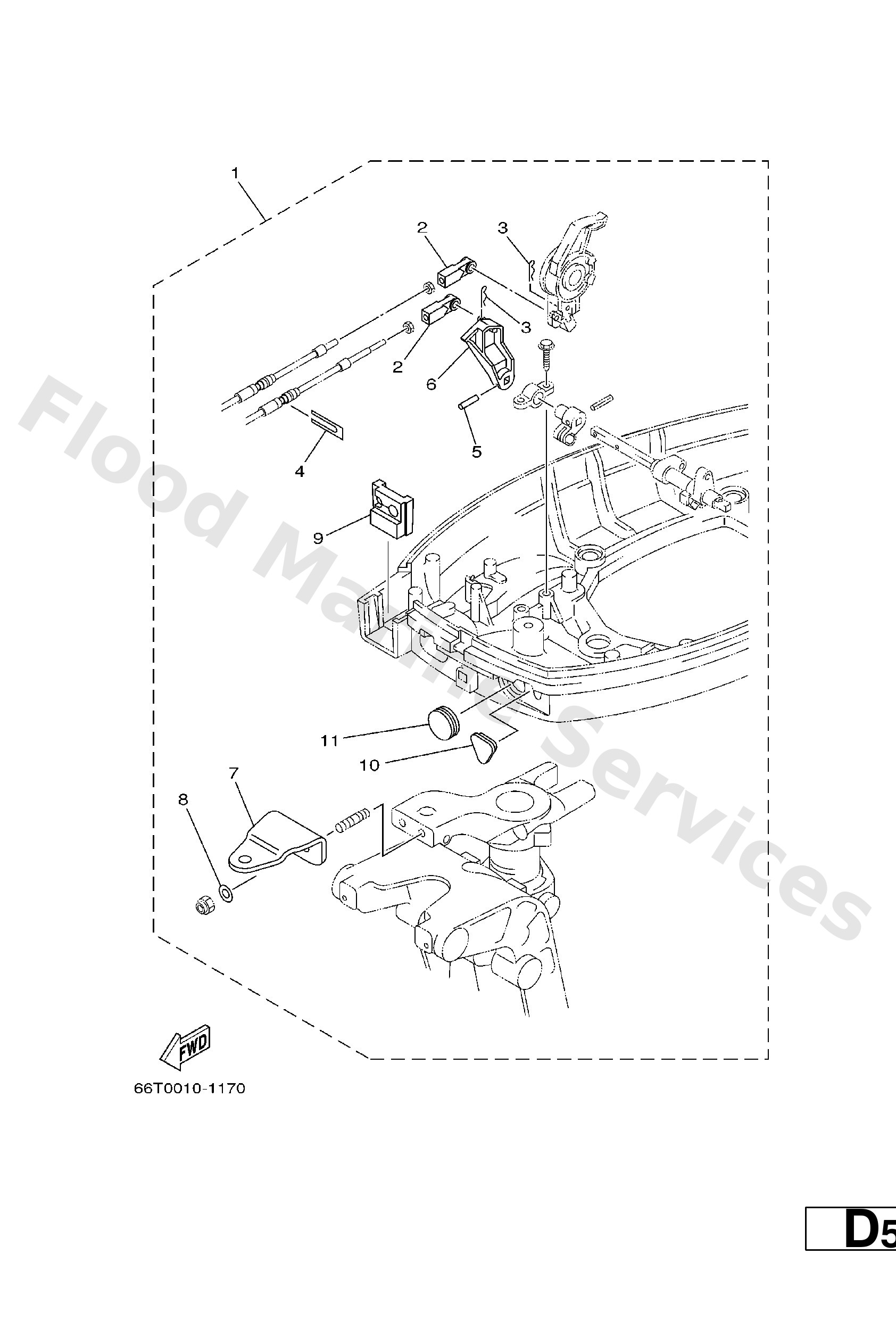

Diagram: REMOTE CONTROL ATTACHMENT

Diagram

Parts List

Reference
Description
Price


1
66T--48501--01 AP
Remote cont. attachment assembly.
Loading…

↗
2
663--48344--00
Cable end, remote control
Loading…

↗
3
90468--18008
Clip 620436610000
Loading…

↗
4
6H3--48538--00
Clamp, cable
Loading…

↗
5
90254--03M04
Pin, spring (6h3)
Loading…

↗
6
66T--44125--01
Lever, shift rod
Loading…

↗
7
65W--48511--00
Hook, steering
Loading…

↗
8
90201--10120
Washer, plate
Loading…

↗
9
66T--42725--30
Grommet
Loading…

↗
10
65W--26326--10
Grommet
Loading…

↗
11
65W--42726--10
Grommet
Loading…

↗
