E8DMH (2003)
REMOTE CONTROL ATTACHMENT

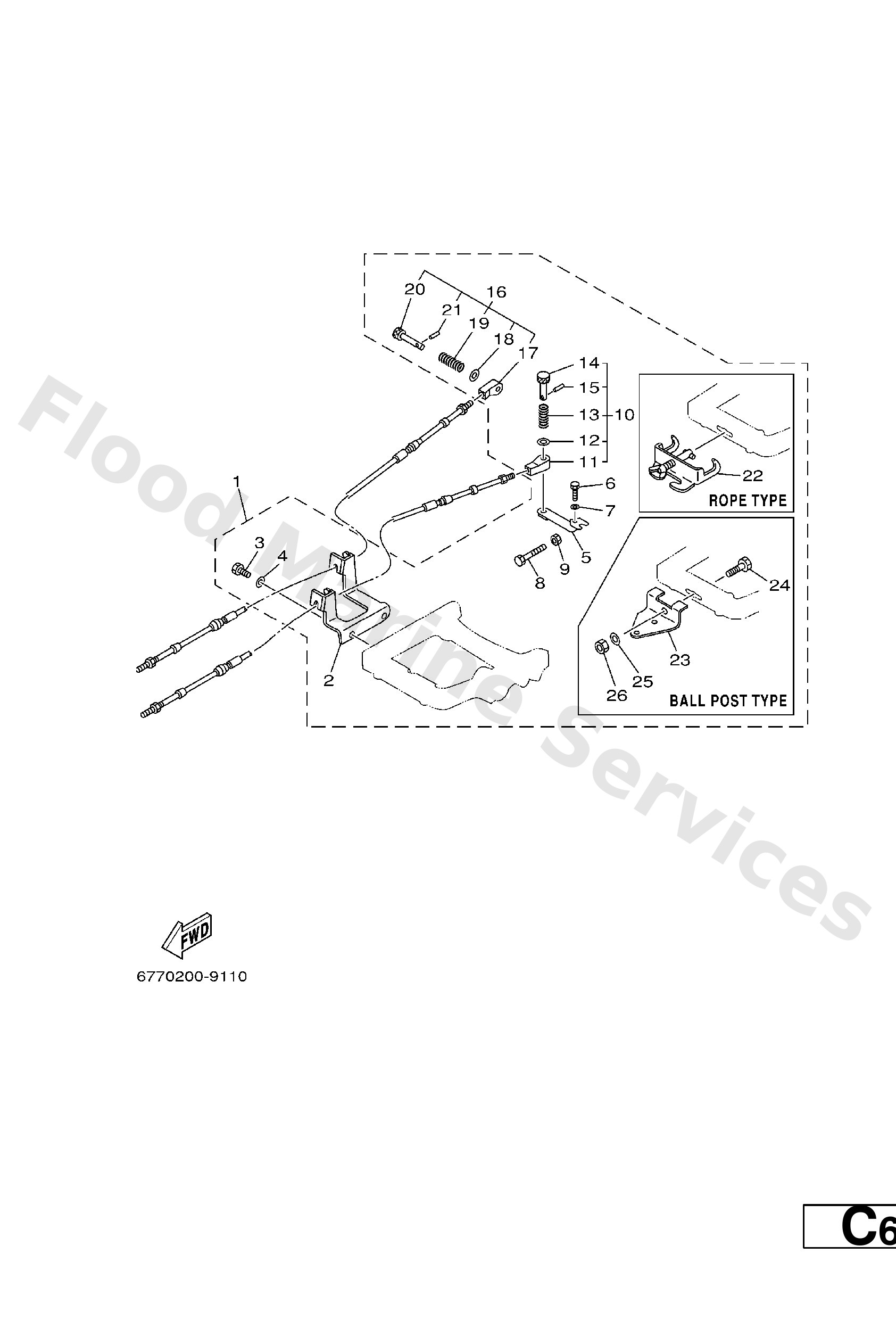

Diagram: REMOTE CONTROL ATTACHMENT
Parts List
Reference
Description
Price
1
655−48501−10
AP BALL POST TYPE
Attachment assembly
Loading…
↗
1
655−48501−02
AP ROPE TYPE
11 −
Loading…
↗
2
655−48531−51
Bracket, remote control 1
Loading…
↗
3
97095−06018
Bolt (fj0)
Loading…
↗
4
92995−06600
Washer, plain (646)
Loading…
↗
5
647−48534−50
Throttle lever, control
Loading…
↗
6
97095−05020
Bolt, hexagon
Loading…
↗
7
92995−05600
Washer, plain (646)
Loading…
↗
8
97090−06045
Bolt
Loading…
↗
9
95380−06600
Nut(661)
Loading…
↗
10
647−48330−50
Cable end assembly (sfift)
Loading…
↗
11
617−48346−90
Cable end, remote control
Loading…
↗
12
92990−08600
Washer, plain (663)
Loading…
↗
13
90501−10071
Spring 6044833200
Loading…
↗
14
617−48331−91
Hook, cable
Loading…
↗
15
91690−30012
Pin, spring
Loading…
↗
16
647−48340−50
Cable end assembly (throttle)
Loading…
↗
17
647−48346−50
Cable end, remote control
Loading…
↗
19
90501−10264
Spring 6174833290
Loading…
↗
20
617−48361−91
Hook, cable
Loading…
↗
22
700−48510−12
ROPE TYPE
Hook steering assembly
Loading…
↗
23
676−48511−10
BALL POST TYPE
Hook, steering
Loading…
↗
24
97075−10040
Bolt, hexagon deep recess
Loading…
↗
25
92990−10600
Washer, plate
Loading…
↗
26
90185−10051
Nut, self-locking
Loading…
↗
