Yamaha Outboard Parts - REMOTE CONTROL ATTACHMENT - F20AE (2002) | Flood Marine
New Search
Parts
New Outboards
Home
F20AE (2002)
REMOTE CONTROL ATTACHMENT

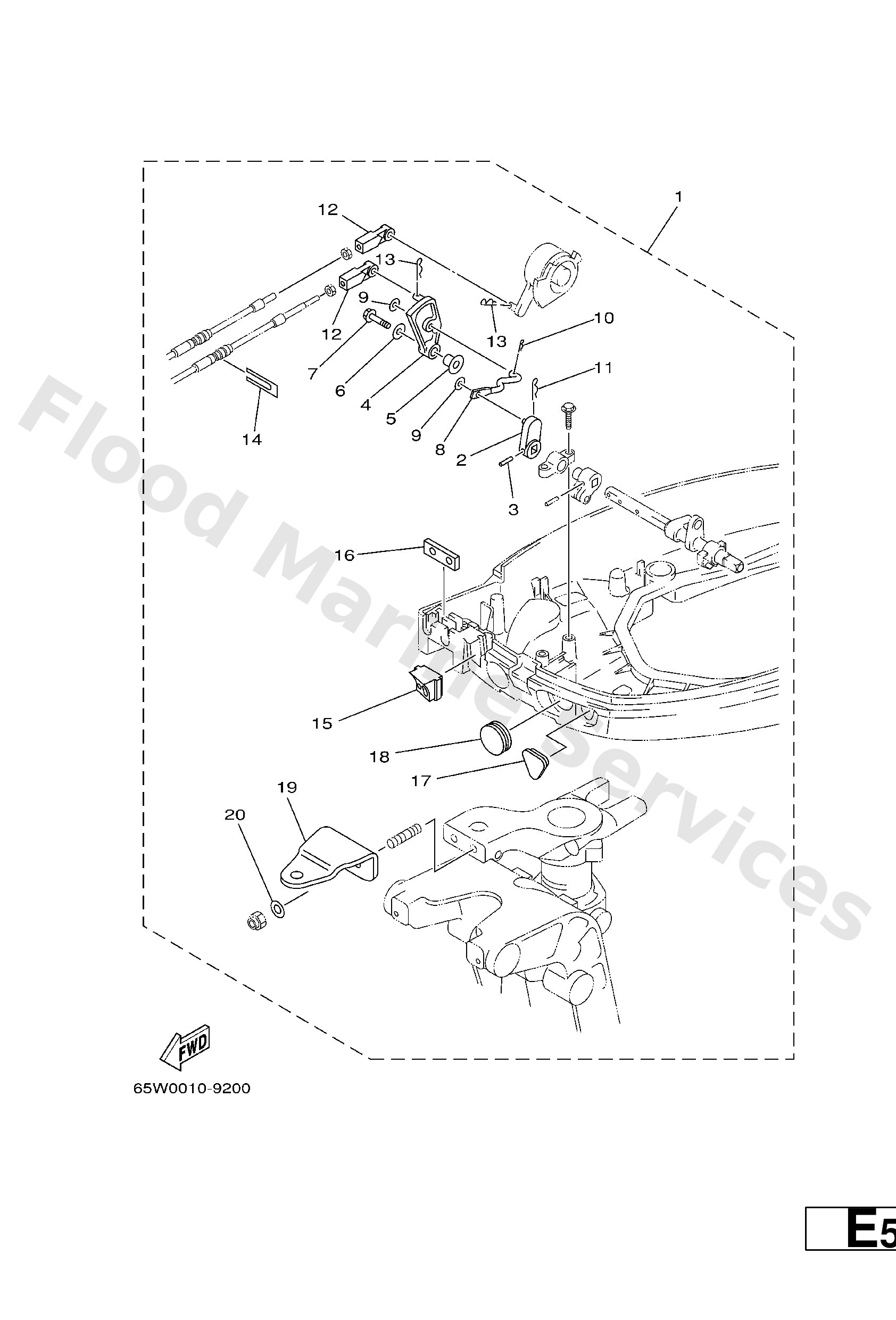

Diagram: REMOTE CONTROL ATTACHMENT
Parts List
Reference
Description
Price
1
65W4850100
AP
Remote cont. attachment assembly.
Loading…
↗
2
65W4414200
Joint
Loading…
↗
3
9025403M05
Pin, spring
Loading…
↗
4
65W4412500
Lever, shift rod
Loading…
↗
5
9038706M29
Coller (6a0)
Loading…
↗
6
9020106M31
Washer (6a0)
Loading…
↗
7
9759506525
Bolt, hexagon w/w deep recess
Loading…
↗
8
65W4419200
Joint, rod 1
Loading…
↗
9
9020105M06
Washer, plate(61u)
Loading…
↗
10
9046810005
Pin, hair 6264123500
Loading…
↗
11
9046818008
Clip 620436610000
Loading…
↗
12
6634834400
Cable end, remote control
Loading…
↗
14
6H34853800
Clamp, cable
Loading…
↗
15
65W4272520
Grommet
Loading…
↗
16
62Y4272700
Grommet
Loading…
↗
17
65W2632610
Grommet
Loading…
↗
18
65W4272610
Grommet
Loading…
↗
19
65W4851100
Hook, steering
Loading…
↗
20
9020110120
Washer, plate
Loading…
↗
