F25AE (2003)
REMOTE CONTROL ATTACHMENT

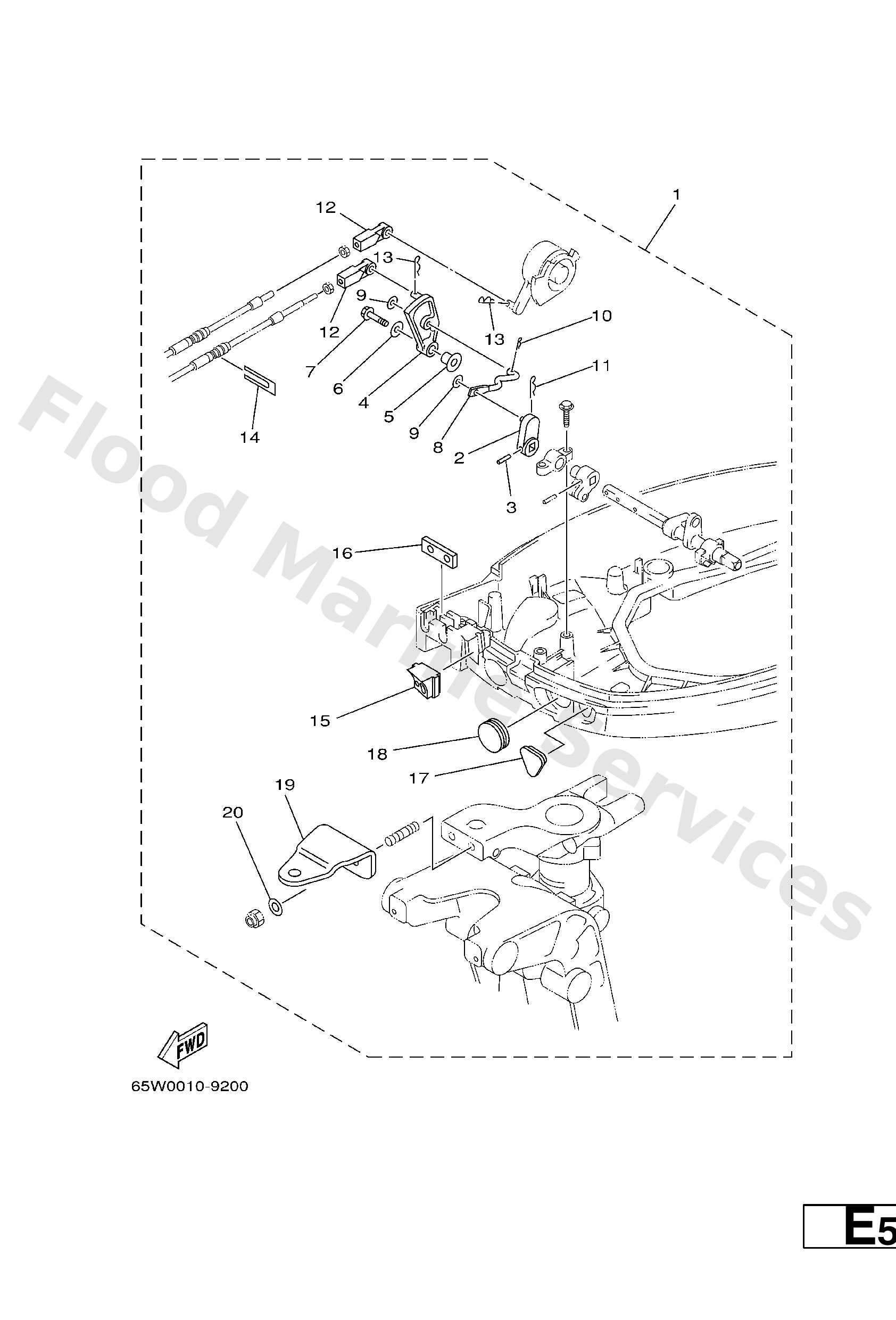

Diagram: REMOTE CONTROL ATTACHMENT
Parts List
Reference
Description
Price
1
65W−48501−00
AP
Remote cont. attachment assembly.
Loading…
↗
2
65W−44142−00
Joint
Loading…
↗
3
90254−03M05
Pin, spring
Loading…
↗
4
65W−44125−00
Lever, shift rod
Loading…
↗
5
90387−06M29
Coller (6a0)
Loading…
↗
6
90201−06M31
Washer (6a0)
Loading…
↗
7
97595−06525
Bolt, hexagon w/w deep recess
Loading…
↗
8
65W−44192−00
Joint, rod 1
Loading…
↗
9
90201−05M06
Washer, plate(61u)
Loading…
↗
10
90468−10005
Pin, hair 6264123500
Loading…
↗
11
90468−18008
Clip 620436610000
Loading…
↗
12
663−48344−00
Cable end, remote control
Loading…
↗
14
6H3−48538−00
Clamp, cable
Loading…
↗
15
65W−42725−20
Grommet
Loading…
↗
16
62Y−42727−00
Grommet
Loading…
↗
17
65W−26326−10
Grommet
Loading…
↗
18
65W−42726−10
Grommet
Loading…
↗
19
65W−48511−00
Hook, steering
Loading…
↗
20
90201−10120
Washer, plate
Loading…
↗
