Yamaha Outboard Parts - REMOTE CONTROL ATTACHMENT - FT25BED (2002) | Flood Marine

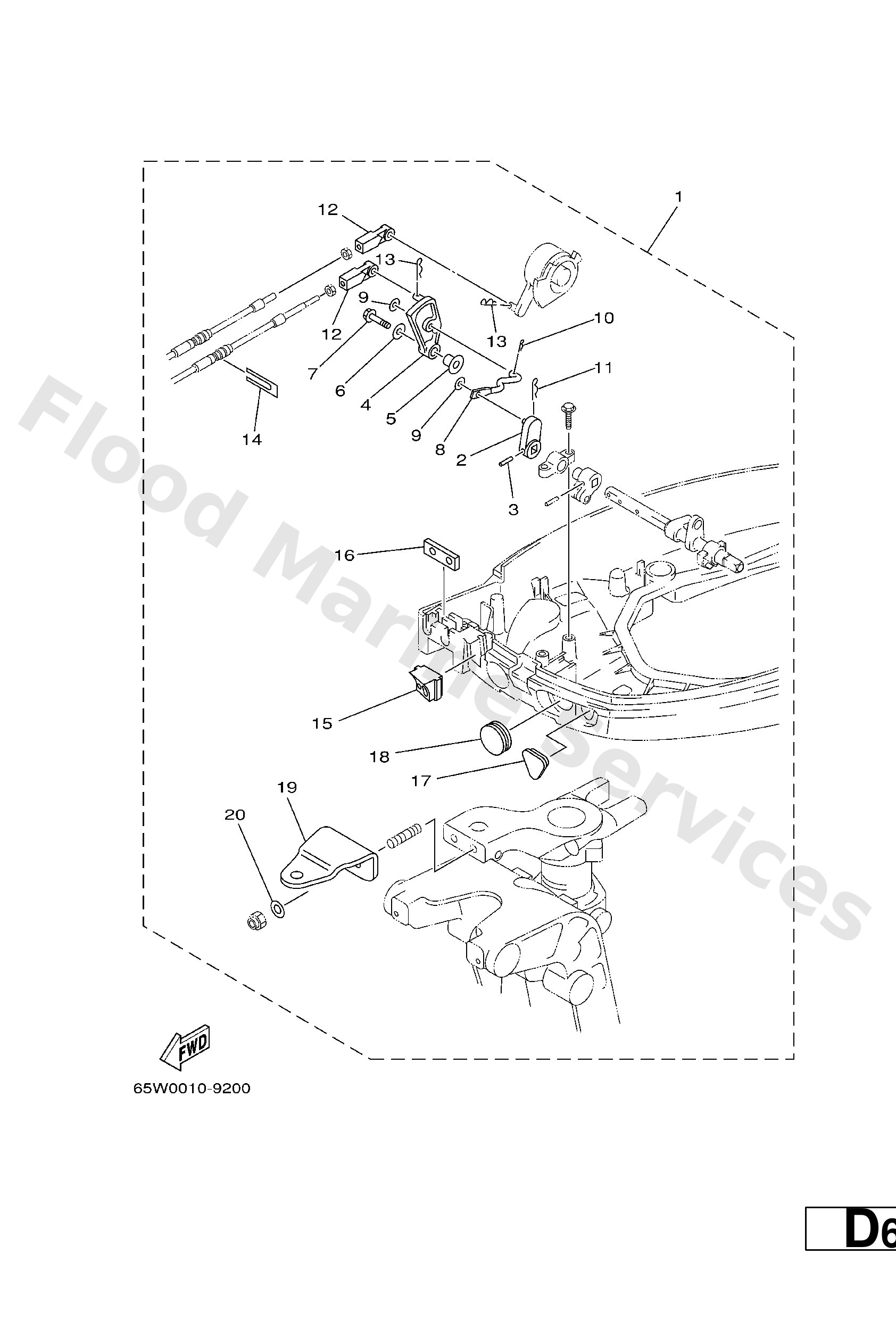

Diagram: REMOTE CONTROL ATTACHMENT

Diagram

Parts List

Reference
Description
Price


1
65W4850100 AP
Remote cont. attachment assembly.
Loading…

↗
2
65W--44142--00
Joint
Loading…

↗
3
90254--03M05
Pin, spring
Loading…

↗
4
65W--44125--00
Lever, shift rod
Loading…

↗
5
90387--06M29
Coller (6a0)
Loading…

↗
6
90201--06M31
Washer (6a0)
Loading…

↗
7
97595--06525
Bolt, hexagon w/w deep recess
Loading…

↗
8
65W--44192--00
Joint, rod 1
Loading…

↗
9
90201--05M06
Washer, plate(61u)
Loading…

↗
10
90468--10005
Pin, hair 6264123500
Loading…

↗
11
90468--18008
Clip 620436610000
Loading…

↗
12
663--48344--00
Cable end, remote control
Loading…

↗
14
6H3--48538--00
Clamp, cable
Loading…

↗
15
65W--42725--20
Grommet
Loading…

↗
16
62Y--42727--00
Grommet
Loading…

↗
17
65W--26326--10
Grommet
Loading…

↗
18
65W--42726--10
Grommet
Loading…

↗
19
65W--48511--00
Hook, steering
Loading…

↗
20
90201--10120
Washer, plate
Loading…

↗
