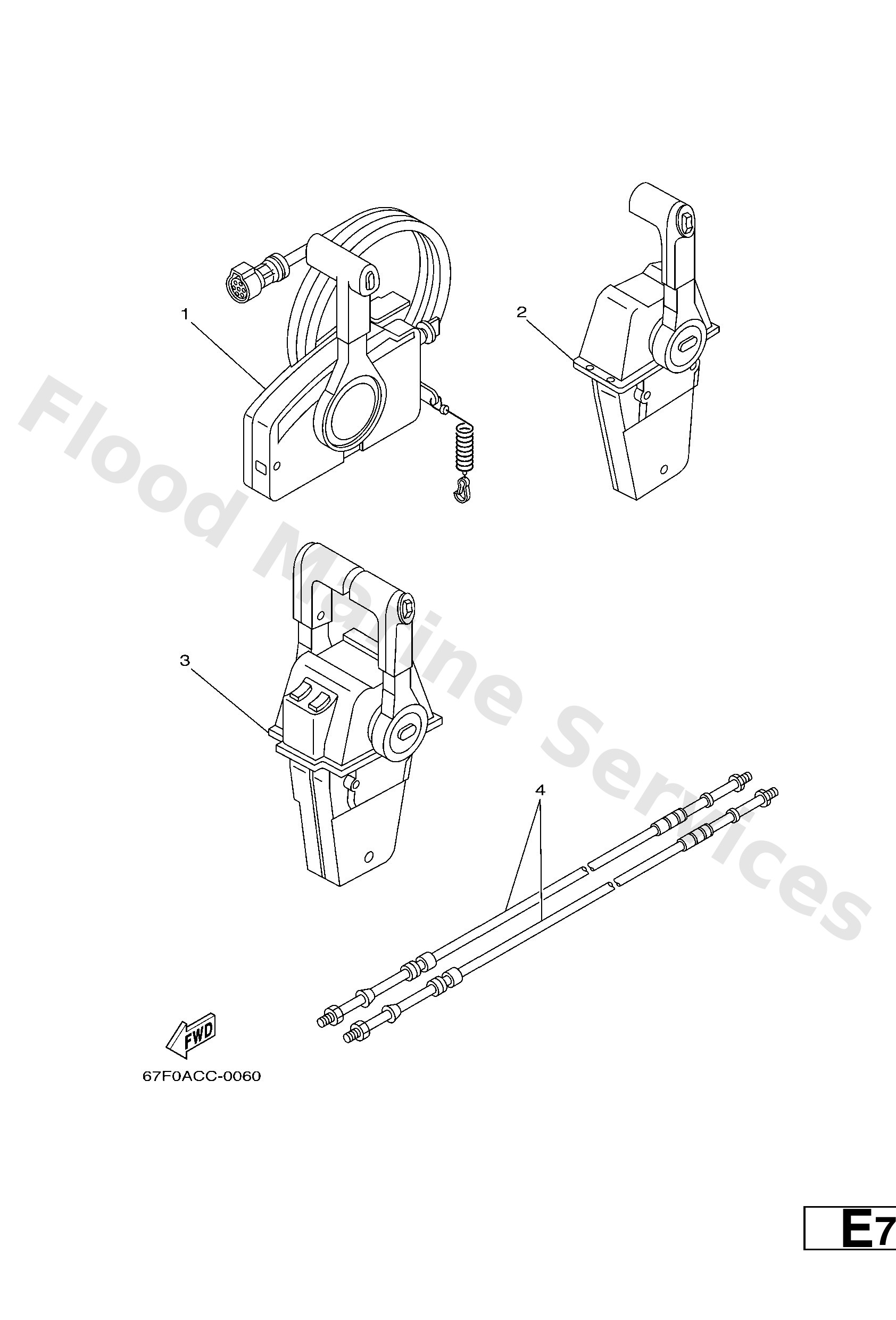

Diagram: REMOTE CONTROL BOX

Diagram

Parts List

Reference
Description
Price


1
7034820517 AP FOR BRA
Remote control assembly (10p, ptt)
Loading…

↗
1
70348205A4 AP FOR VEN
Remote control assembly (10p, ptt)
Loading…

↗
2
7044820514 AP FOR CAR
704 single top mount (mec rc)
Loading…

↗
3
7044820723 AP WITH PT/T SW.
Remote Control assembly
Loading…

↗
4
7014832050 UR
-
Loading…

↗
4
7014832060 UR
-
Loading…

↗
4
7014832080 UR
-
Loading…

↗
4
7014835000 UR
Cable, Remote Control L=21F
Loading…

↗
4
7014835010 UR
Cable, Remote Control L=22F
Loading…

↗
4
7014835020 UR
Cable, Remote Control L=23F
Loading…

↗
