2BMH (2003)
REPAIR KIT

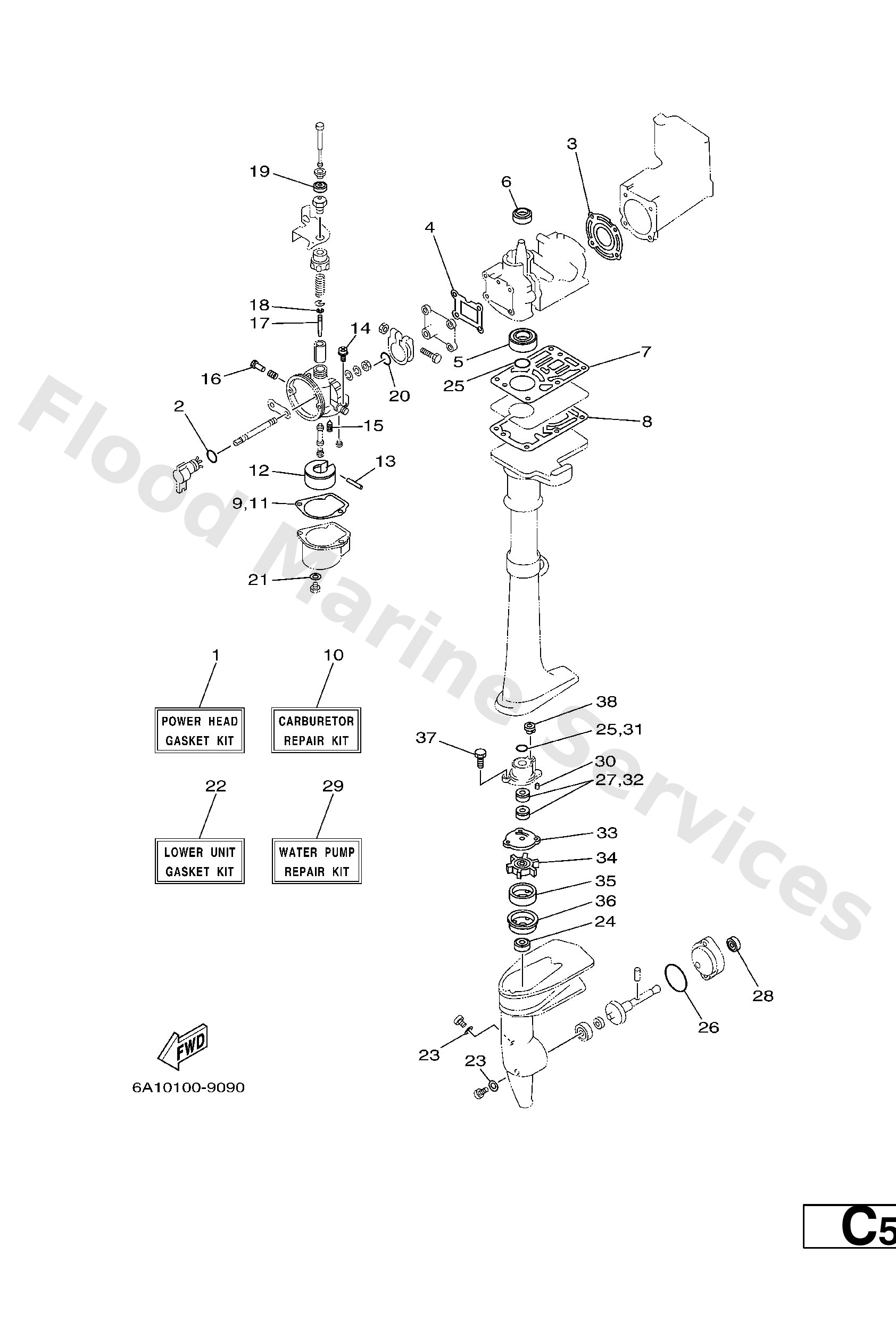

Diagram: REPAIR KIT
Parts List
Reference
Description
Price
1
6A1−W0001−A2
Gasket kit, power unit
Loading…
↗
2
93210−08M29
O-ring (6a1)
Loading…
↗
3
6A1−11181−A1
Gasket, cylinder head 1
Loading…
↗
4
6A1−13621−A0
Gasket, valve seat
Loading…
↗
5
93102−15M32
Oil seal(6a1)
Loading…
↗
6
93102−20070
Oil seal
Loading…
↗
7
6A1−14613−A0
Gasket,exhaust 1
Loading…
↗
8
646−14623−A1
Gasket, exhaust
Loading…
↗
9
6A1−14384−00
Gasket, float chamber
Loading…
↗
10
6A1−W0093−03
Carburetor repair kit
Loading…
↗
12
6A1−14385−00
Float
Loading…
↗
13
6A1−14386−00
Pin, float
Loading…
↗
14
97980−04110
Screw, pan head (e56)
Loading…
↗
15
6A1−14392−00
Valve, needle
Loading…
↗
16
646−14211−02
Screw, pilot adjusting
Loading…
↗
17
6A1−14116−10
3−
Loading…
↗
18
646−14137−00
Clip
Loading…
↗
19
646−14169−00
3−
Loading…
↗
20
646−14229−01
O-ring
Loading…
↗
21
646−14198−01
Gasket
Loading…
↗
22
6A1−W0001−23
Lower unit gasket kit
Loading…
↗
23
90430−08020
Gasket
Loading…
↗
24
93103−11051
Oil seal (11x21x8-646)
Loading…
↗
25
93210−19123
O-ring (646)
Loading…
↗
26
93210−42101
O-ring (183)
Loading…
↗
27
93101−11M44
Oil seal(6a1)
Loading…
↗
28
93103−10052
Oil seal (10x21x10-646)
Loading…
↗
29
6A1−W0078−02
Water pump repair kit
Loading…
↗
30
93604−09068
Pin,dowel (646)
Loading…
↗
33
646−44323−00
Outer plate,cartridge
Loading…
↗
34
646−44352−01
Impeller
Loading…
↗
35
646−44322−00
Insert, cartridge
Loading…
↗
36
6A1−44325−00
Protector, oil seal
Loading…
↗
37
97095−05016
Bolt(6a1)
Loading…
↗
38
646−44366−01
Damper, water seal 2
Loading…
↗
