2CMH (2010)
REPAIR KIT

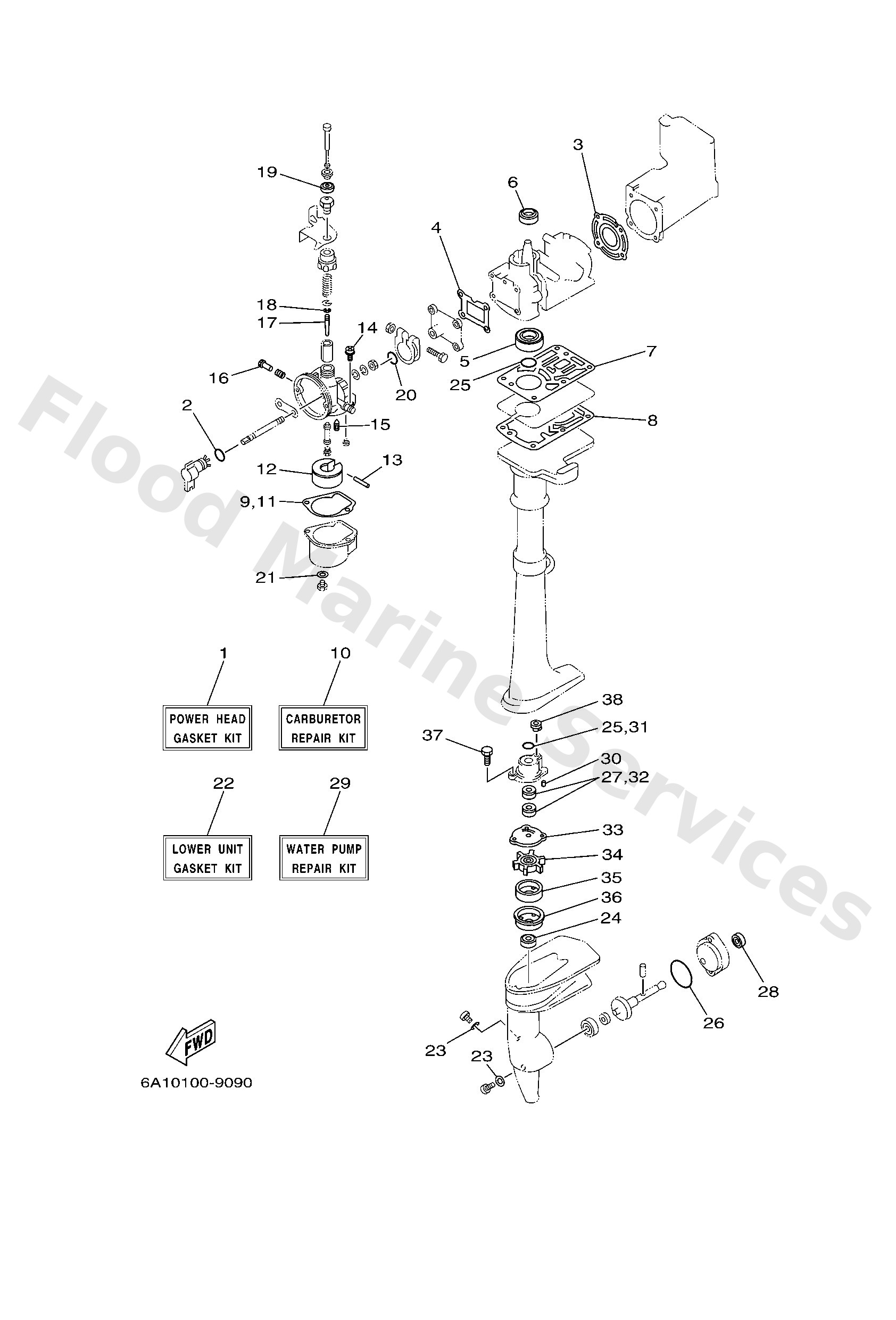

Diagram: REPAIR KIT
Parts List
Reference
Description
Price
1
6F8W0001A1
Power head gasket kit
Loading…
↗
2
9321008M29
O-ring (6a1)
Loading…
↗
3
6F811181A1
Gasket, cylinder head 1
Loading…
↗
4
6A113621A0
Gasket, valve seat
Loading…
↗
5
9310215M32
Oil seal(6a1)
Loading…
↗
6
9310220070
Oil seal
Loading…
↗
7
6A114613A0
Gasket,exhaust 1
Loading…
↗
8
64614623A1
Gasket, exhaust
Loading…
↗
9
6A11438400
Gasket, float chamber
Loading…
↗
10
6F8W009302
Carburetor repair kit
Loading…
↗
12
6A11438500
Float
Loading…
↗
13
6A11438600
Pin, float
Loading…
↗
14
9798004110
Screw, pan head (e56)
Loading…
↗
15
6A11439200
Valve, needle
Loading…
↗
16
6461421102
Screw, pilot adjusting
Loading…
↗
17
6F81411600
Needle
Loading…
↗
18
6461413700
Clip
Loading…
↗
19
6461416900
-
Loading…
↗
20
6461422901
O-ring
Loading…
↗
21
6461419801
Gasket
Loading…
↗
22
6A1W000123
Lower unit gasket kit
Loading…
↗
23
9043008020
Gasket
Loading…
↗
24
9310311051
Oil seal (11x21x8-646)
Loading…
↗
25
9321019123
O-ring (646)
Loading…
↗
26
9321042101
O-ring (183)
Loading…
↗
27
9310111M44
Oil seal(6a1)
Loading…
↗
28
9310310052
Oil seal (10x21x10-646)
Loading…
↗
29
6A1W007802
Water pump repair kit
Loading…
↗
30
9360409068
Pin,dowel (646)
Loading…
↗
33
6464432300
Outer plate,cartridge
Loading…
↗
34
6464435201
Impeller
Loading…
↗
35
6464432200
Insert, cartridge
Loading…
↗
36
6A14432500
Protector, oil seal
Loading…
↗
37
9709505016
Bolt(6a1)
Loading…
↗
38
6464436601
Damper, water seal 2
Loading…
↗
