3AMH (2003)
REPAIR KIT

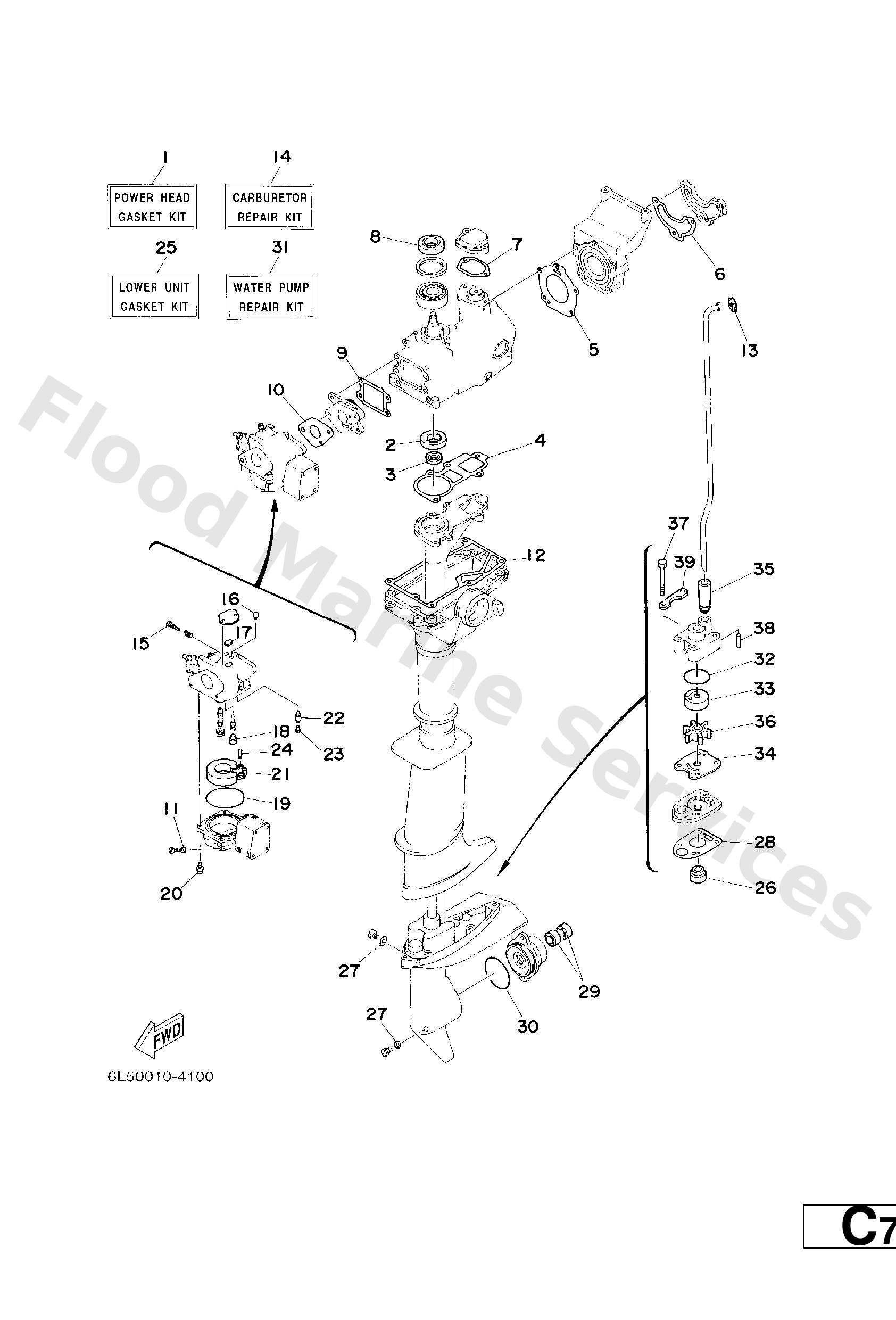

Diagram: REPAIR KIT
Parts List
Reference
Description
Price
1
6L5−W0001−A1
Power head gasket kit
Loading…
↗
2
93101−20M29
Oil seal(6j1)
Loading…
↗
3
93101−09M42
Oil seal(6l5)
Loading…
↗
4
6L5−15369−A0
Gasket, oil seal housing
Loading…
↗
5
6L5−11181−A2
Gasket, cylinder head 1
Loading…
↗
6
6L5−11193−A1
Gasket, head cover
Loading…
↗
7
6L5−12414−A1
Gasket, cover
Loading…
↗
8
93102−20M06
Oil seal(6j1)
Loading…
↗
9
6L5−13621−A2
Gasket, valve seat
Loading…
↗
10
6L5−14198−A1
Gasket
Loading…
↗
11
6G1−14398−00
Washer
Loading…
↗
12
6L5−45113−A1
Gasket, upper casing
Loading…
↗
13
646−44365−00
Damper, water seal 1
Loading…
↗
14
6G1−W0093−00
Carburetor repair kit
Loading…
↗
15
679−14923−00
Screw, pilot
Loading…
↗
16
6G1−14966−00
Cap
Loading…
↗
17
6G1−14126−00
Packing
Loading…
↗
18
676−14966−00
Rubber cap
Loading…
↗
19
6G1−14984−00
Gasket, float chamber
Loading…
↗
20
97980−04114
Screw, pan head(ga5)
Loading…
↗
21
6G1−14985−00
Float comp.
Loading…
↗
22
6G1−14546−00
Valve, needle
Loading…
↗
23
676−14186−00
Pin, valve
Loading…
↗
24
688−14548−00
Pin, arm
Loading…
↗
25
6L5−W0001−21
10 −
Loading…
↗
26
93103−09M41
Oil seal
Loading…
↗
27
90430−08020
Gasket
Loading…
↗
28
6L5−45315−A0
Packing,l0wer casing
Loading…
↗
29
93101−13M12
Oil seal
Loading…
↗
30
93210−48214
O-ring
Loading…
↗
31
6L5−W0078−00
Water pump repair kit
Loading…
↗
32
93210−33M85
O-ring(6l5)
Loading…
↗
33
6L5−44322−00
Insert, cartridge
Loading…
↗
34
6L5−44323−00
Outer plate, cartridge
Loading…
↗
35
6E0−44366−00
Damper, water seal 2
Loading…
↗
36
6L5−44352−00
Impeller
Loading…
↗
37
97095−06040
Bolt (682)
Loading…
↗
38
93604−18080
Pin. dowel. (647)
Loading…
↗
39
6L5−44328−00
Plate
Loading…
↗
