5CMH (2015)
REPAIR KIT

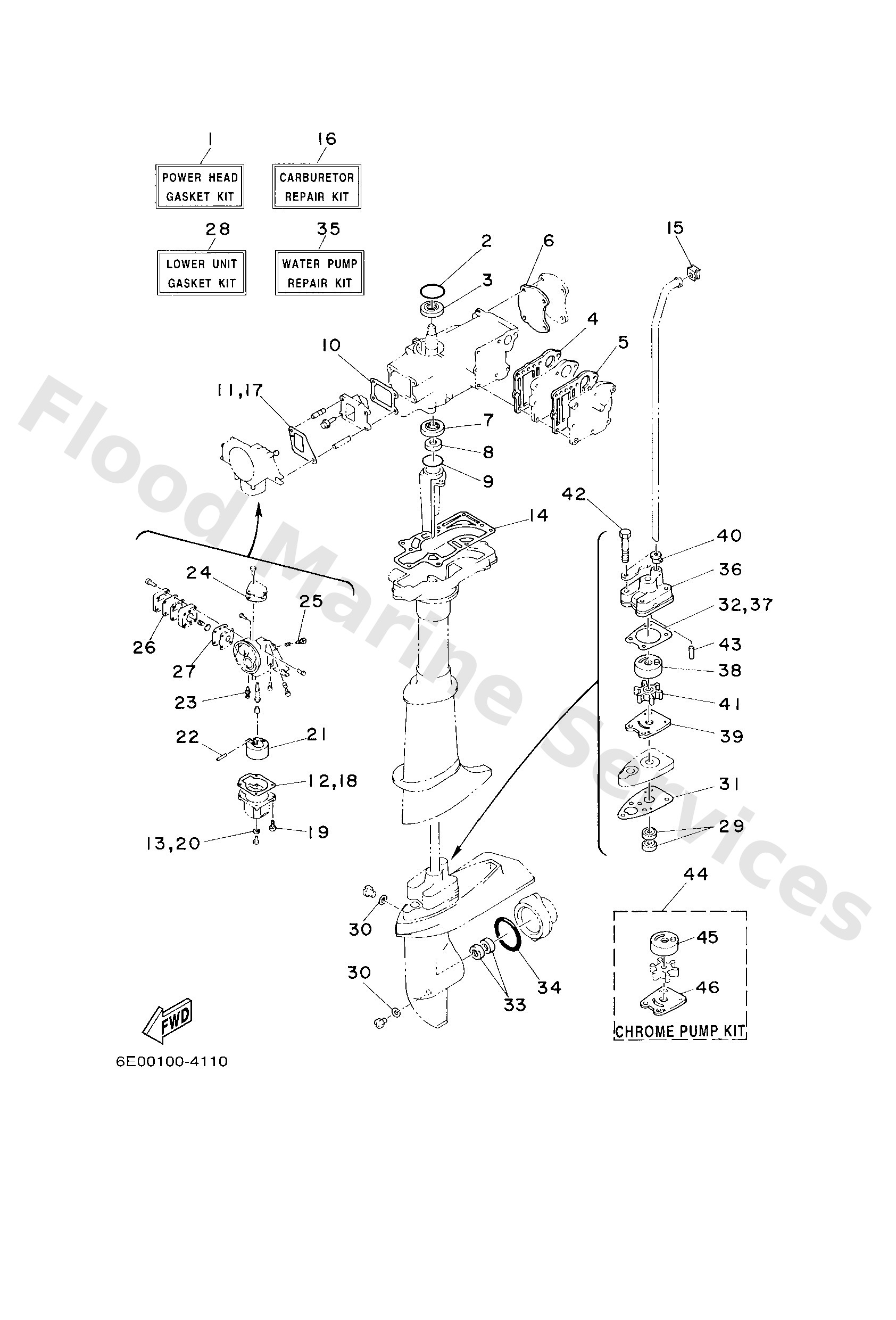

Diagram: REPAIR KIT
Parts List
Reference
Description
Price
1
6E3W0001A4
Power head gasket kit
Loading…
↗
1
6E0W0001A4
Gasket kit
Loading…
↗
2
9321042159
O-ring (647)
Loading…
↗
3
9310220M25
Oil seal (6e0)
Loading…
↗
4
6E041112A1
Gasket,inner cover exhaust
Loading…
↗
4
6E341112A1
Gasket,inner cover exhaust
Loading…
↗
5
6E041114A1
Gasket,outer cover exhaust
Loading…
↗
5
6E341114A1
Gasket,outer cover exhaust
Loading…
↗
6
6E011193A1
Gasket,head cover
Loading…
↗
6
6E311193A1
Gasket,head cover
Loading…
↗
7
9310120M29
Oil seal(6j1)
Loading…
↗
8
9310110M25
Oil seal(6e0)
Loading…
↗
9
9321031MJ5
O-ring
Loading…
↗
10
6E013621A2
Gasket, valve seat
Loading…
↗
11
6E014198A0
Gasket
Loading…
↗
12
6E01438400
Gasket, float chamber
Loading…
↗
13
6461419801
Gasket
Loading…
↗
14
6E045113A1
Gasket,upper casing
Loading…
↗
15
6464436500
Damper, water seal 1
Loading…
↗
16
6E0W009304
Carbureetor repair kit
Loading…
↗
19
9798004116
Screw, with washer(61b)
Loading…
↗
21
6E71438501
Float
Loading…
↗
22
6471438600
Pin, float
Loading…
↗
23
6F51439200
Valve, needle
Loading…
↗
24
6E01422700
Gasket
Loading…
↗
25
6471432300
Screw, air adjusting
Loading…
↗
26
6E02447100
Diaphragm
Loading…
↗
27
6E02441100
Diaphragm
Loading…
↗
28
6E0W0001C1
L0wer unit gasket kit
Loading…
↗
29
9310110M14
Oil seal
Loading…
↗
30
9043008020
Gasket
Loading…
↗
31
6E045315A0
Packing,lower casing
Loading…
↗
32
6E044315A0
Gasket,water pump 1
Loading…
↗
33
9310113M12
Oil seal
Loading…
↗
34
9321048214
O-ring
Loading…
↗
35
6E0W0078A3
Water pump repair kit
Loading…
↗
36
6E04431100
Housing, water pump
Loading…
↗
38
6E04432202
Insert, cartridge
Loading…
↗
39
6E04432300
Outer plate, cartridge
Loading…
↗
40
6E04436600
Damper, water seal 2
Loading…
↗
41
6E04435200
Impeller
Loading…
↗
42
9709506045
Bolt, hexagon
Loading…
↗
43
9360418080
Pin. dowel. (647)
Loading…
↗
44
6E0W00780A
-
Loading…
↗
45
6E04432240
Insert, cartridge
Loading…
↗
46
6E04432340
Outer plate, cartridge
Loading…
↗
