8CMH (2011)
REPAIR KIT

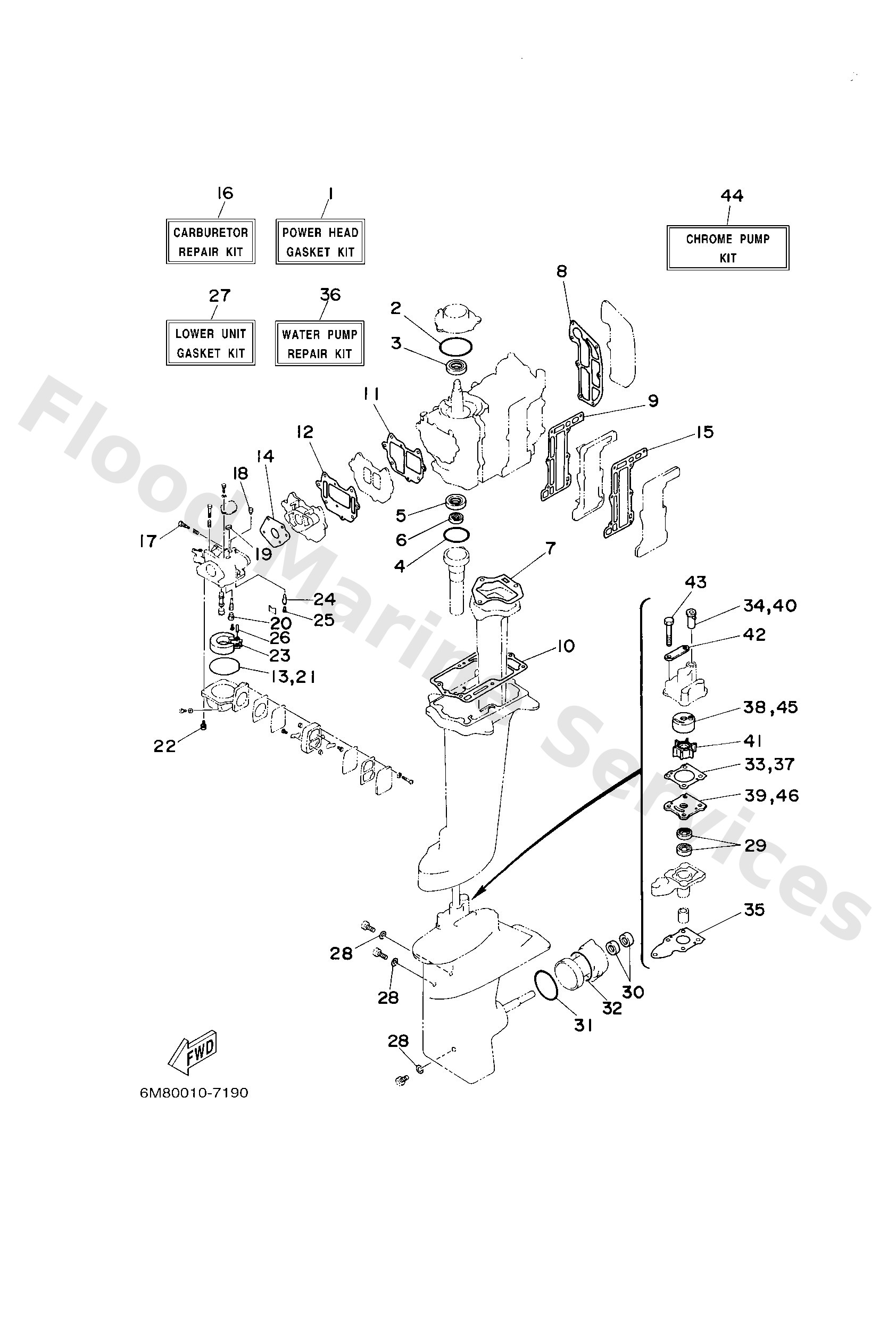

Diagram: REPAIR KIT
Parts List
Reference
Description
Price
1
6N0W0001A0
Power head gasket kit
Loading…
↗
2
9321054M54
O-ring (6g1)
Loading…
↗
3
9310220M25
Oil seal (6e0)
Loading…
↗
4
9321042159
O-ring (647)
Loading…
↗
5
9310120M34
Oil seal(6j1)
Loading…
↗
6
9310112M26
Oil seal(6g1)
Loading…
↗
7
6G141133A0
Gasket, exhaust manifold 1
Loading…
↗
8
6G111193A1
Gasket, head cover 1
Loading…
↗
9
6G141112A1
Gasket, exhaust inner cover
Loading…
↗
10
6G145113A1
Gasket, upper casing
Loading…
↗
11
6G113621A1
Gasket, valve seat
Loading…
↗
12
6G113645A1
Gasket, intake manifold
Loading…
↗
13
6G11498400
Gasket, float chamber
Loading…
↗
14
6G114198A1
Gasket
Loading…
↗
15
6G141114A0
Gasket, exhaust outer cover
Loading…
↗
16
6N0W009300
Carburetor repair kit
Loading…
↗
17
6791492300
Screw, pilot
Loading…
↗
18
6G11496600
Cap
Loading…
↗
19
6G11412600
Packing
Loading…
↗
20
6761496600
Rubber cap
Loading…
↗
22
9798004114
Screw, pan head(ga5)
Loading…
↗
23
6G11498500
Float comp.
Loading…
↗
24
6G11454601
Valve, needle
Loading…
↗
25
6761418600
Pin, valve
Loading…
↗
26
6881454800
Pin, arm
Loading…
↗
27
6N0W0001C0
Lower unit gasket kit
Loading…
↗
28
9043008020
Gasket
Loading…
↗
29
9310111M23
Oil seal (6g1)
Loading…
↗
30
9310115074
Oil seal (655)
Loading…
↗
31
9321049046
O-ring (620)
Loading…
↗
32
9321053M08
O-ring(50m)
Loading…
↗
33
6G144315A0
Gasket,water pump
Loading…
↗
34
6474436600
Damper, water seal 2
Loading…
↗
35
6G145315A0
Packing, lower casing
Loading…
↗
36
6N0W0078A0
Water pump repair kit
Loading…
↗
38
6G14432200
Insert, cartridge
Loading…
↗
39
6G14432300
Outer plate, cartridge
Loading…
↗
41
6G14435200
Impeller
Loading…
↗
42
6G14432800
Plate
Loading…
↗
43
9709506045
Bolt, hexagon
Loading…
↗
44
6N0W00780A
Chrome pump kit
Loading…
↗
45
6G14432240
Insert, cartridge
Loading…
↗
46
6G14432340
Outer plate, cartridge
Loading…
↗
