8CWH (2002)
REPAIR KIT

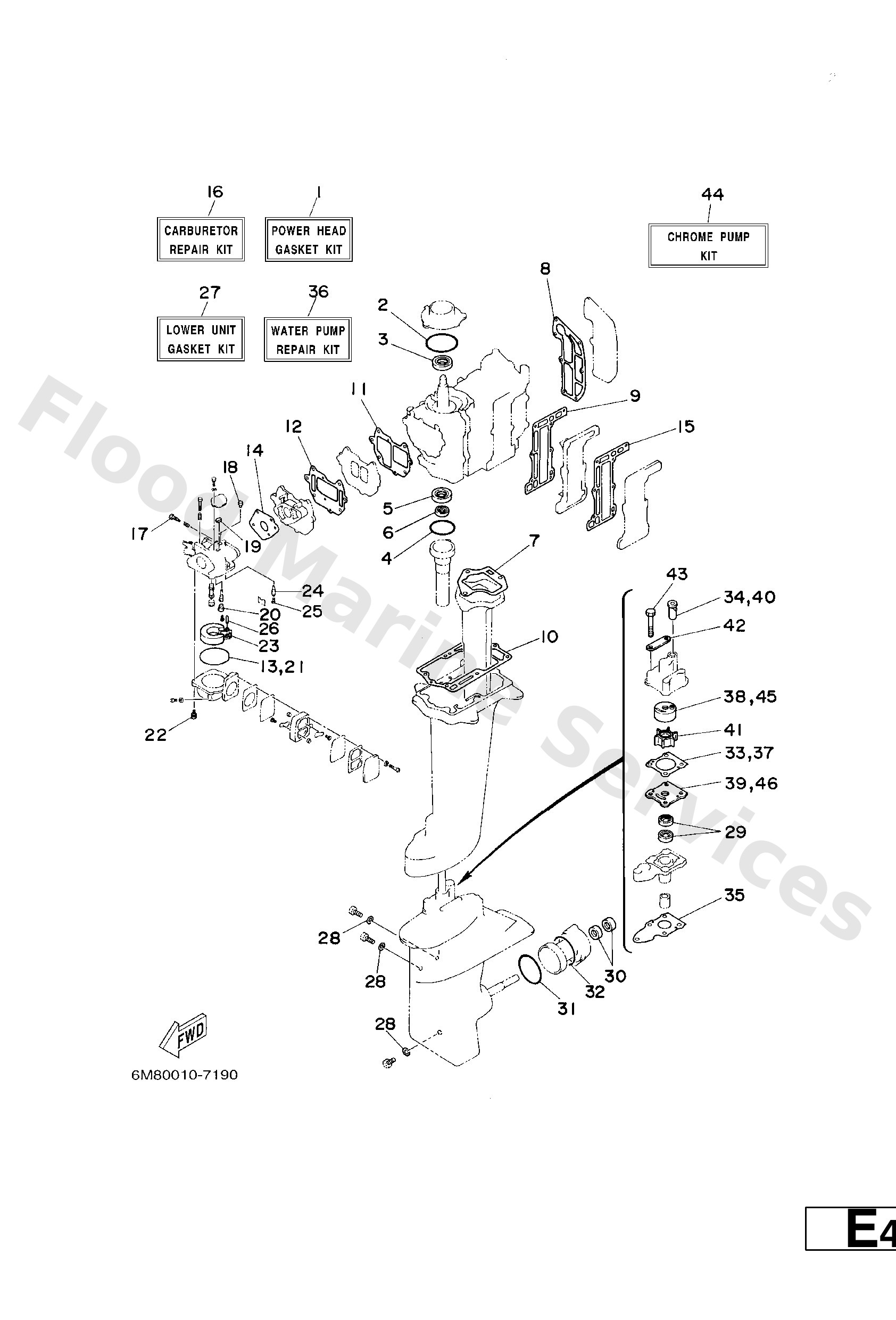

Diagram: REPAIR KIT
Parts List
Reference
Description
Price
1
6N0--W0001--A0
Power head gasket kit
Loading…
↗
2
93210--54M54
O-ring (6g1)
Loading…
↗
3
93102--20M25
Oil seal (6e0)
Loading…
↗
4
93210--42159
O-ring (647)
Loading…
↗
5
93101--20M29
Oil seal(6j1)
Loading…
↗
6
93101--12M26
Oil seal(6g1)
Loading…
↗
7
6G1--41133--A0
Gasket, exhaust manifold 1
Loading…
↗
8
6G1--11193--A1
Gasket, head cover 1
Loading…
↗
9
6G1--41112--A1
Gasket, exhaust inner cover
Loading…
↗
10
6G1--45113--A1
Gasket, upper casing
Loading…
↗
11
6G1--13621--A1
Gasket, valve seat
Loading…
↗
12
6G1--13645--A1
Gasket, intake manifold
Loading…
↗
13
6G1--14984--00
Gasket, float chamber
Loading…
↗
14
6G1--14198--A1
Gasket
Loading…
↗
15
6G1--41114--A0
Gasket, exhaust outer cover
Loading…
↗
16
6N0--W0093--00
Carburetor repair kit
Loading…
↗
17
679--14923--00
Screw, pilot
Loading…
↗
18
6G1--14966--00
Cap
Loading…
↗
19
6G1--14126--00
Packing
Loading…
↗
20
676--14966--00
Rubber cap
Loading…
↗
22
97980--04114
Screw, pan head(ga5)
Loading…
↗
23
6G1--14985--00
Float comp.
Loading…
↗
24
6G1--14546--00
Valve, needle
Loading…
↗
25
676--14186--00
Pin, valve
Loading…
↗
26
688--14548--00
Pin, arm
Loading…
↗
27
6N0--W0001--C0
Lower unit gasket kit
Loading…
↗
28
90430--08020
Gasket
Loading…
↗
29
93101--11M23
Oil seal (6g1)
Loading…
↗
30
93101--15074
Oil seal (655)
Loading…
↗
31
93210--49046
O-ring (620)
Loading…
↗
32
93210--53M08
O-ring(50m)
Loading…
↗
33
6G1--44315--A0
Gasket,water pump
Loading…
↗
34
647--44366--00
Damper, water seal 2
Loading…
↗
35
6G1--45315--A0
Packing, lower casing
Loading…
↗
36
6N0--W0078--A0
Water pump repair kit
Loading…
↗
38
6G1--44322--00
Insert, cartridge
Loading…
↗
39
6G1--44323--00
Outer plate, cartridge
Loading…
↗
41
6G1--44352--00
Impeller
Loading…
↗
42
6G1--44328--00
Plate
Loading…
↗
43
97095--06045
Bolt, hexagon
Loading…
↗
44
6N0--W0078--0A
Chrome pump kit
Loading…
↗
45
6G1--44322--40
Insert, cartridge
Loading…
↗
46
6G1--44323--40
Outer plate, cartridge
Loading…
↗
