Yamaha Outboard Parts - REPAIR KIT 1 - 115BETO (1998) | Flood Marine

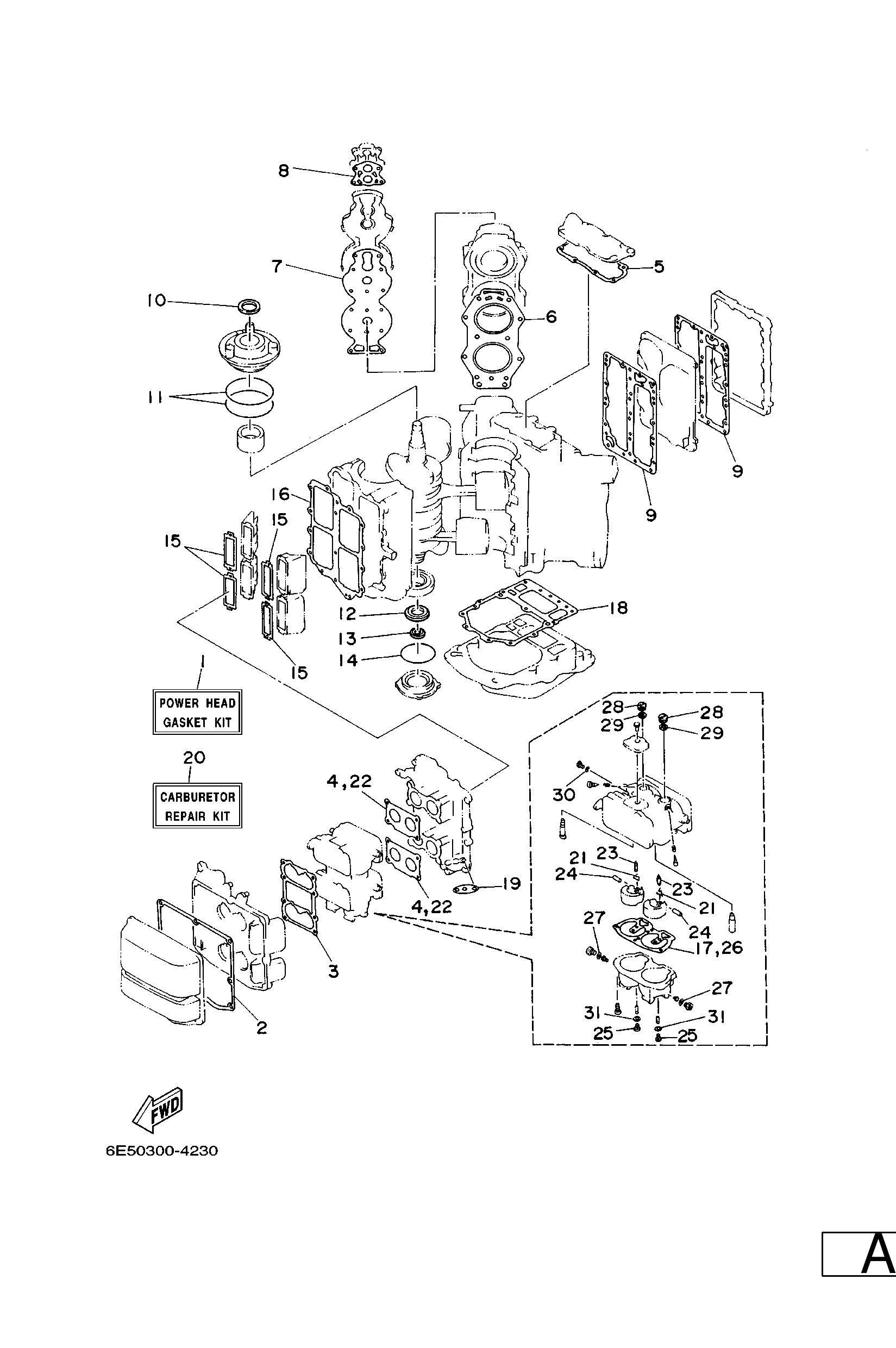

Diagram: REPAIR KIT 1

Diagram

Parts List

Reference
Description
Price


1
6F3W000105
-
Loading…

↗
2
6E514416A1
Gasket, air cleaner
Loading…

↗
3
6E514483A1
Gasket
Loading…

↗
4
6E514198A2
Gasket
Loading…

↗
5
6E511381A2
Gasket 1
Loading…

↗
6
6E511181A1
Gasket, cylinder head 1
Loading…

↗
7
6E511193A0
Gasket, head cover 1
Loading…

↗
8
68812414A1
Gasket, cover
Loading…

↗
9
6E541112A1
Gasket, exhaust inner cover
Loading…

↗
10
9310240M38
Oil seal(61a)
Loading…

↗
11
9321104384
O-ring (705)
Loading…

↗
12
9310235M13
Oil seal (6e5)
Loading…

↗
13
9310122M15
Oil seal (6e5)
Loading…

↗
14
9321074M35
O-ring (6e5)
Loading…

↗
15
6E513621A1
Gasket, valve seat
Loading…

↗
16
6E513645A1
Gasket, manifold 1
Loading…

↗
17
64D1438400
Gasket, float chamber
Loading…

↗
18
6G545113A1
Gasket, upper casing
Loading…

↗
19
65024431A0
Gasket,fuel pump
Loading…

↗
20
6E5W009308
Carburetor repair set
Loading…

↗
21
6E51415900
Clip
Loading…

↗
23
6E51454600
Valve, needle
Loading…

↗
24
6E51438602
Pin, float
Loading…

↗
25
64D1439400
Valve, drain
Loading…

↗
27
6E51439800
Gasket
Loading…

↗
28
6E51432801
Plug
Loading…

↗
29
6E51497900
Gasket
Loading…

↗
30
6J81495900
Gasket, drin screw
Loading…

↗
31
61U1495900
Gasket
Loading…

↗
