15FWC (2003)
REPAIR KIT 1

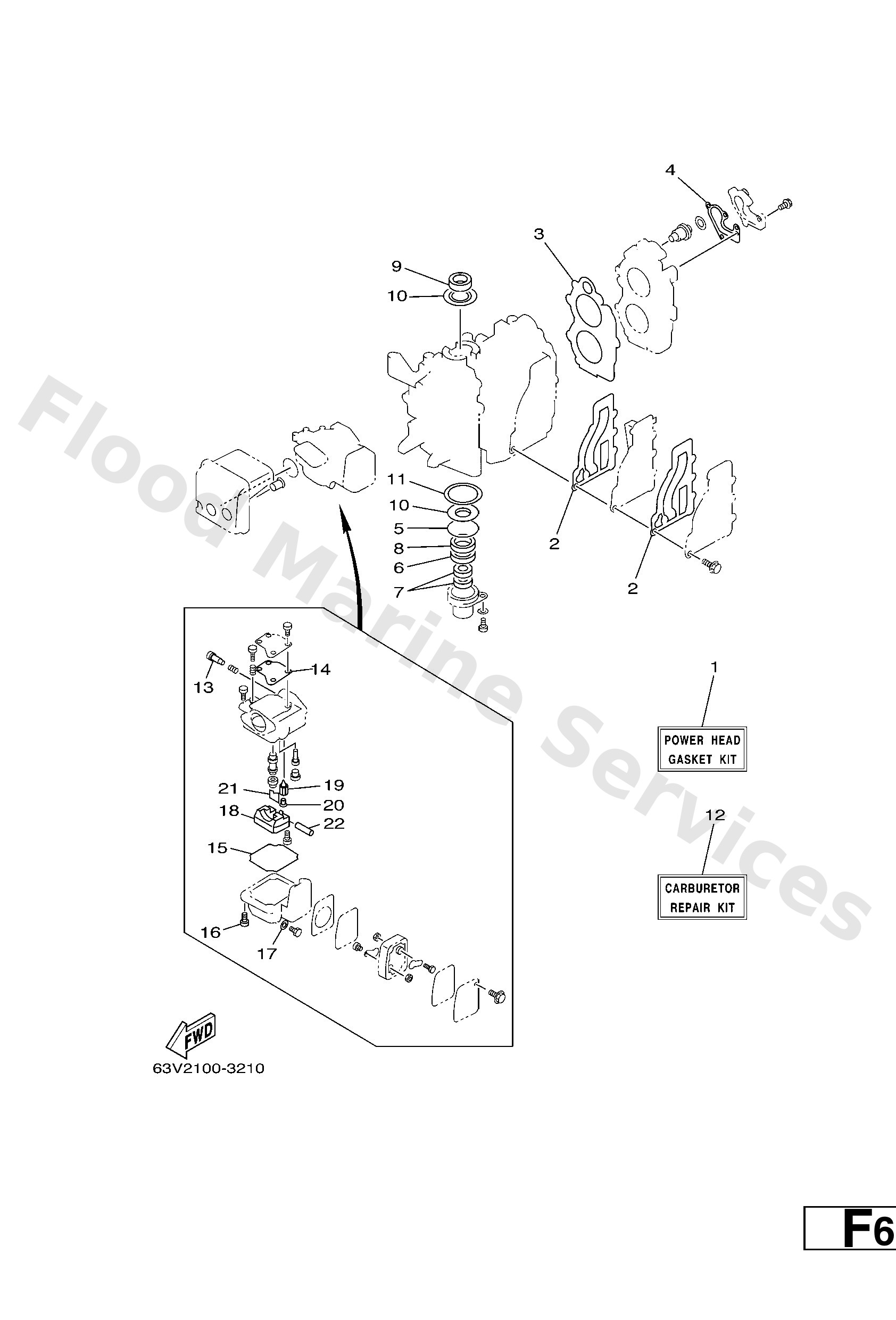

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
63VW000102
Gasket kit
Loading…
↗
2
63V41112A0
Gasket, exhaust inner cover
Loading…
↗
3
63V11181A1
Gasket, cylinder head 1
Loading…
↗
4
68212414A1
Gasket, cover
Loading…
↗
5
9321046M16
O-ring (688)
Loading…
↗
6
9310125018
Oil seal
Loading…
↗
7
9310113018
Oil seal
Loading…
↗
8
9310225M48
Oil seal(63v)
Loading…
↗
9
9311023M00
Oil seal (682)
Loading…
↗
10
63V1144500
Spacer
Loading…
↗
11
9020146M29
Washer, plate(63v)
Loading…
↗
12
63VW009300
Carburetor repair kit
Loading…
↗
13
6791492300
Screw, pilot
Loading…
↗
14
63V1412600
Gasket
Loading…
↗
15
63V1498400
Gasket, float chamber
Loading…
↗
16
9798004114
Screw, pan head(ga5)
Loading…
↗
17
6G11439800
Washer
Loading…
↗
18
63V1498500
Float
Loading…
↗
19
6G11454601
Valve, needle
Loading…
↗
20
6761418600
Pin, valve
Loading…
↗
21
6631415900
Clip
Loading…
↗
22
6H41454800
Pin, float arm
Loading…
↗
