200GETO (2002)
REPAIR KIT 1

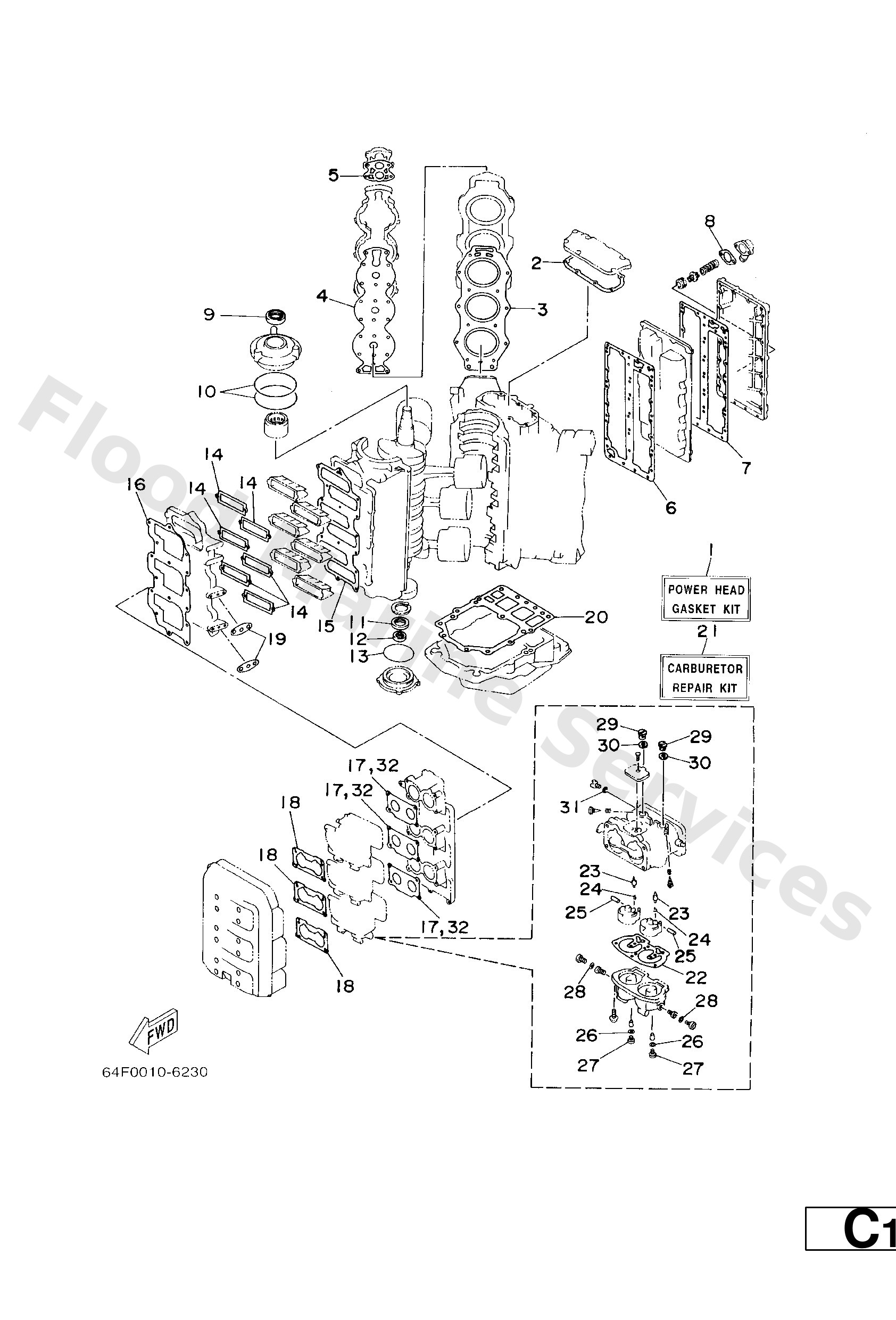

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
64FW000100
Power head gasket kit
Loading…
↗
2
6E5--11381--A2
Gasket 1
Loading…
↗
3
6G5--11181--A1
Gasket, cylinder head 1
Loading…
↗
4
6G5--11193--A0
Gasket, head cover 1
Loading…
↗
5
688--12414--A1
Gasket, cover
Loading…
↗
6
6G5--41112--A1
Gasket, exhaust inner cover
Loading…
↗
8
6G5--11382--A1
Gasket 2
Loading…
↗
9
93102--40M14
Oil seal(61a)
Loading…
↗
10
93211--04001
O-ring
Loading…
↗
11
93102--35M13
Oil seal (6e5)
Loading…
↗
12
93101--22M15
Oil seal (6e5)
Loading…
↗
13
93210--74M35
O-ring (6e5)
Loading…
↗
14
6K7--13621--A1
Gasket, valve seat
Loading…
↗
15
6K7--13646--A2
Gasket, manifold 2
Loading…
↗
16
64E--13645--A0
Gasket, manifold 1
Loading…
↗
17
6E5--14198--A2
Gasket
Loading…
↗
18
6K7--14483--00
Gasket
Loading…
↗
19
650--24431--A0
Gasket,fuel pump
Loading…
↗
20
6G5--45113--A1
Gasket, upper casing
Loading…
↗
21
64D--W0093--01
Carburetor repair kit
Loading…
↗
22
64D--14384--01
Gasket, float chamber
Loading…
↗
23
6E5--14546--00
Valve, needle
Loading…
↗
24
6E5--14159--00
Clip
Loading…
↗
25
6E5--14386--02
Pin, float
Loading…
↗
26
61U--14959--00
Gasket
Loading…
↗
27
64D--14394--00
Valve, drain
Loading…
↗
28
6E5--14398--01
Gasket
Loading…
↗
29
6E5--14328--01
Plug
Loading…
↗
30
6E5--14979--00
Gasket
Loading…
↗
31
6J8--14959--00
Gasket, drin screw
