20DMHO (2006)
REPAIR KIT 1

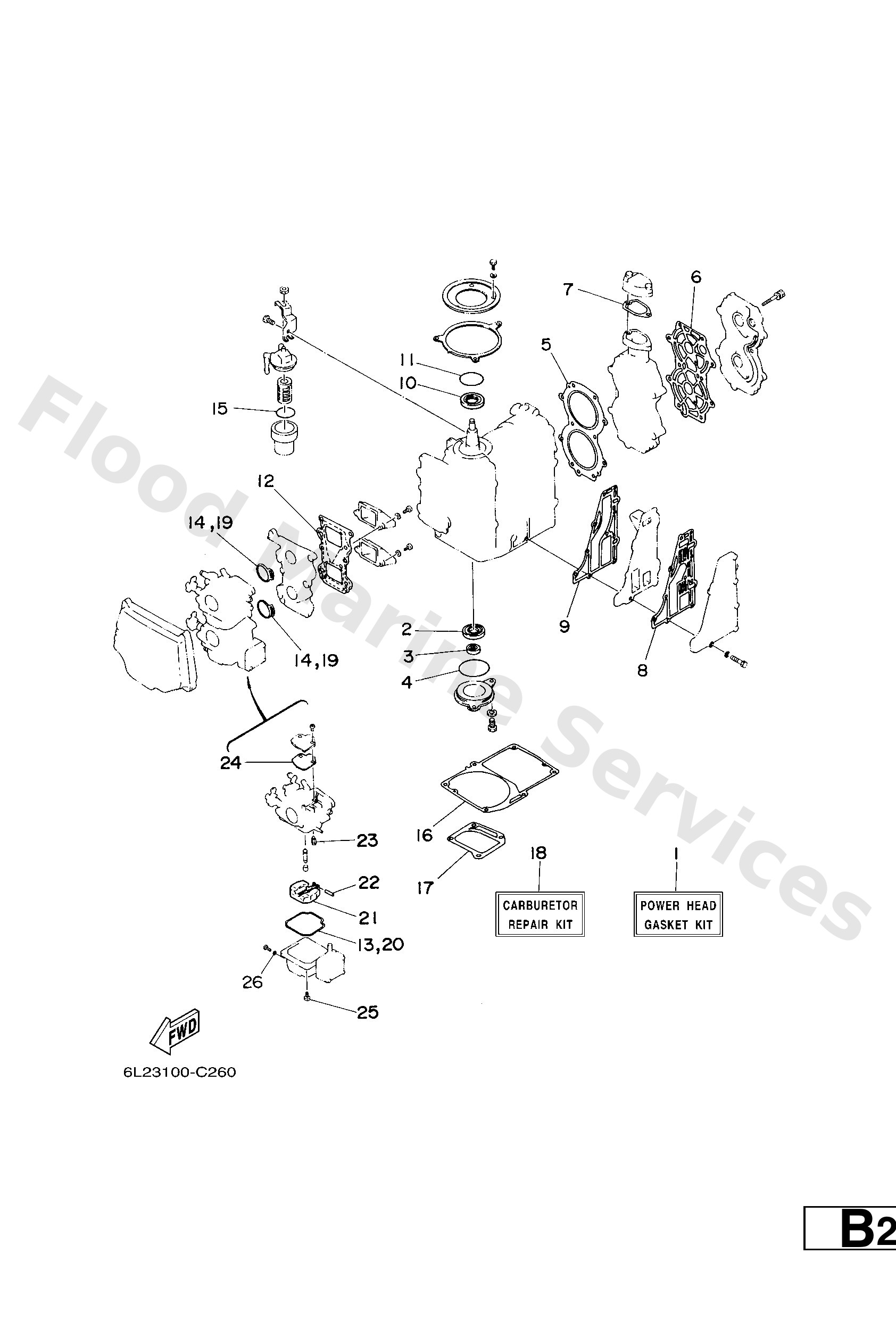

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
6L2W000103
Power head gasket kit
Loading…
↗
2
9310225142
Oil seal (24.8x38x7-662)
Loading…
↗
3
9310113M37
Oil seal(6a4)
Loading…
↗
4
9321056M80
O-ring(6j8)
Loading…
↗
5
6L211181A2
Gasket, cylinder head 1
Loading…
↗
6
6L211193A1
Gasket, head cover 1
Loading…
↗
7
6J812414A0
Gasket, cover
Loading…
↗
8
6L241114A1
Gasket, exhaust outer cover
Loading…
↗
9
6L241112A2
Gasket, exhaust inner cover
Loading…
↗
10
9310226M27
Oil seal(6j8)
Loading…
↗
11
9321042159
O-ring (647)
Loading…
↗
12
6L21362100
Gasket, valve seat
Loading…
↗
13
6L21438400
Gasket, float chamber
Loading…
↗
14
6L21419800
Gasket
Loading…
↗
15
9321032738
O-ring(1wg)
Loading…
↗
16
6L245113A2
Gasket, upper casing
Loading…
↗
17
6L241133A2
Gasket, exhaust manifold 1
Loading…
↗
18
6L2W009300
Carburetor repair kit
Loading…
↗
21
6L21438500
Float
Loading…
↗
22
6E51438601
Pin, float
Loading…
↗
23
6L21439200
Valve, needle
Loading…
↗
24
6L21439900
Gasket
Loading…
↗
25
9798004112
Screw, pan head (686)
Loading…
↗
26
6L21439800
Gasket
Loading…
↗
