225DET (2009)
REPAIR KIT 1

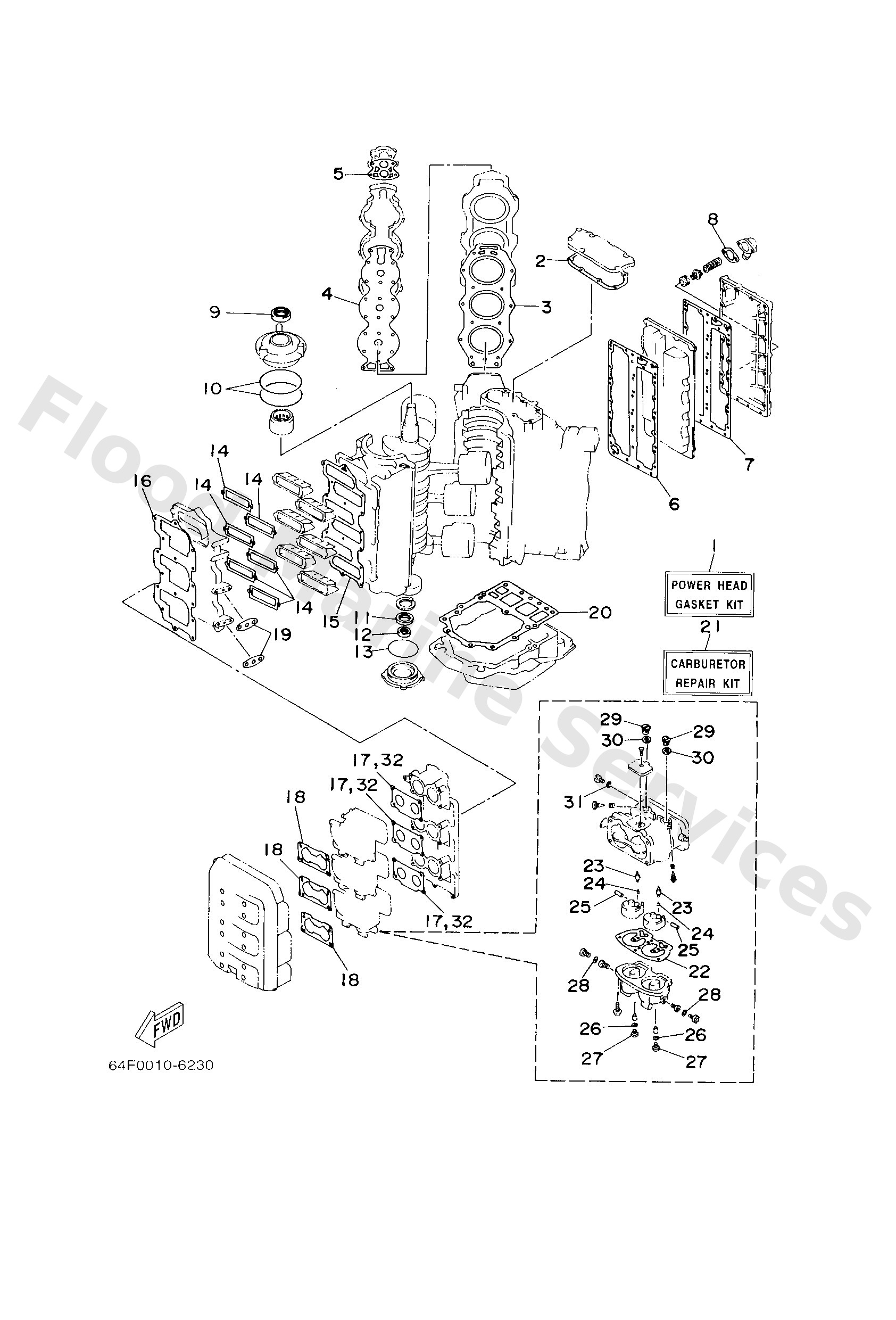

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
64FW000101
Power Head Gasket Kit
Loading…
↗
2
6E511381A2
Gasket 1
Loading…
↗
3
6G511181A2
Gasket, cylinder head 1
Loading…
↗
4
6G511193A1
Gasket, head cover 1
Loading…
↗
5
68812414A1
Gasket, cover
Loading…
↗
6
6G541112A1
Gasket, exhaust inner cover
Loading…
↗
7
6G541114A0
Gasket, exhaust inner cover
Loading…
↗
8
6G511382A1
Gasket 2
Loading…
↗
9
9310240M14
Oil seal(61a)
Loading…
↗
10
9321104001
O-ring
Loading…
↗
11
9310235M13
Oil seal (6e5)
Loading…
↗
12
9310122M15
Oil seal (6e5)
Loading…
↗
13
9321074M35
O-ring (6e5)
Loading…
↗
14
6K713621A1
Gasket, valve seat
Loading…
↗
15
6K713646A2
Gasket, manifold 2
Loading…
↗
16
64E13645A0
Gasket, manifold 1
Loading…
↗
17
6E514198A2
Gasket
Loading…
↗
18
6K71448300
Gasket
Loading…
↗
19
65024431A0
Gasket,fuel pump
Loading…
↗
20
68F4511300
Gasket, upper casing
Loading…
↗
21
64DW009301
Carburetor repair kit
Loading…
↗
22
64D1438401
Gasket, float chamber
Loading…
↗
23
6E51454600
Valve, needle
Loading…
↗
24
6E51415900
Clip
Loading…
↗
25
6E51438602
Pin, float
Loading…
↗
26
61U1495900
Gasket
Loading…
↗
27
64D1439400
Valve, drain
Loading…
↗
28
6E51439801
Gasket
Loading…
↗
29
6E51432801
Plug
Loading…
↗
30
6E51497900
Gasket
Loading…
↗
31
6J81495900
Gasket, drin screw
Loading…
↗
