225DETO (2003)
REPAIR KIT 1

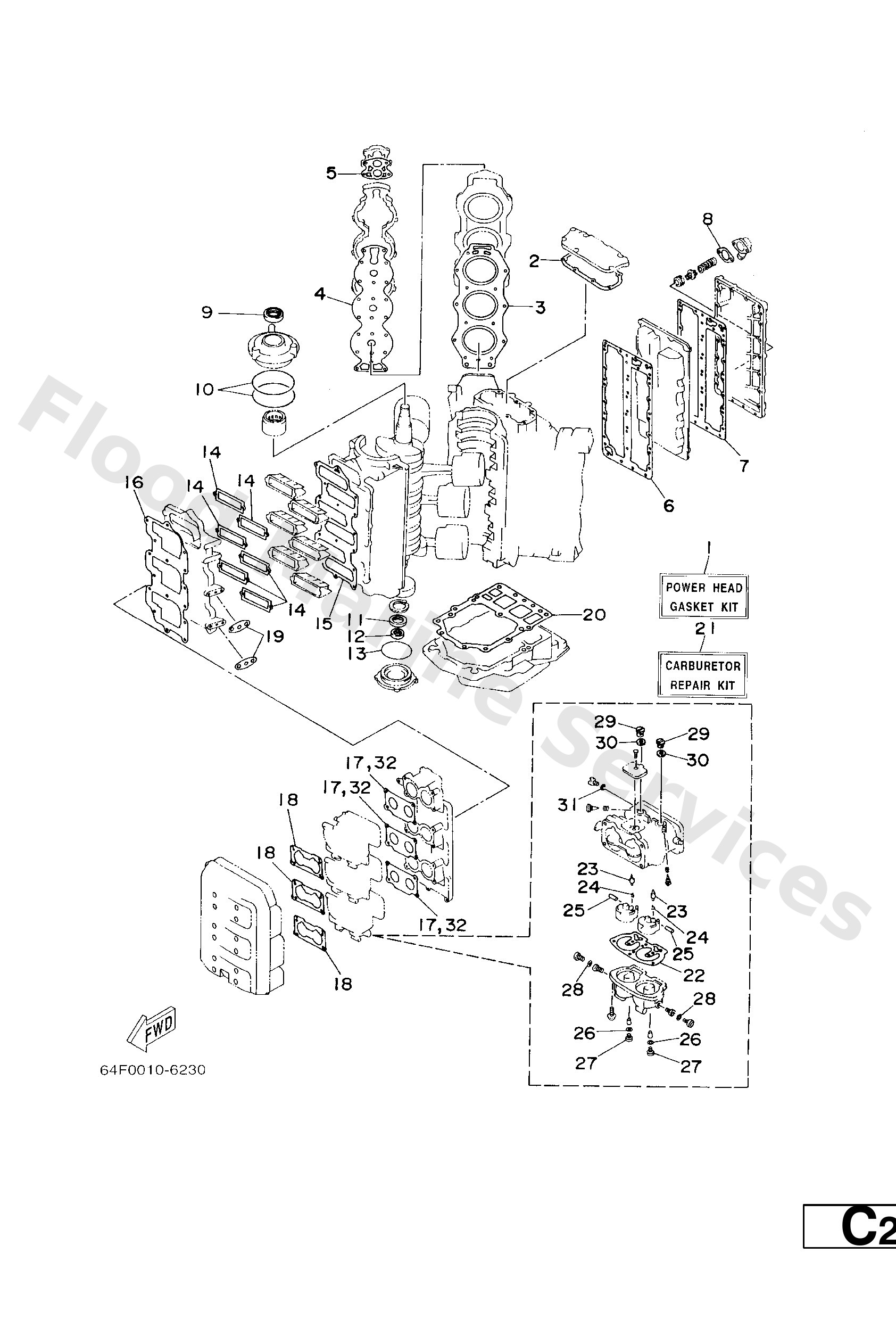

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
64F−W0001−00
Power head gasket kit
Loading…
↗
2
6E5−11381−A2
Gasket 1
Loading…
↗
3
6G5−11181−A2
Gasket, cylinder head 1
Loading…
↗
4
6G5−11193−A0
Gasket, head cover 1
Loading…
↗
5
688−12414−A1
Gasket, cover
Loading…
↗
6
6G5−41112−A1
Gasket, exhaust inner cover
Loading…
↗
7
6G5−41114−A0
Gasket, exhaust inner cover
Loading…
↗
8
6G5−11382−A1
Gasket 2
Loading…
↗
9
93102−40M14
Oil seal(61a)
Loading…
↗
10
93211−04001
O-ring
Loading…
↗
11
93102−35M13
Oil seal (6e5)
Loading…
↗
12
93101−22M15
Oil seal (6e5)
Loading…
↗
13
93210−74M35
O-ring (6e5)
Loading…
↗
14
6K7−13621−A1
Gasket, valve seat
Loading…
↗
15
6K7−13646−A2
Gasket, manifold 2
Loading…
↗
16
64E−13645−A0
Gasket, manifold 1
Loading…
↗
17
6E5−14198−A2
Gasket
Loading…
↗
18
6K7−14483−00
Gasket
Loading…
↗
19
650−24431−A0
Gasket,fuel pump
Loading…
↗
20
6G5−45113−A1
Gasket, upper casing
Loading…
↗
21
64D−W0093−01
Carburetor repair kit
Loading…
↗
22
64D−14384−01
Gasket, float chamber
Loading…
↗
23
6E5−14546−00
Valve, needle
Loading…
↗
24
6E5−14159−00
Clip
Loading…
↗
25
6E5−14386−02
Pin, float
Loading…
↗
26
61U−14959−00
Gasket
Loading…
↗
27
64D−14394−00
Valve, drain
Loading…
↗
28
6E5−14398−01
Gasket
Loading…
↗
29
6E5−14328−01
Plug
Loading…
↗
30
6E5−14979−00
Gasket
Loading…
↗
31
6J8−14959−00
Gasket, drin screw
Loading…
↗
