Yamaha Outboard Parts - REPAIR KIT 1 - 225GETO (2003) | Flood Marine

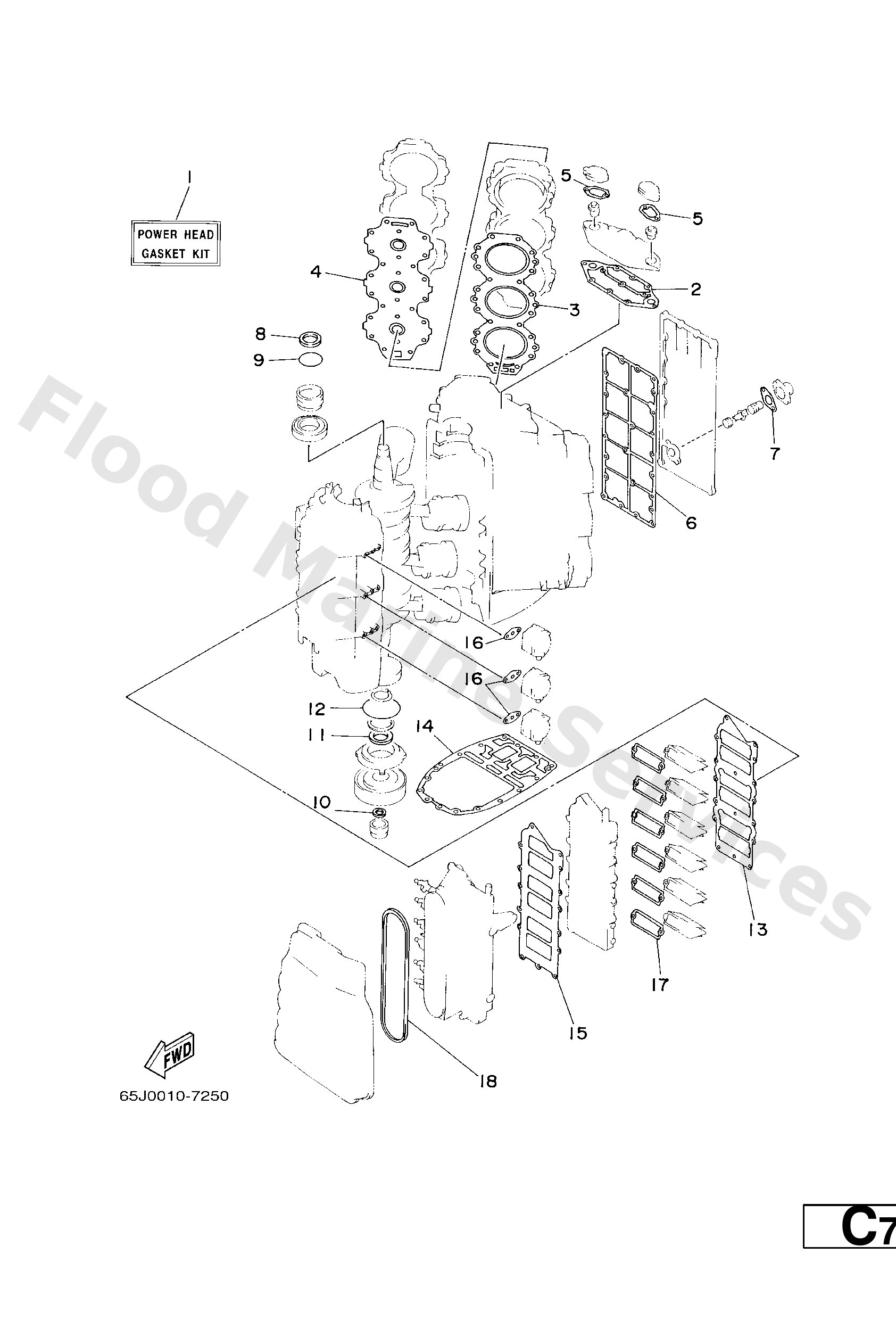

Diagram: REPAIR KIT 1

Diagram

Parts List

Reference
Description
Price


1
65L−W0001−02
Power head gasket kit
Loading…

↗
2
61A−11381−A0
Gasket 1
Loading…

↗
3
69L−11181−00
Gasket, cylinder head 1
Loading…

↗
4
61A−11193−A1
Gasket, head cover 1
Loading…

↗
5
61A−12414−A0
Gasket, cover
Loading…

↗
6
61A−41112−A0
Gasket, exhaust inner cover
Loading…

↗
7
6G5−11382−A1
Gasket 2
Loading…

↗
8
93102−40M38
Oil seal(61a)
Loading…

↗
9
93210−54M54
O-ring (6g1)
Loading…

↗
10
93104−22M07
Oil seal(61a)
Loading…

↗
11
93102−40M36
Oil seal
Loading…

↗
12
93210−81MA6
O-ring(61a)
Loading…

↗
13
65L−13645−00
Gasket, manifold 1
Loading…

↗
14
61A−45113−A0
Gasket, upper casing
Loading…

↗
15
65L−13646−00
Gasket, manifold 2
Loading…

↗
16
650−24431−A0
Gasket,fuel pump
Loading…

↗
17
61A−13621−A0
Gasket, valve seat
Loading…

↗
18
65L−14483−00
Gasket
Loading…

↗
