25MHB3 (2003)
REPAIR KIT 1

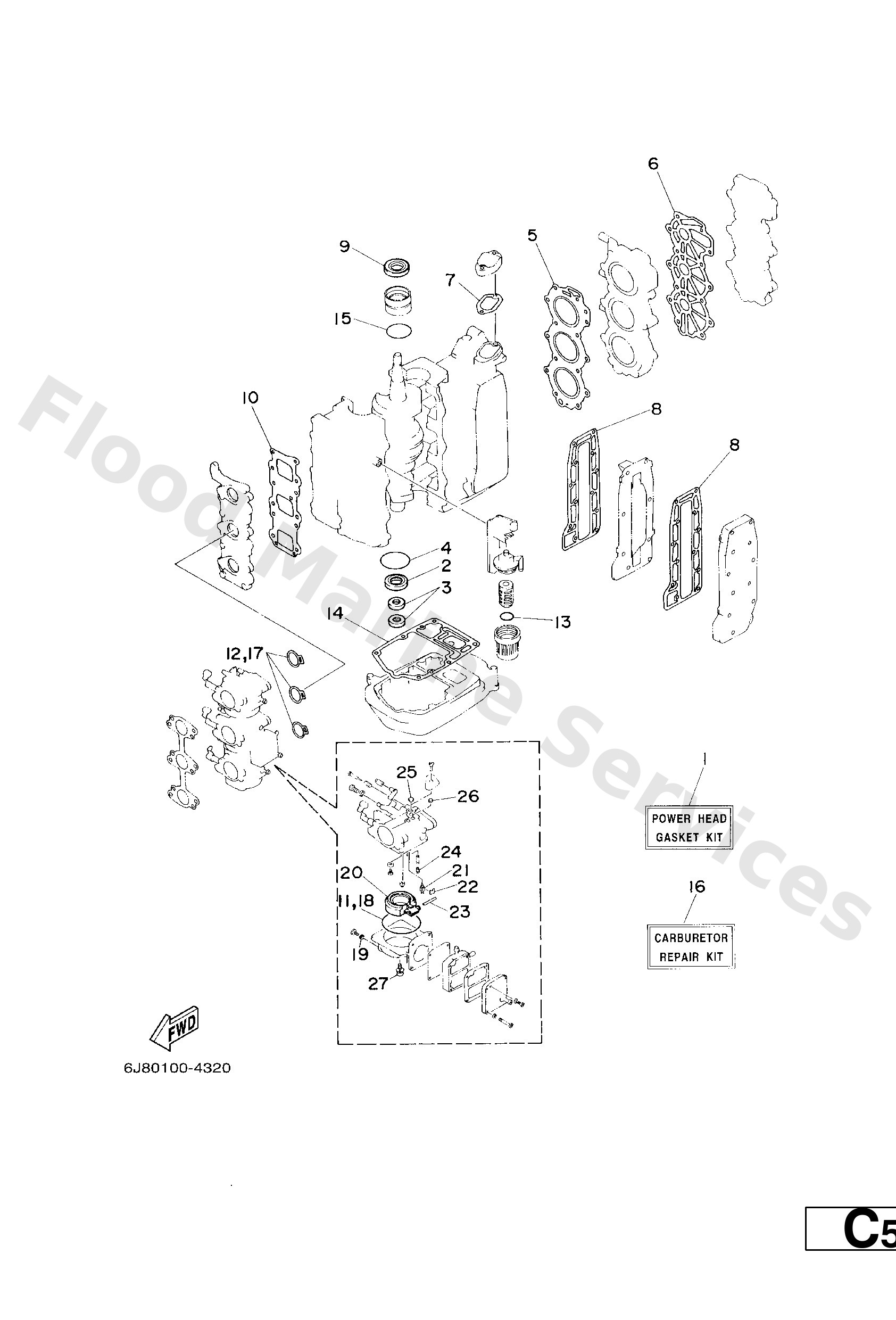

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
6J8−W0001−03
Powerhead gasket kit
Loading…
↗
2
93101−25M28
Oil seal(6j8)
Loading…
↗
3
93104−16M04
Oil seal(6a8)
Loading…
↗
4
93210−56M80
O-ring(6j8)
Loading…
↗
5
6J8−11181−A1
Gasket, cylinder head 1
Loading…
↗
6
6J8−11193−A1
Gasket, head cover 1
Loading…
↗
7
6J8−12414−A0
Gasket, cover
Loading…
↗
8
6J8−41114−A0
Gasket, exhaust outer cover
Loading…
↗
9
93102−26M27
Oil seal(6j8)
Loading…
↗
10
6J8−13621−00
Gasket, valve seat
Loading…
↗
11
6J8−14984−00
Gasket, float chamber
Loading…
↗
12
6J8−14198−00
Gasket
Loading…
↗
13
93210−32738
O-ring(1wg)
Loading…
↗
14
6J8−45113−A0
Gasket, upper casing
Loading…
↗
15
93210−42159
O-ring (647)
Loading…
↗
16
6J8−W0093−00
Carburetor rerair kit
Loading…
↗
19
6J8−14995−00
Gasket, drin screw
Loading…
↗
20
6J8−14985−00
Float
Loading…
↗
21
6J8−14546−00
Valve, needle
Loading…
↗
22
6J8−14159−00
Clip
Loading…
↗
23
6J8−14548−00
Pin, float arm
Loading…
↗
24
6J8−14966−00
Plug
Loading…
↗
25
6J8−14126−00
Plug
Loading…
↗
26
6J8−14118−00
Plug
Loading…
↗
27
97980−04112
Screw, pan head (686)
Loading…
↗
