30DMHO (1999)
REPAIR KIT 1

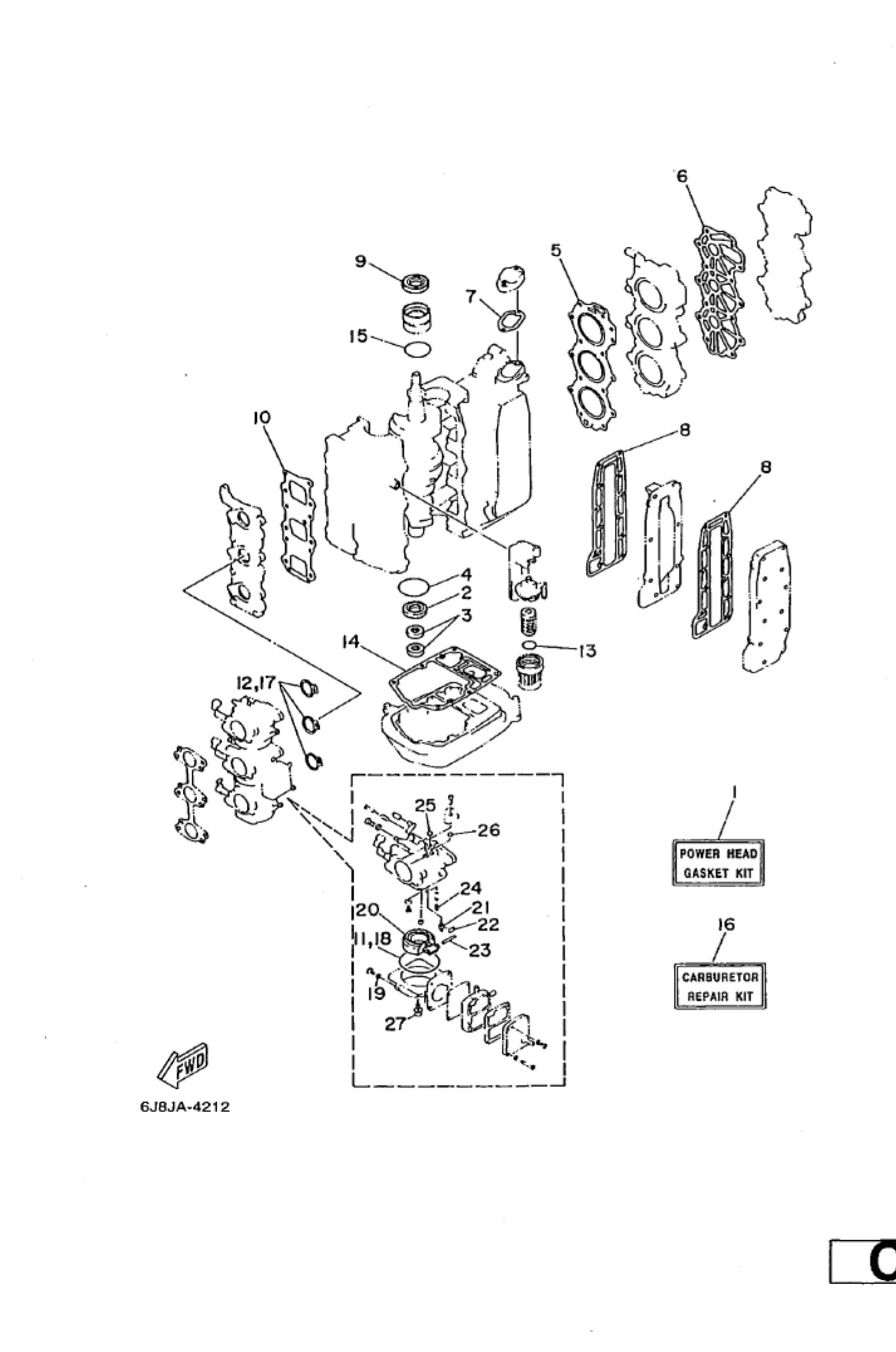

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
6J8W000103
11)
Powerhead gasket kit
Loading…
↗
2
9310125M28
[IRIKIE]
Oil seal(6j8)
Loading…
↗
3
9310416M04
2) 2| 2 2
Oil seal(6a8)
Loading…
↗
4
9321056M80
LIRIRIE
O-ring(6j8)
Loading…
↗
5
6J811181A1
[IRIKIE
Gasket, cylinder head 1
Loading…
↗
6
6lB11193A1
IRIE]
Gasket, Head Cover 1
Loading…
↗
7
60812414A0
RIE
Gasket, Cover
Loading…
↗
8
64841114A0
2| 2| 2| 2
Gasket, Exhaust Outer Cover
Loading…
↗
9
9310226M27
LURIEIE]
Oil seal(6j8)
Loading…
↗
10
6J81362100
Gasket, valve seat
Loading…
↗
12
681419800
sf 3| a
Gasket
Loading…
↗
13
9321032738
UEIRIR
O-ring(1wg)
Loading…
↗
14
6J845113A0
[IRIEIE!
Gasket, upper casing
Loading…
↗
15
9321042159
LRIEIR
O-ring (647)
Loading…
↗
17
6J81419800
3| 8 als
Gasket
Loading…
↗
19
6J81499500
Gasket, drin screw
Loading…
↗
23
6J31454800
HEE
Pin, Float Arm
Loading…
↗
24
6J81496600
HEE
Plug
Loading…
↗
24
6JBIA4212
‘Bouchon
Loading…
↗
25
6J81412600
HEE
Plug
Loading…
↗
27
9798004112
a3
Screw, pan head (686)
Loading…
↗
