30DMHO (2002)
REPAIR KIT 1

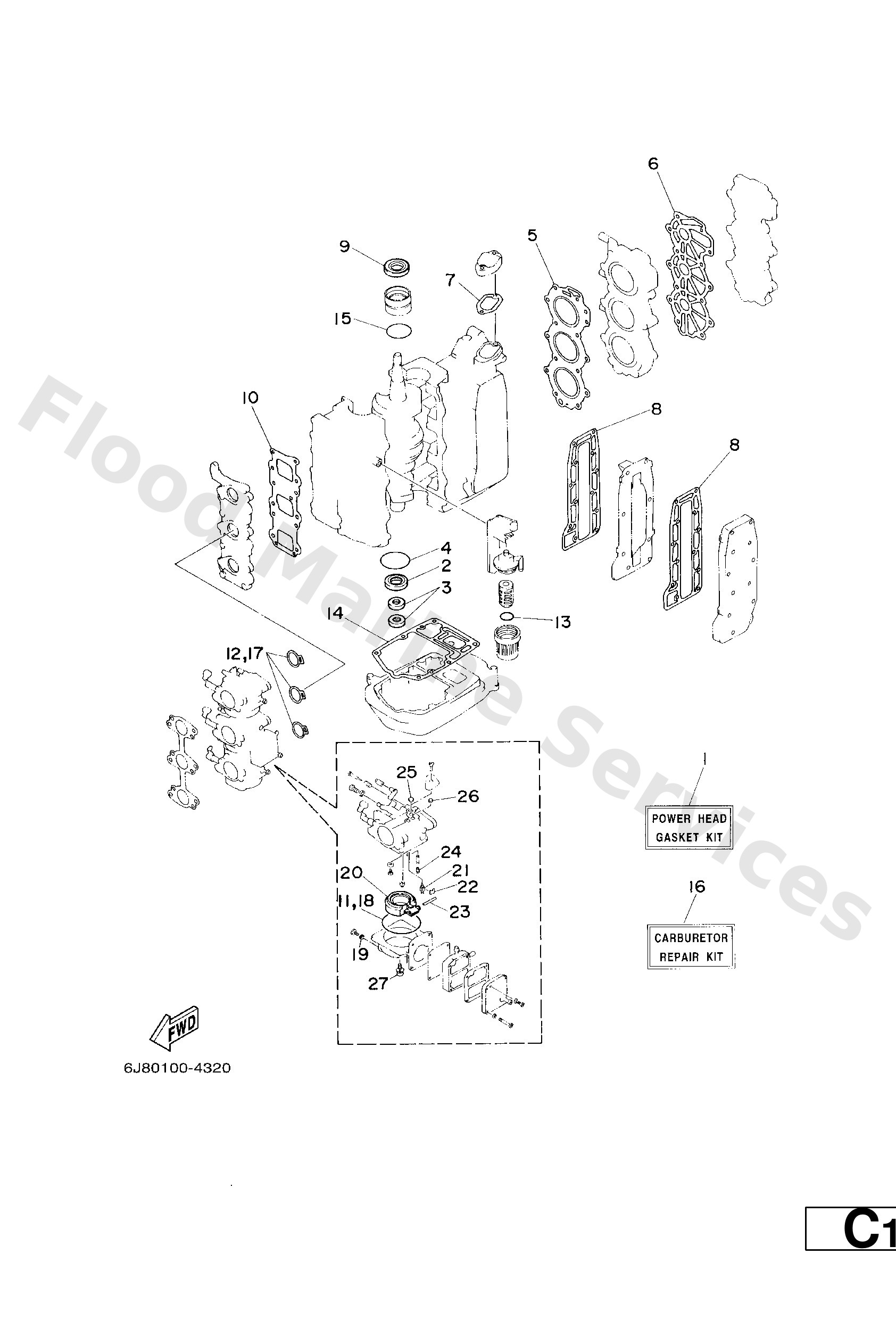

Diagram: REPAIR KIT 1
Parts List
Reference
Description
Price
1
6J8W000103
Powerhead gasket kit
Loading…
↗
2
9310125M28
Oil seal(6j8)
Loading…
↗
3
9310416M04
Oil seal(6a8)
Loading…
↗
4
9321056M80
O-ring(6j8)
Loading…
↗
5
6J811181A1
Gasket, cylinder head 1
Loading…
↗
6
6J811193A1
Gasket, head cover 1
Loading…
↗
7
6J812414A0
Gasket, cover
Loading…
↗
8
6J841114A0
Gasket, exhaust outer cover
Loading…
↗
9
9310226M27
Oil seal(6j8)
Loading…
↗
10
6J81362100
Gasket, valve seat
Loading…
↗
11
6J81498400
Gasket, float chamber
Loading…
↗
12
6J81419800
Gasket
Loading…
↗
13
9321032738
O-ring(1wg)
Loading…
↗
14
6J845113A0
Gasket, upper casing
Loading…
↗
15
9321042159
O-ring (647)
Loading…
↗
16
6J8W009300
Carburetor rerair kit
Loading…
↗
19
6J81499500
Gasket, drin screw
Loading…
↗
20
6J81498500
Float
Loading…
↗
21
6J81454600
Valve, needle
Loading…
↗
22
6J81415900
Clip
Loading…
↗
23
6J81454800
Pin, float arm
Loading…
↗
24
6J81496600
Plug
Loading…
↗
25
6J81412600
Plug
Loading…
↗
26
6J81411800
Plug
Loading…
↗
27
9798004112
Screw, pan head (686)
Loading…
↗
